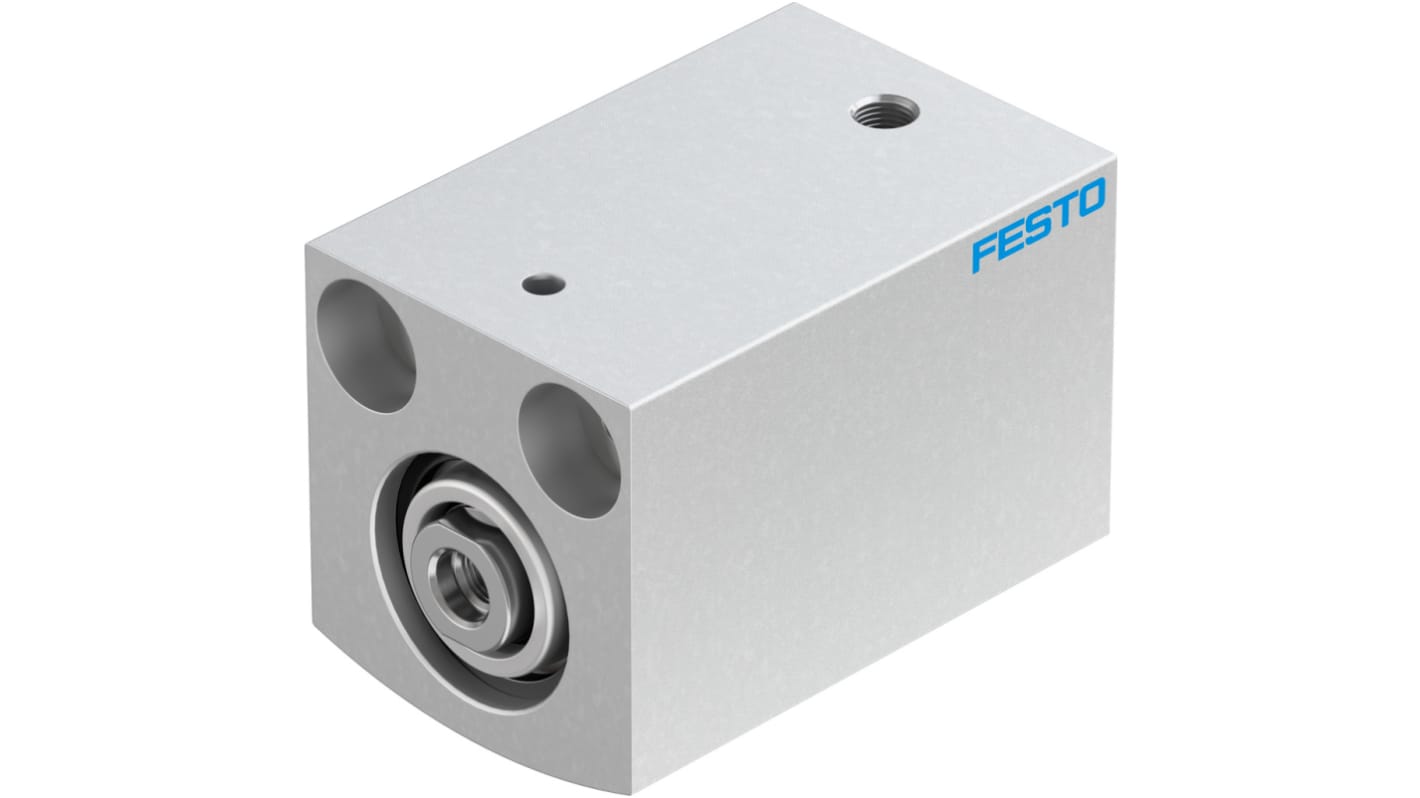

Festo Pneumatic Cylinder - 188133, 20mm Bore, 25mm Stroke, AEVC Series, Single Acting
- RS Stock No.:
- 121-5495
- Mfr. Part No.:
- AEVC-20-25-I-P
- Brand:
- Festo
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£40.29
(exc. VAT)
£48.35
(inc. VAT)
- RS Stock No.:
- 121-5495
- Mfr. Part No.:
- AEVC-20-25-I-P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | AEVC | |
Model Number p | 188133 | |
Bore | 20mm | |
Action | Single | |
Stroke | 25mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Dimensions | 34 x 32 x 49.5mm | |
Width | 32mm | |
Length | 49.5mm | |
Height | 34mm | |
Maximum Operating Pressure | 10 bar | |
VDMA Standard | VDMA24364-B1/B2-L | |
Maximum Operating Temperature | +80°C | |
Weight | 127g | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series AEVC | ||
Model Number p 188133 | ||
Bore 20mm | ||
Action Single | ||
Stroke 25mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Dimensions 34 x 32 x 49.5mm | ||
Width 32mm | ||
Length 49.5mm | ||
Height 34mm | ||
Maximum Operating Pressure 10 bar | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Maximum Operating Temperature +80°C | ||
Weight 127g | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo AEVC Series Pneumatic Cylinder, 25mm Stroke, -20 to 80°C Ambient Temperature - AEVC-20-25-I-P, Numeric Part Number: 188133
This AEVC pneumatic cylinder is designed for efficient operation in various automated applications. With a 20mm bore and a 25mm stroke, it offers compact performance in a 34x32x49.5mm size. Featuring elastic cushioning and a maximum operating pressure of 10 bar, it ensures smooth and reliable operation.
Features & Benefits
• 20mm bore for effective force utilisation
• 25mm stroke length for versatile applications
• Elastic cushioning reduces impact
• M5 pneumatic connection for easy integration
• Weighs only 127g for lightweight assembly
• 25mm stroke length for versatile applications
• Elastic cushioning reduces impact
• M5 pneumatic connection for easy integration
• Weighs only 127g for lightweight assembly
Applications
• Clamping tasks within retaining devices
• Compact automation solutions in limited spaces
• Electronics assembly
• Mechanical engineering for precise movements
• Packaging machinery for effective handling
• Compact automation solutions in limited spaces
• Electronics assembly
• Mechanical engineering for precise movements
• Packaging machinery for effective handling
Can it operate under extreme temperatures?
Yes, it functions between -20°C and +80°C.
Is it suitable for high-speed applications?
Yes, it provides rapid response under pressure.
