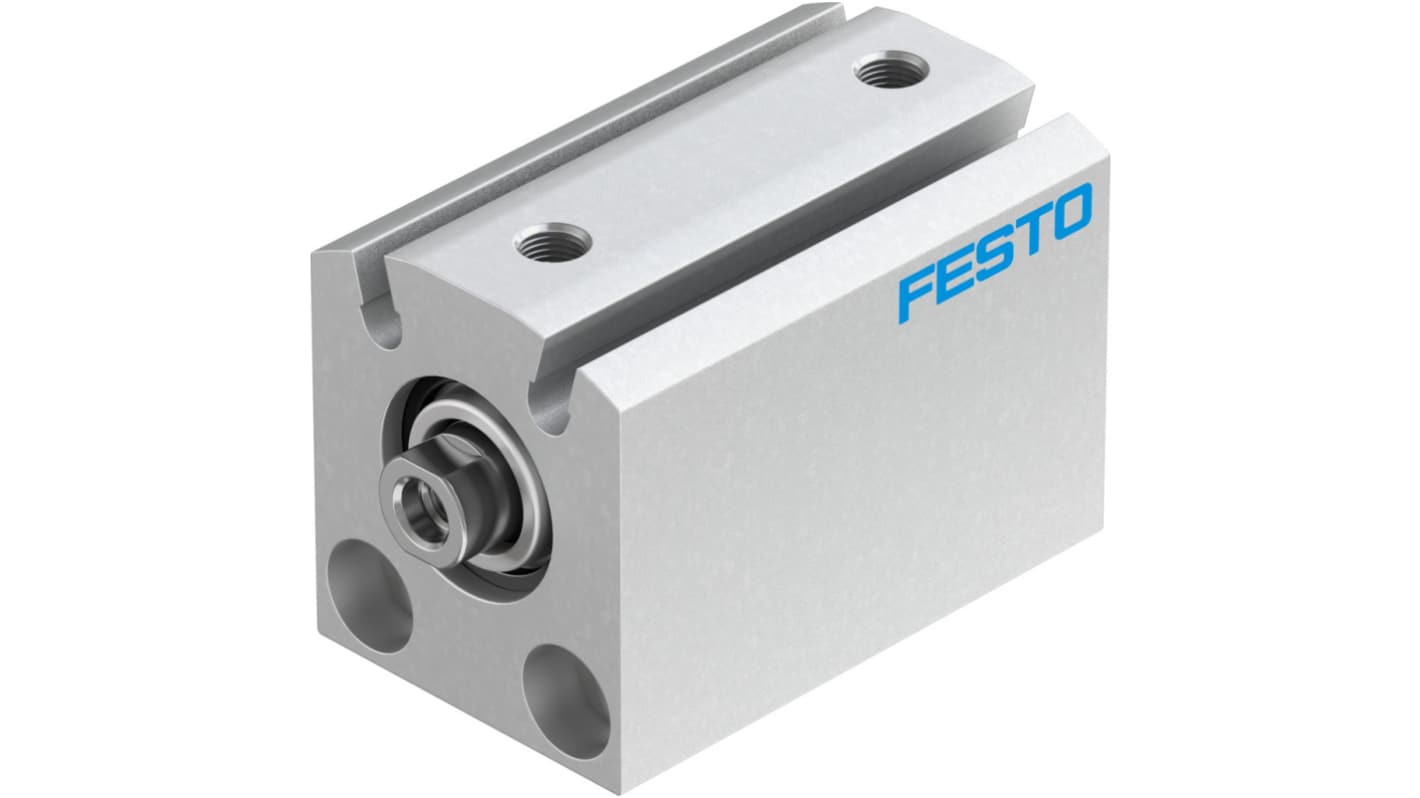

Festo Pneumatic Cylinder - 188110, 16mm Bore, 15mm Stroke, ADVC Series, Double Acting
- RS Stock No.:
- 121-5466
- Mfr. Part No.:
- ADVC-16-15-I-P-A
- Brand:
- Festo
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£43.25
(exc. VAT)
£51.90
(inc. VAT)
- RS Stock No.:
- 121-5466
- Mfr. Part No.:
- ADVC-16-15-I-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADVC | |
Model Number p | 188110 | |
Stroke | 15mm | |
Action | Double | |
Bore | 16mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Dimensions | 27 x 25 x 37mm | |
Length | 37mm | |
Height | 27mm | |
Width | 25mm | |
Maximum Operating Pressure | 10 bar | |
Test Weight | 69 g | |
Minimum Operating Temperature | -20°C | |
Weight | 97g | |
Maximum Operating Temperature | +80°C | |
VDMA Standard | 24364-B1/B2-L | |
Stroke Interval Weight | 4 g | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADVC | ||
Model Number p 188110 | ||
Stroke 15mm | ||
Action Double | ||
Bore 16mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Dimensions 27 x 25 x 37mm | ||
Length 37mm | ||
Height 27mm | ||
Width 25mm | ||
Maximum Operating Pressure 10 bar | ||
Test Weight 69 g | ||
Minimum Operating Temperature -20°C | ||
Weight 97g | ||
Maximum Operating Temperature +80°C | ||
VDMA Standard 24364-B1/B2-L | ||
Stroke Interval Weight 4 g | ||
- COO (Country of Origin):
- DE
Festo ADVC Series Pneumatic Cylinder, 15mm Stroke, 16mm Bore - ADVC-16-15-I-P-A, Numeric Part Number: 188110
This pneumatic cylinder from Festo is designed for versatility and efficiency in automation applications. Featuring a 15mm stroke and a 16mm bore, this compact pneumatic actuator is suitable for a range of tasks. It operates with double-acting functionality, ensuring effective performance in various mechanical and electrical processes. With dimensions of 27 x 25 x 37mm, the cylinder is a practical choice for confined spaces while maintaining robust performance.
Features & Benefits
• Double-acting design enables efficient forward and return strokes
• Elastic cushioning reduces impact and enhances service longevity
• M5 port connection simplifies installation and compatibility
• Operates effectively at a maximum pressure of 10 bar
• Ambient temperature tolerance from -20 °C to +80 °C ensures versatility
• Corrosion resistance class CRC 1 supports durability in varied environments
• Elastic cushioning reduces impact and enhances service longevity
• M5 port connection simplifies installation and compatibility
• Operates effectively at a maximum pressure of 10 bar
• Ambient temperature tolerance from -20 °C to +80 °C ensures versatility
• Corrosion resistance class CRC 1 supports durability in varied environments
Applications
• Utilised in automated assembly lines for precise control of components
• Employed in robotic arms for smooth and controlled movement
• Ideal for clamping and gripping in machinery
• Used with packaging machines to enhance handling processes
• Employed in robotic arms for smooth and controlled movement
• Ideal for clamping and gripping in machinery
• Used with packaging machines to enhance handling processes
What is the weight of the unit and how does it affect performance?
The product weighs 97 g, which contributes to its efficiency and speed, allowing for quick operations without excessive inertia during movements.
What materials are used in the cylinder's construction, and how do these affect durability?
The cylinder features a housing made from anodised aluminium alloy, which enhances its resistance to wear and corrosion. The high-alloy steel piston rod ensures strength and longevity under operating conditions.
Is lubricated operation necessary, and what are the implications?
Lubricated operation is possible and often required, which can enhance the lifespan of seals and improve the overall performance of the cylinder. It's essential for ensuring smooth movement and reducing wear.
How does the cushion feature contribute to the performance of this pneumatic cylinder?
The elastic cushioning at both ends of the cylinder mitigates impact during stroke completion, resulting in quieter operation and reduced mechanical stress. This design increases the overall lifespan of the unit by minimising wear.
FESTO Short Stroke Cylinders
