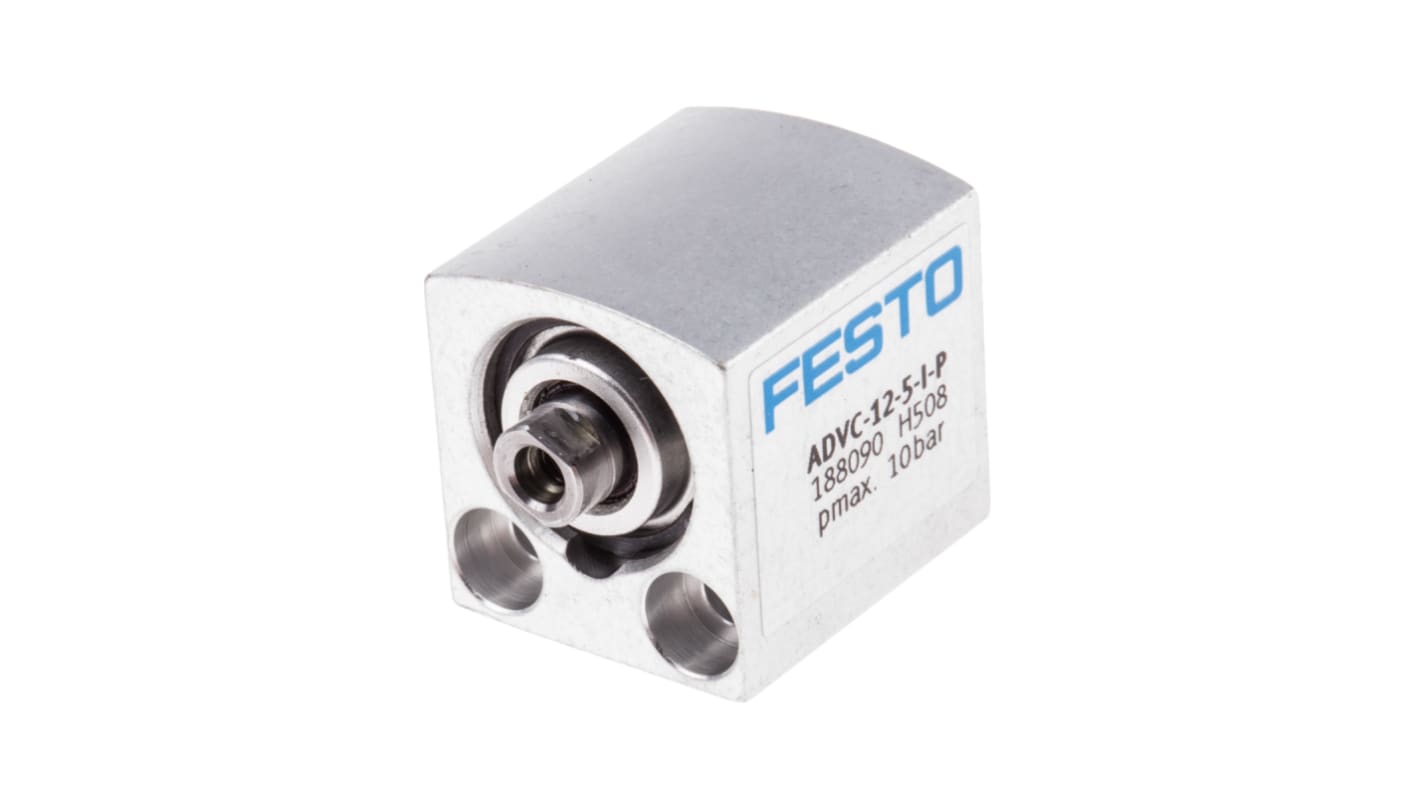

Festo Pneumatic Cylinder - 188090, 12mm Bore, 5mm Stroke, ADVC Series, Double Acting
- RS Stock No.:
- 121-5463
- Mfr. Part No.:
- ADVC-12-5-I-P
- Brand:
- Festo
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£35.39
(exc. VAT)
£42.47
(inc. VAT)
- RS Stock No.:
- 121-5463
- Mfr. Part No.:
- ADVC-12-5-I-P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Stroke | 5mm | |
| Bore | 12mm | |
| Action | Double | |
| Manufacturer Series | ADVC | |
| Length | 27mm | |
| Pneumatic Connection | M5 | |
| Piston Rod Thread Gender | Female | |
| Cushioning Type | Elastic | |
| Dimensions | 22 x 20 x 27mm | |
| Width | 20mm | |
| Absolute Maximum Pressure | 10bar | |
| Maximum Operating Pressure | 10 bar | |
| Height | 22mm | |
| Minimum Operating Temperature | -20°C | |
| Weight | 28g | |
| VDMA Standard | VDMA24364-B1/B2-L | |
| Maximum Operating Temperature | +80°C | |
| ISO Standard | ISO 8573-1:2010 | |
| Model Number p | 188090 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Stroke 5mm | ||
Bore 12mm | ||
Action Double | ||
Manufacturer Series ADVC | ||
Length 27mm | ||
Pneumatic Connection M5 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Dimensions 22 x 20 x 27mm | ||
Width 20mm | ||
Absolute Maximum Pressure 10bar | ||
Maximum Operating Pressure 10 bar | ||
Height 22mm | ||
Minimum Operating Temperature -20°C | ||
Weight 28g | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Maximum Operating Temperature +80°C | ||
ISO Standard ISO 8573-1:2010 | ||
Model Number p 188090 | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, Double Acting, 1 to 10 Bar Operating Pressure - ADVC-12-5-I-P
Ensure your system never misses a stroke with this pneumatic cylinder from Festo. It produces the linear motion needed for precision tasks such as clamping and positioning. As it has dimensions of 27 (L) x 20 (W) x 22mm (H), it's a big hitter in a small package and lets you achieve maximum productivity in confined spaces. The unit's double-acting design advances and retracts the piston from both ends, making compressed air work twice as hard for optimum efficiency. Shake off any vibration issues thanks to its flexible polymer end-cushioning, which softens impact to achieve smooth performance.
Features & Benefits
• Double-ended cushioning limits wear and boosts durability
• Machined slots on the body make installing proximity sensors easy
• Flexible mounting in any position to suit the needs of your application
• Broad operating temperature range between -20°C and +80°C for use in challenging conditions
• Machined slots on the body make installing proximity sensors easy
• Flexible mounting in any position to suit the needs of your application
• Broad operating temperature range between -20°C and +80°C for use in challenging conditions
Applications
• Drilling operations
• Automated assembly and packaging lines
• Lifting equipment
• Transport industry
• Automated assembly and packaging lines
• Lifting equipment
• Transport industry
What's the stroke length of this pneumatic cylinder?
This cylinder has a 5mm stroke length, so it's suitable for precision tasks.
What type of connector does this pneumatic cylinder have?
This pneumatic cylinder has an integrated M5 port connection, making it compatible with commonly used equipment.
FESTO Short Stroke Cylinders
