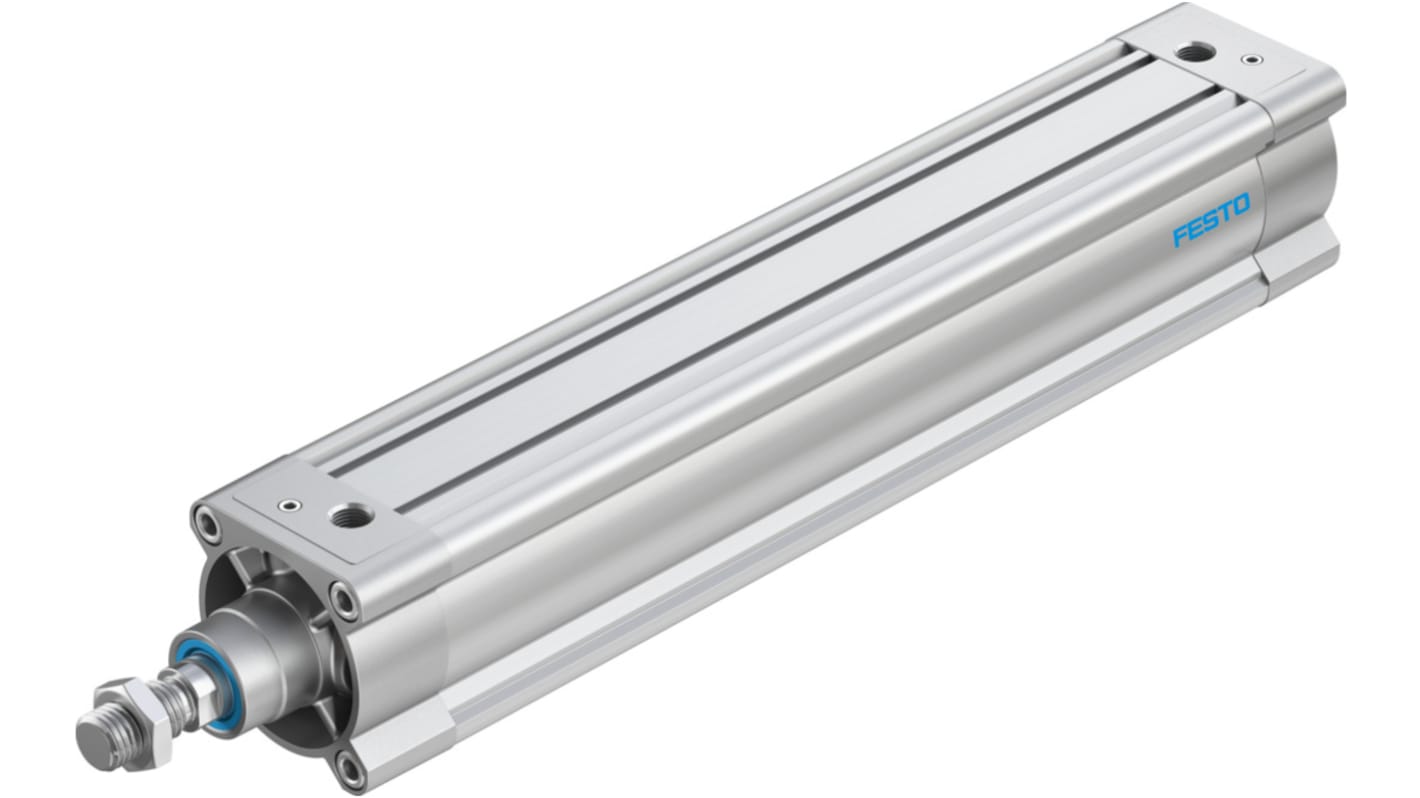

Festo Pneumatic Piston Rod Cylinder - 1383343, 80mm Bore, 400mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5221
- Mfr. Part No.:
- DSBC-80-400-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£323.69
(exc. VAT)
£388.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £323.69 |
*price indicative
- RS Stock No.:
- 121-5221
- Mfr. Part No.:
- DSBC-80-400-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1383343 | |
Bore | 80mm | |
Stroke | 400mm | |
Action | Double | |
Port Connection | G 3/8 | |
Pneumatic Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 617.6 x 93 x 93mm | |
Length | 617.6mm | |
Width | 93mm | |
Height | 93mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Weight | 2.7kg | |
VDMA Standard | 24562 | |
Test Weight | 2660 g @ 0 mm Stroke | |
Stroke Interval Weight | 92 g @ 10 mm Stroke | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383343 | ||
Bore 80mm | ||
Stroke 400mm | ||
Action Double | ||
Port Connection G 3/8 | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 617.6 x 93 x 93mm | ||
Length 617.6mm | ||
Width 93mm | ||
Height 93mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Weight 2.7kg | ||
VDMA Standard 24562 | ||
Test Weight 2660 g @ 0 mm Stroke | ||
Stroke Interval Weight 92 g @ 10 mm Stroke | ||
- COO (Country of Origin):
- HU
Festo DSBC Series Pneumatic Piston Rod Cylinder, 400mm Stroke, 80mm Bore - DSBC-80-400-PPVA-N3, Numeric Part Number: 1383343
This pneumatic piston rod cylinder is designed for efficient operation in automated industrial environments. With a stroke length of 400mm and a bore of 80mm, it enhances performance in demanding mechanical applications. Its double-acting mechanism ensures reliability, while compliance with ISO 15552 standards offers flexibility for integration into a variety of systems.
Features & Benefits
• Adjustable pneumatic cushioning provides smoother operation
• Efficient performance with a maximum pressure of 12 bar
• Easy mounting using female thread or compatible accessories
• Compliance with VDMA 24562 for enhanced reliability
• G 3/8 pneumatic connection ensures versatile usage
• Efficient performance with a maximum pressure of 12 bar
• Easy mounting using female thread or compatible accessories
• Compliance with VDMA 24562 for enhanced reliability
• G 3/8 pneumatic connection ensures versatile usage
Applications
• Automation systems requiring precise positioning
• Robotics applications involving smooth linear motion
• Machinery operating in moderate corrosion environments
• Assembly lines demanding dependable double-acting functionality
• Pneumatic systems supporting compressed air processes
• Robotics applications involving smooth linear motion
• Machinery operating in moderate corrosion environments
• Assembly lines demanding dependable double-acting functionality
• Pneumatic systems supporting compressed air processes
What type of operating medium is best for use?
Compressed air adhering to ISO 8573-12010 is recommended for optimal performance.
What is the impact energy in end positions?
The impact energy at the end positions is 1.8 J, ensuring safe and reliable operation.
