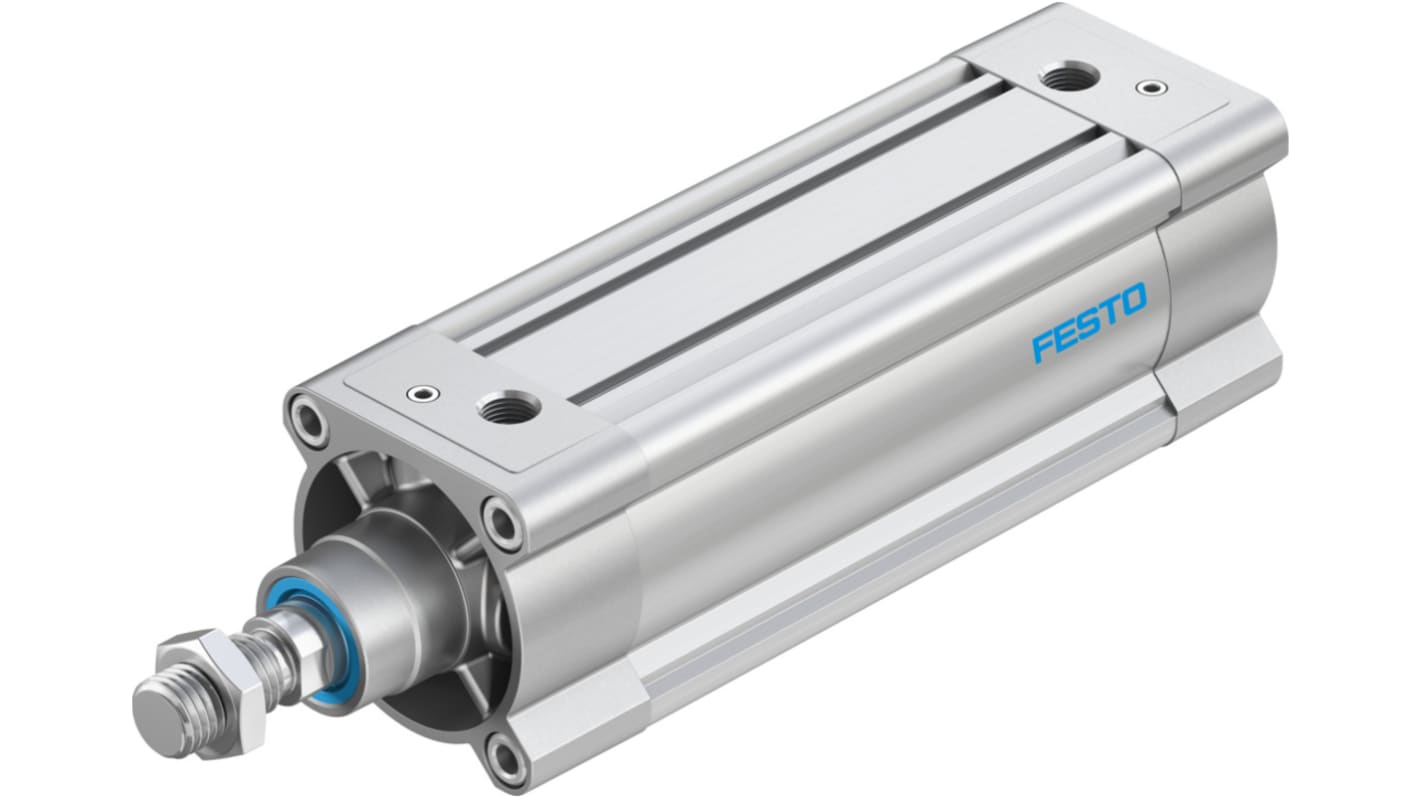

Festo Pneumatic Piston Rod Cylinder - 1383339, 80mm Bore, 160mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5213
- Mfr. Part No.:
- DSBC-80-160-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£282.81
(exc. VAT)
£339.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £282.81 |
*price indicative
- RS Stock No.:
- 121-5213
- Mfr. Part No.:
- DSBC-80-160-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1383339 | |
Bore | 80mm | |
Action | Double | |
Stroke | 160mm | |
Pneumatic Connection | G 3/8 | |
Port Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 377.6 x 93 x 93mm | |
Length | 377.6mm | |
Width | 93mm | |
Height | 93mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Weight | 2.7kg | |
Maximum Operating Temperature | +80°C | |
VDMA Standard | 24562 | |
Stroke Interval Weight | 92 g @ 10 mm Stroke | |
Test Weight | 2660 g @ 0 mm Stroke | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383339 | ||
Bore 80mm | ||
Action Double | ||
Stroke 160mm | ||
Pneumatic Connection G 3/8 | ||
Port Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 377.6 x 93 x 93mm | ||
Length 377.6mm | ||
Width 93mm | ||
Height 93mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Weight 2.7kg | ||
Maximum Operating Temperature +80°C | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 92 g @ 10 mm Stroke | ||
Test Weight 2660 g @ 0 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 160mm Stroke, 80mm Bore - DSBC-80-160-PPVA-N3, Numeric Part Number: 1383339
This pneumatic piston rod cylinder delivers reliable actuation with a double-acting mechanism, making it ideal for a range of industrial applications. Its ISO 15552-compliant design and ability to handle high pressures enhance its performance in challenging environments.
Features & Benefits
• Adjustable pneumatic cushioning for smoother operations and extended service life
• High operating pressure of up to 12 bar ensures durability
• Lightweight design to reduce system strain
• Male-threaded piston rod end simplifies mounting and integration
• High operating pressure of up to 12 bar ensures durability
• Lightweight design to reduce system strain
• Male-threaded piston rod end simplifies mounting and integration
Applications
• Automated machinery requiring precise linear motion
• Material handling systems for robust actuation
• Assembly line automation to enhance productivity
• Material handling systems for robust actuation
• Assembly line automation to enhance productivity
Can it function in outdoor environments?
Yes, it is designed to operate effectively within the specified temperature range.
How is position detection implemented?
Position detection can be achieved using a proximity switch.
What mounting options are available for this cylinder?
It can be mounted via a female thread or with compatible accessories.
