Festo Pneumatic Cylinder - 559285, 25mm Bore, 80mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4691
- Mfr. Part No.:
- DSNU-25-80-PPS-A
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£67.44
(exc. VAT)
£80.93
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 40 left, ready to ship
- Plus 12 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £67.44 |
| 5 - 9 | £64.74 |
| 10 + | £62.03 |
*price indicative
- RS Stock No.:
- 121-4691
- Mfr. Part No.:
- DSNU-25-80-PPS-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSNU | |
| Model Number p | 559285 | |
| Bore | 25mm | |
| Stroke | 80mm | |
| Action | Double | |
| Port Connection | G 1/8 | |
| Pneumatic Connection | G 1/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Air | |
| Dimensions | 27 x 221.5mm | |
| Diameter | 27mm | |
| Length | 221.5mm | |
| Maximum Operating Pressure | 10 bar | |
| ISO Standard | ISO 6432 | |
| Minimum Operating Temperature | -20°C | |
| Weight | 326g | |
| VDMA Standard | VDMA24364-B1/B2-L | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 559285 | ||
Bore 25mm | ||
Stroke 80mm | ||
Action Double | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 27 x 221.5mm | ||
Diameter 27mm | ||
Length 221.5mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -20°C | ||
Weight 326g | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE

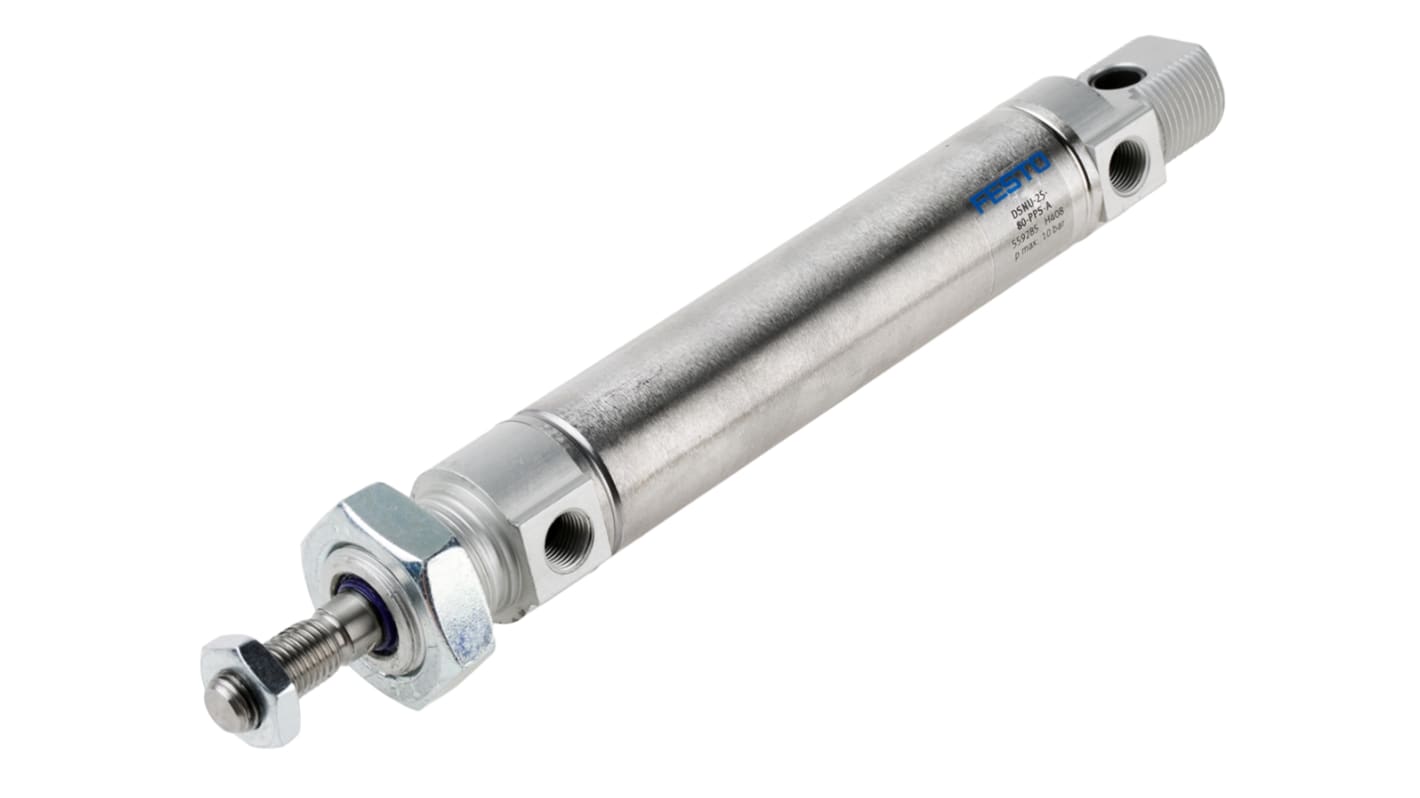

Festo Pneumatic Cylinder, G1/8 Port Connection, Stainless Steel Piston Rod - DSNU-25-80-PPS-A
Keep your system running smoothly with this pneumatic cylinder from Festo. As a double-acting device, it has a port at each end to take in compressed media, which gives you control of the stroke in both directions. Self-adjusting air cushioning uses a special piston in addition to the main one to vent the air cushion. This saves you time and effort while guarding your set-up against shock and vibration. The piston rod and cylinder barrel are made from high-alloy steel to stand up to corrosion and give you a long service life.
Features & Benefits
• Safe to use in demanding settings, thanks to an operating temperature range between -20°C and +80°C
• Wide operating pressure between 1 and 10 bar for flexible use
• 80mm stroke makes it ideal for short-range movement
• Wide operating pressure between 1 and 10 bar for flexible use
• 80mm stroke makes it ideal for short-range movement
Applications
• Automated assembly lines
• Agricultural machinery
• Material handling
• Agricultural machinery
• Material handling
How does self-adjusting air cushioning work?
This type of cushioning automatically regulates the damping in pneumatic cylinders and prevents shock and vibration caused by the back-and-forth motion of the piston. The air cushioning adjusts automatically in response to varying loads and speeds, keeping motion smooth and controlled without the need for manual tweaks.
