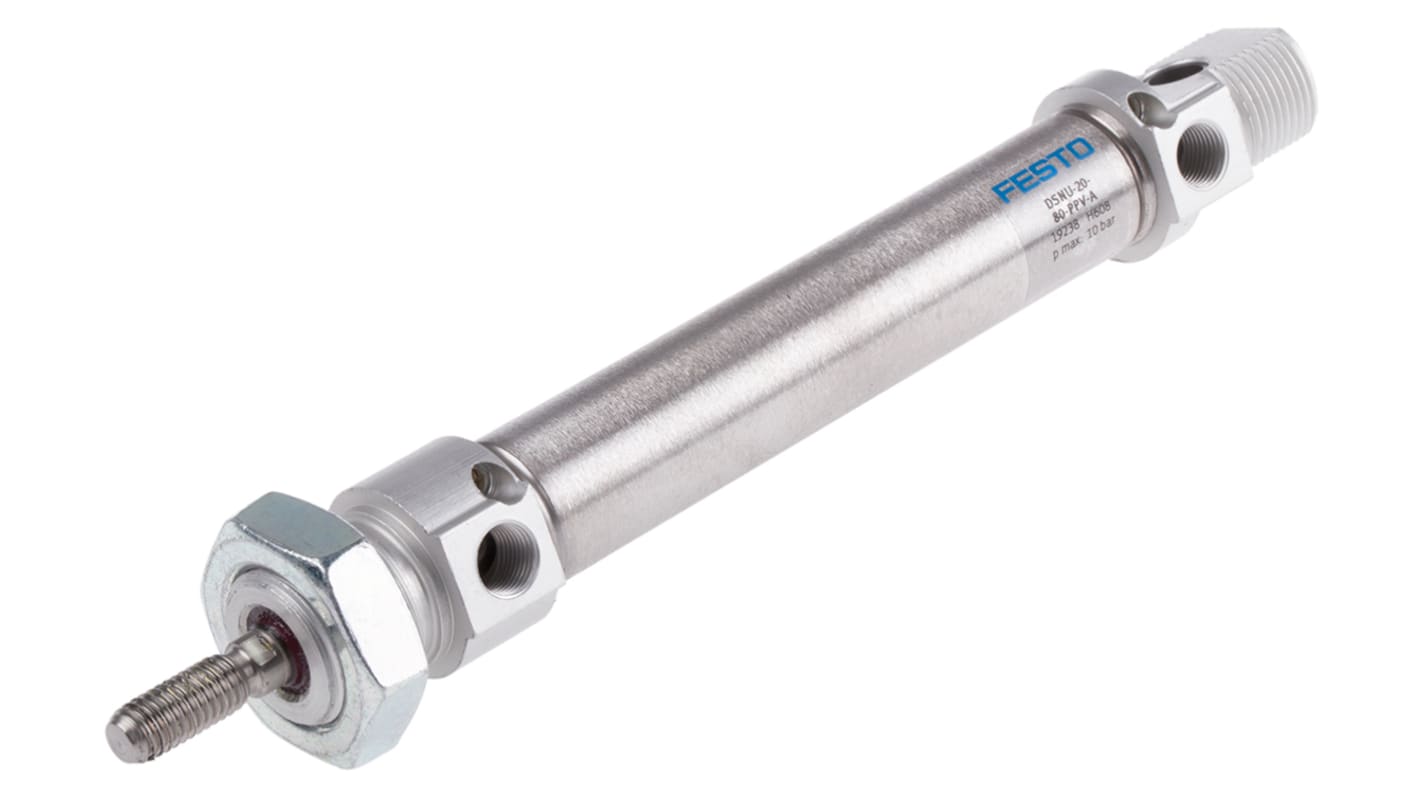

Festo Pneumatic Cylinder - 19238, 20mm Bore, 80mm Stroke, DSNU Series, Double Acting

View this category
Bulk discount available

Subtotal (1 unit)*

£64.86

(exc. VAT)

£77.83

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 2 unit(s) shipping from 27 October 2025
  • Plus 17 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£64.86
5 - 9£62.26
10 +£59.68

*price indicative

RS Stock No.:
121-4647
Mfr. Part No.:
DSNU-20-80-PPV-A
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Manufacturer Series

DSNU

Model Number p

19238

Stroke

80mm

Bore

20mm

Action

Double

Pneumatic Connection

G 1/8

Port Connection

G 1/8

Piston Rod Thread Gender

Male

Cushioning Type

Pneumatic Cushioning

Dimensions

27 x 212mm

Diameter

27mm

Length

212mm

Maximum Operating Pressure

10 bar

ISO Standard

6432

VDMA Standard

24364

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-20°C

Weight

244.4g

COO (Country of Origin):
DE

Festo Pneumatic Cylinder, Single-Ended Piston Rod, 212mm Overall Length - DSNU-20-80-PPV-A


Pick and place with precision using this Festo pneumatic cylinder. A constant output force through its entire stroke makes it just what you need for accurate automated positioning tasks. Air cushioning on each end of its piston rod helps to increase its lifespan, as it minimises the impact of shock and vibration. The cylinder rod and piston barrel are made from high-alloy steel to resist corrosion. This flexible unit can be mounted in position, so you can install it as necessary to meet the needs of your pneumatic circuit.

Features & Benefits


• Nitrile rubber seals withstand high pressure of up to 10 bar for use in demanding pneumatic circuits
• Broad operating temperature range between -20°C and +80°C to handle extreme settings
• Tough wrought aluminium alloy cover to resist wear and abrasion, offering an extended service life

Applications


• Medical and pharmaceutical industries
• Mining and minerals processing
• Agricultural machinery

How big is this pneumatic cylinder?


The component has a length of 212mm and a diameter of 27mm. Its compact size means you can downsize on equipment, reducing power consumption and increasing efficiency.
