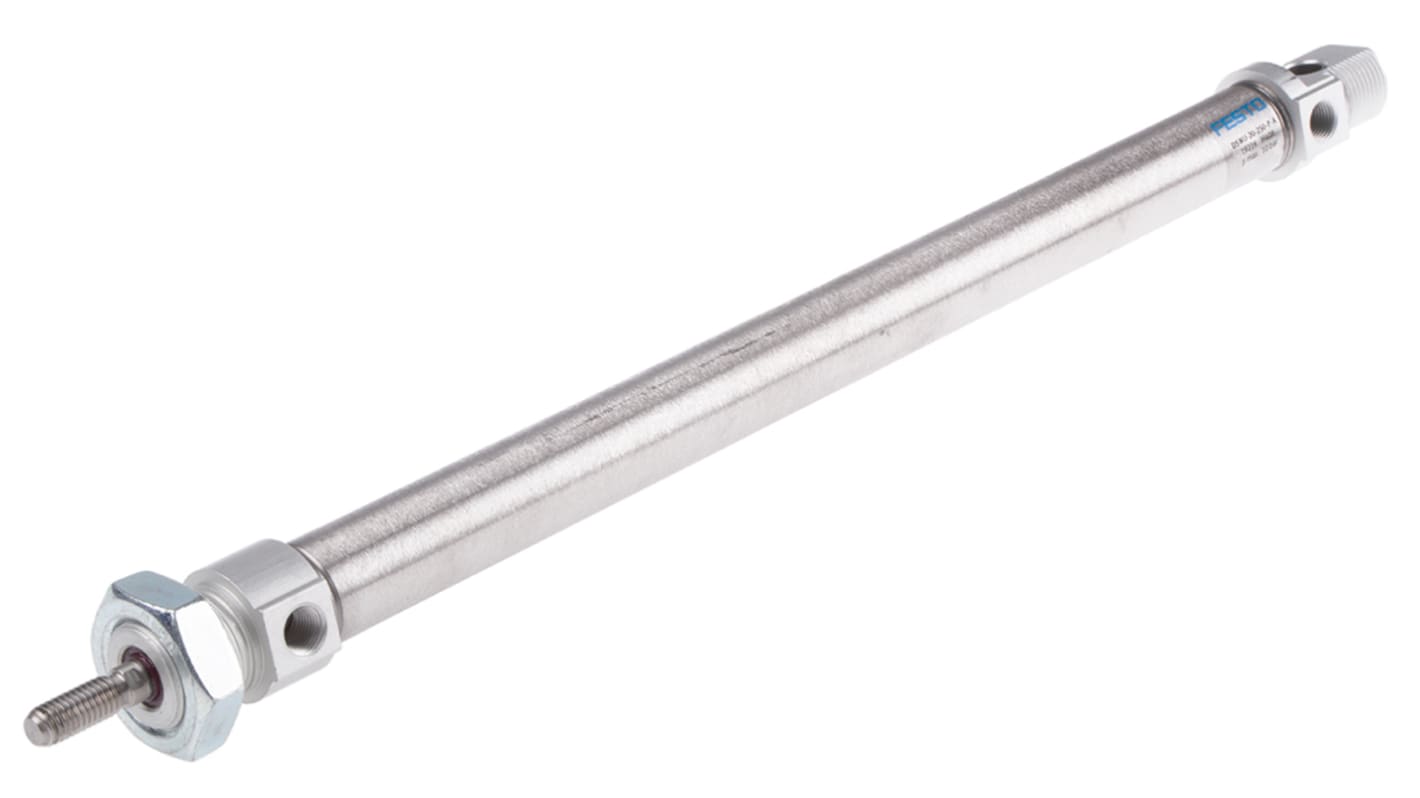

Festo Pneumatic Cylinder - 19216, 20mm Bore, 250mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4382
- Mfr. Part No.:
- DSNU-20-250-P-A
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£60.37
(exc. VAT)
£72.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £60.37 |
5 - 9 | £57.94 |
10 + | £55.54 |
*price indicative
- RS Stock No.:
- 121-4382
- Mfr. Part No.:
- DSNU-20-250-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 19216 | |
Bore | 20mm | |
Stroke | 250mm | |
Action | Double | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Dimensions | 27 x 382mm | |
Length | 382mm | |
Diameter | 27mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 6432 | |
VDMA Standard | 24364 | |
Maximum Operating Temperature | +80°C | |
Weight | 366.8g | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 19216 | ||
Bore 20mm | ||
Stroke 250mm | ||
Action Double | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Dimensions 27 x 382mm | ||
Length 382mm | ||
Diameter 27mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 6432 | ||
VDMA Standard 24364 | ||
Maximum Operating Temperature +80°C | ||
Weight 366.8g | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, Stainless Steel Piston Rod, 250mm Stroke - DSNU-20-250-P-A
Move small parts with precision using this pneumatic cylinder from Festo. The 10mm-stroke unit has a simple three-component design to give you optimal performance in the long term. Elastomer cushioning at both ends makes this type of cylinder an ideal option for moving small loads at low speeds. The cushioning absorbs the impact of the piston to minimise shock and impact stress on your system. As you won't need to worry about making adjustments, you're free to focus on other tasks.
Features & Benefits
• Double-acting cyclinder gives you control over the stroke in both directions
• Stainless steel piston rod resists corrosion for smooth running and a long service life
• Safe to use in harsh industrial settings, thanks to an operating temperature range of -20°C to +80°C
• Stainless steel piston rod resists corrosion for smooth running and a long service life
• Safe to use in harsh industrial settings, thanks to an operating temperature range of -20°C to +80°C
Applications
• Factory automation
• Powder coating
• Silk-screen printing
• Powder coating
• Silk-screen printing
What types of cushioning do pneumatic cylinders have?
Pneumatic cylinders generally come with mechanical or adjustable cushioning. This cylinder has mechanical cushioning, which uses elastomers to absorb the impact of the piston at both ends. It's a simple and effective option for short strokes, low speeds and light loads. Adjustable pneumatic cushioning offers greater shock absorption than mechanical cushioning and can be manually altered to suit your needs.
