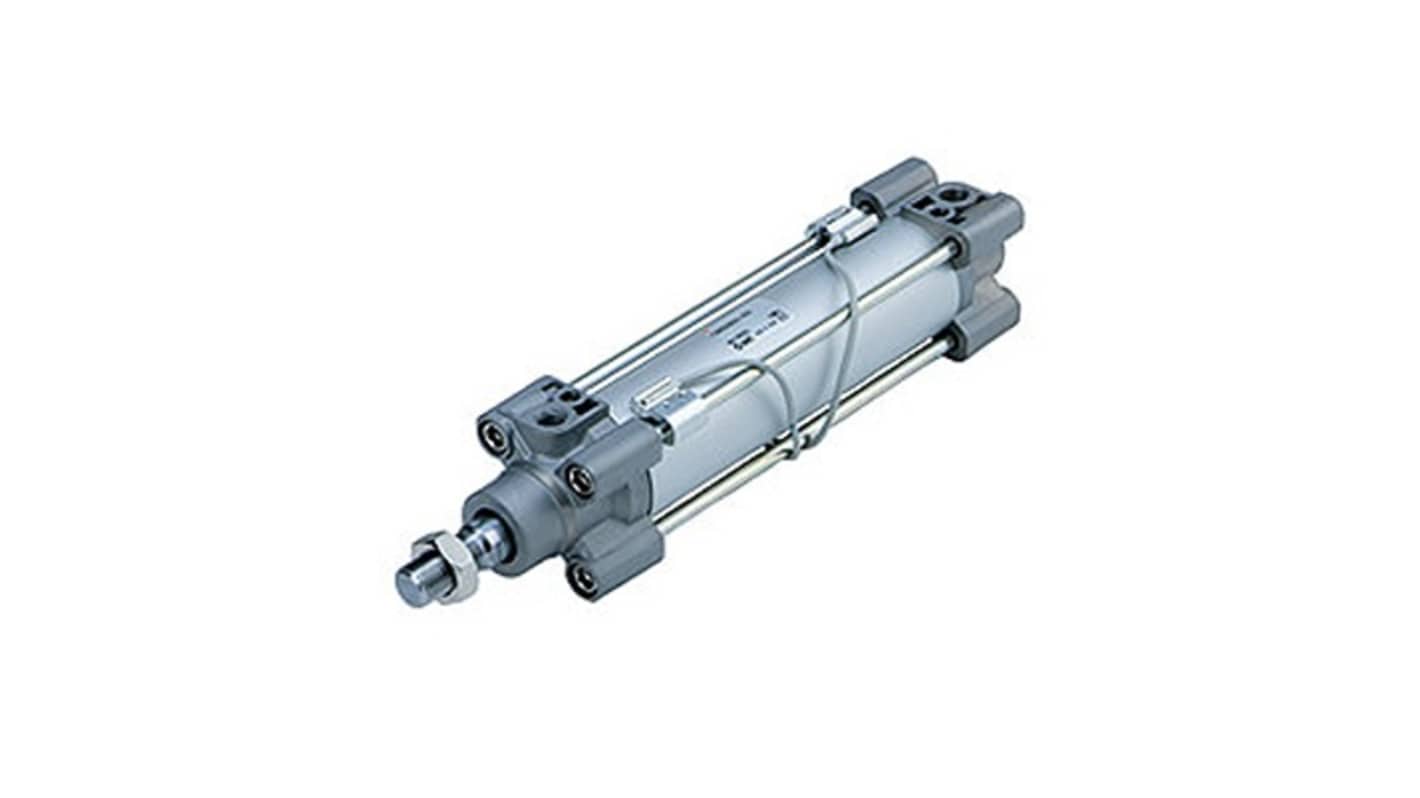

SMC Double Acting Cylinder - C96SDB125-565, 125mm Bore, 565mm Stroke, C96 Series, Double Acting
- RS Stock No.:
- 611-515
- Mfr. Part No.:
- C96SDB125-565
- Brand:
- SMC
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 611-515
- Mfr. Part No.:
- C96SDB125-565
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | C96 | |
Model Number p | C96SDB125-565 | |
Bore | 125mm | |
Action | Double | |
Stroke | 565mm | |
Port Connection | G 1/2 | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series C96 | ||
Model Number p C96SDB125-565 | ||
Bore 125mm | ||
Action Double | ||
Stroke 565mm | ||
Port Connection G 1/2 | ||
- COO (Country of Origin):
- CZ
The SMC Tie Rod Cylinder conforms to ISO 15552 standards. The Series C96 cylinders are available with either a single or double rod and come in 6 bore sizes, ranging from 32mm to 125mm. These cylinders feature high-accuracy covers and tie rod nuts that enhance mounting precision and extend their lifespan. By improving the bushing and piston rod precision while reducing tolerances, the deflection of the piston rod is significantly minimized, ensuring more reliable and efficient operation.
Improved handling performance
Weight reduced
Cycle time shortened
Weight reduced
Cycle time shortened
