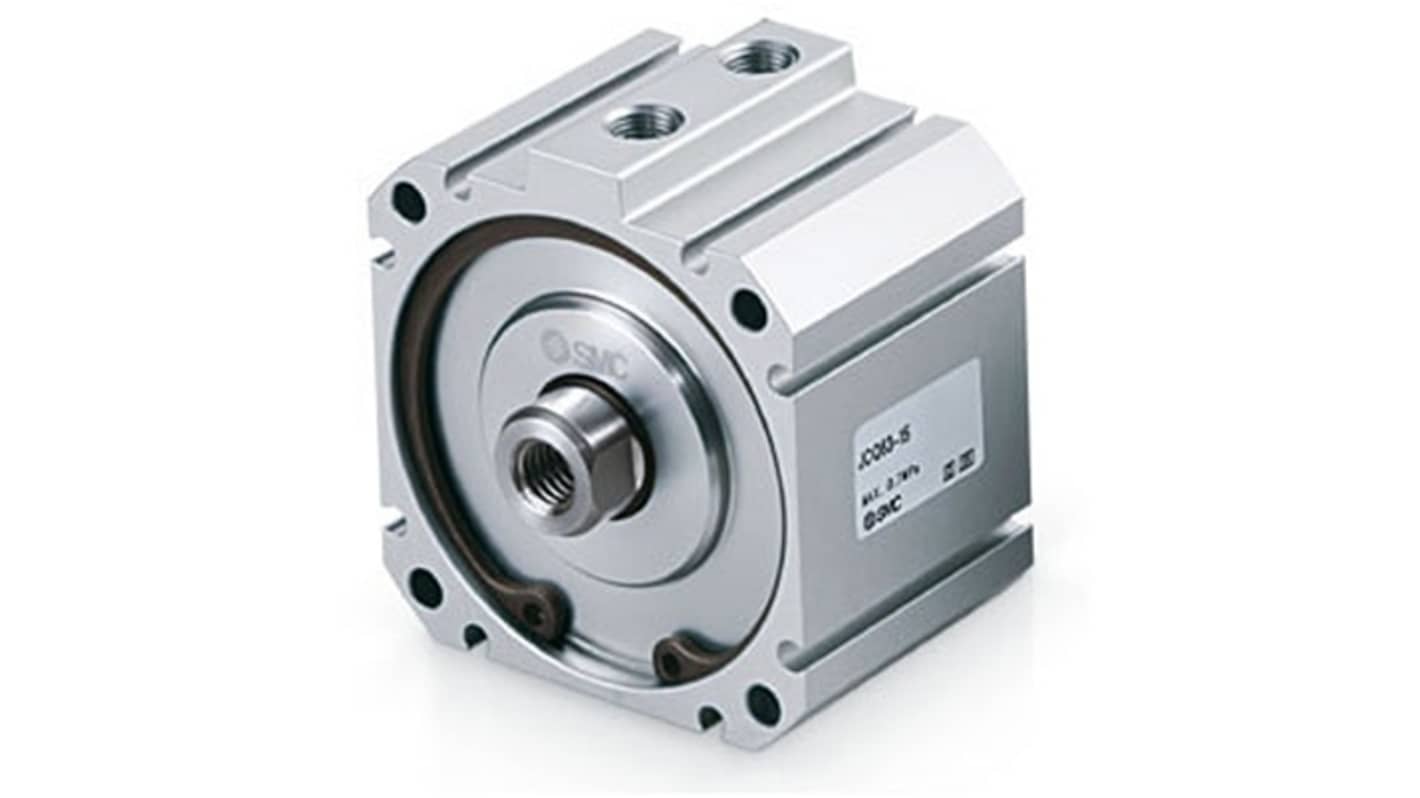

SMC Pneumatic Compact Cylinder - JCDQ40-20, 40mm Bore, 20mm Stroke, JCQ Series, Double Acting
- RS Stock No.:
- 370-156
- Mfr. Part No.:
- JCDQ40-20
- Brand:
- SMC
Subtotal (1 unit)*
£57.50
(exc. VAT)
£69.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £57.50 |
*price indicative
- RS Stock No.:
- 370-156
- Mfr. Part No.:
- JCDQ40-20
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | JCQ | |
Model Number p | JCDQ40-20 | |
Stroke | 20mm | |
Action | Double | |
Bore | 40mm | |
Port Connection | M5 x 0.8 | |
Pneumatic Connection | M5 | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series JCQ | ||
Model Number p JCDQ40-20 | ||
Stroke 20mm | ||
Action Double | ||
Bore 40mm | ||
Port Connection M5 x 0.8 | ||
Pneumatic Connection M5 | ||
- COO (Country of Origin):
- JP
The SMC compact cylinder is designed for fluid air applications, with a proof pressure rating of 1.0 MPa. It operates in ambient and fluid temperatures ranging from 5 to 60°C. The cylinder is equipped with a rubber bumper for cushioning, reducing impact and ensuring smooth operation. The rod end features a female thread, providing easy installation and compatibility with various mounting configurations.
Double acting
Single rod
Single rod
