RS PRO Pneumatic Piston Rod Cylinder - 10mm Bore, 10mm Stroke, Double Acting
- RS Stock No.:
- 360-780
- Brand:
- RS PRO
Subtotal (1 unit)*
£42.41
(exc. VAT)
£50.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 999,999,994 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £42.41 |
*price indicative
- RS Stock No.:
- 360-780
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Stroke | 10mm | |
Action | Double | |
Bore | 10mm | |
Port Connection | M5 | |
Pneumatic Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastomer | |
Dimensions | 96 x 16mm | |
Diameter | 16mm | |
Length | 96mm | |
Absolute Maximum Pressure | 12bar | |
Maximum Operating Pressure | 10bar | |
ISO Standard | ISO 6432 | |
Maximum Operating Temperature | 80°C | |
Weight | 190g | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Stroke 10mm | ||
Action Double | ||
Bore 10mm | ||
Port Connection M5 | ||
Pneumatic Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastomer | ||
Dimensions 96 x 16mm | ||
Diameter 16mm | ||
Length 96mm | ||
Absolute Maximum Pressure 12bar | ||
Maximum Operating Pressure 10bar | ||
ISO Standard ISO 6432 | ||
Maximum Operating Temperature 80°C | ||
Weight 190g | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- PL

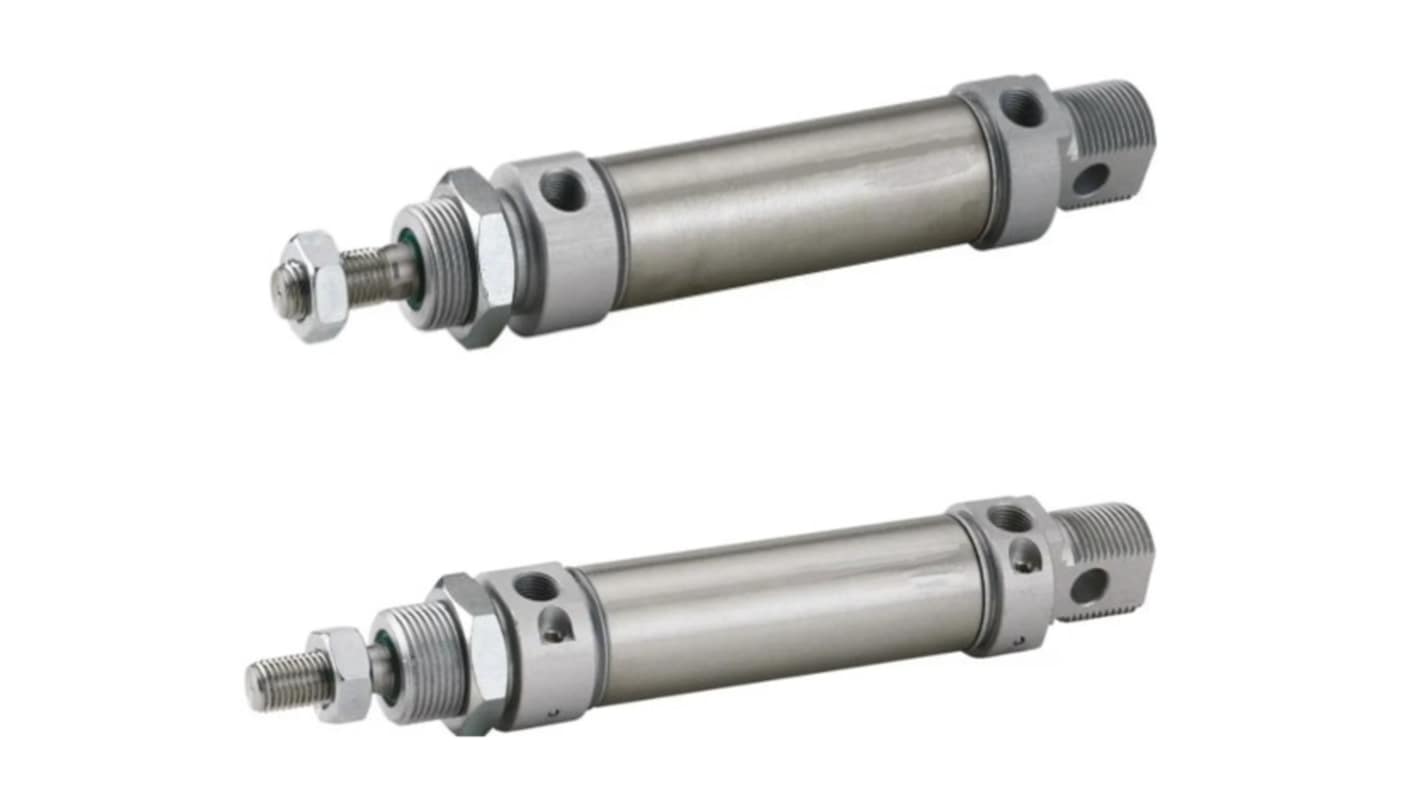

RS PRO Pneumatic Piston Rod Cylinder, ISO 6432, 10 mm Bore, 10 mm Stroke
The RS PRO Pneumatic Piston Rod Cylinder is designed to deliver compact and efficient solutions for industrial applications. Complying with ISO 6432 standards, this cylinder offers reliable performance in confined spaces, making it ideal for applications requiring precision and force.
Features and Benefits
Accordance with ISO 6432 standard: Ensures compatibility and reliability across various industrial systems
Working pressure 1 to 10 bar: Provides flexibility for different operational requirements
Working temperature from -10 °C to +80 °C: Suitable for a wide range of environmental conditions
Compact design: Allows for installation in tight spaces without sacrificing performance
Mechanical cushioning: Reduces wear and tear, extending the lifespan of the cylinder
Working pressure 1 to 10 bar: Provides flexibility for different operational requirements
Working temperature from -10 °C to +80 °C: Suitable for a wide range of environmental conditions
Compact design: Allows for installation in tight spaces without sacrificing performance
Mechanical cushioning: Reduces wear and tear, extending the lifespan of the cylinder
Applications
Automation systems
Manufacturing equipment
Robotics
Material handling
Manufacturing equipment
Robotics
Material handling
Additional Information
Accordance with ISO6432 standard
Working pressure 1 to 10 bar
Working temperature is from -10 °C to +80 °C
Working pressure 1 to 10 bar
Working temperature is from -10 °C to +80 °C
Port Connection: M5 Male
Cushioning Type: Elastomer
Dimensions: 96 x 16 mm
Weight: 190 g
Cushioning Type: Elastomer
Dimensions: 96 x 16 mm
Weight: 190 g
