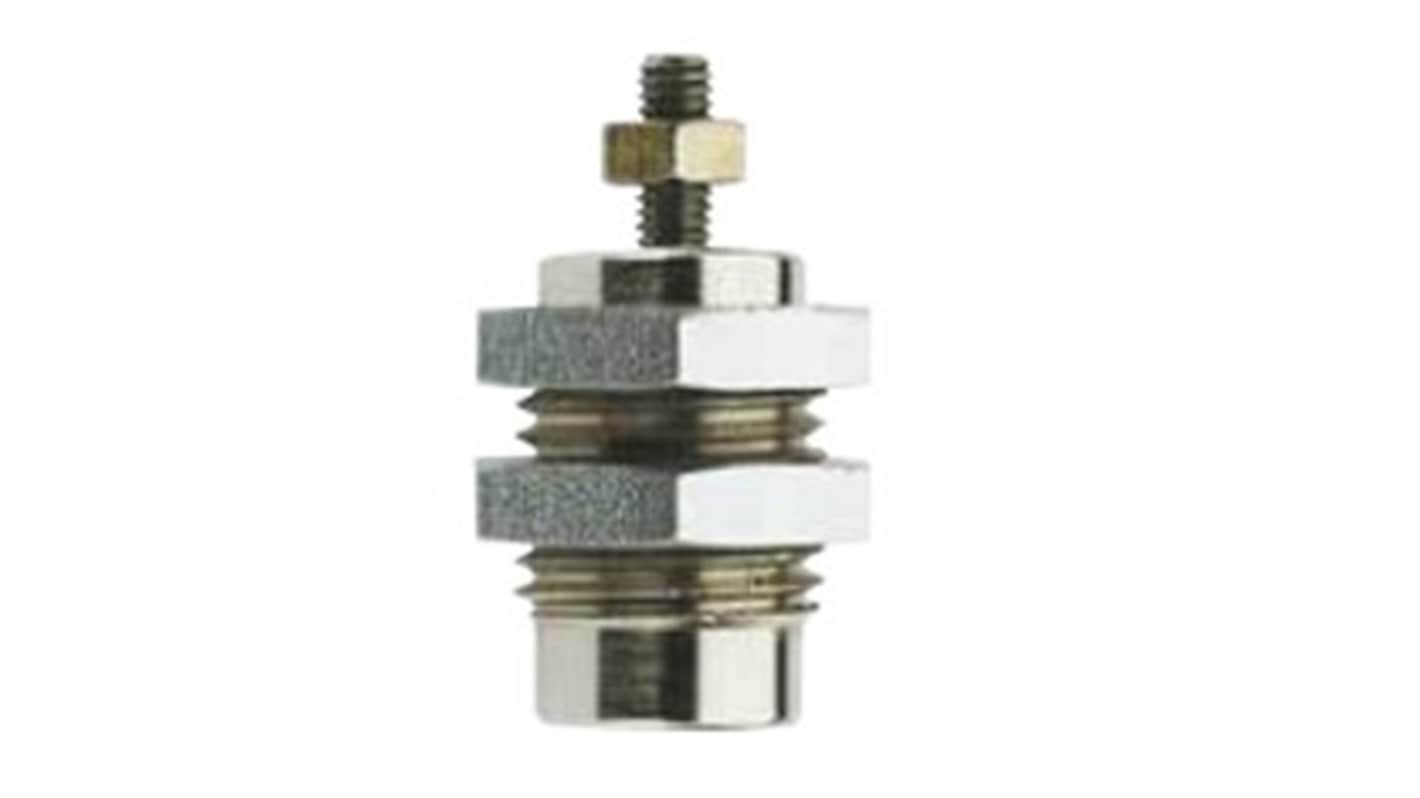

RS PRO Pneumatic Piston Rod Cylinder - 10mm Bore, 15mm Stroke, Single Acting
- RS Stock No.:
- 360-779
- Brand:
- RS PRO
Subtotal (1 unit)*
£22.06
(exc. VAT)
£26.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 999,999,994 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £22.06 |
*price indicative
- RS Stock No.:
- 360-779
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Bore | 10mm | |
Stroke | 15mm | |
Action | Single | |
Port Connection | M5 | |
Pneumatic Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastomer | |
Dimensions | 45.5 x 15 x 15mm | |
Width | 15mm | |
Height | 15mm | |
Length | 45.5mm | |
Maximum Operating Pressure | 7bar | |
Absolute Maximum Pressure | 8bar | |
Maximum Operating Temperature | 80°C | |
Minimum Operating Temperature | 0°C | |
Weight | 225g | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Bore 10mm | ||
Stroke 15mm | ||
Action Single | ||
Port Connection M5 | ||
Pneumatic Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastomer | ||
Dimensions 45.5 x 15 x 15mm | ||
Width 15mm | ||
Height 15mm | ||
Length 45.5mm | ||
Maximum Operating Pressure 7bar | ||
Absolute Maximum Pressure 8bar | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature 0°C | ||
Weight 225g | ||
- COO (Country of Origin):
- PL
RS PRO Pneumatic Piston Rod Cylinder, Cartridge Actuator D10x15, M4 Thread
The RS PRO Pneumatic Piston Rod Cylinder is designed for efficient and compact pneumatic applications. This cartridge actuator, with a D10x15 configuration and M4 thread, is ideal for installations requiring minimal space. Its compact design and reliable sealing make it a versatile choice for various industrial settings.
Features and Benefits
Cartridge cylinder with threaded rod: Allows for easy installation and integration into machinery
Compact dimensions: Ideal for applications with limited space
Maximum operating pressure 7 bar: Suitable for a wide range of pneumatic applications
Working temperature from 0 °C to +80 °C: Ensures reliable performance in diverse environments
No threaded piston rod: Simplifies installation and reduces maintenance requirements
Compact dimensions: Ideal for applications with limited space
Maximum operating pressure 7 bar: Suitable for a wide range of pneumatic applications
Working temperature from 0 °C to +80 °C: Ensures reliable performance in diverse environments
No threaded piston rod: Simplifies installation and reduces maintenance requirements
Applications
Automation systems
Manufacturing equipment
Robotics
Packaging machinery
Manufacturing equipment
Robotics
Packaging machinery
Additional Information
Cartridge cylinder with threaded rod
Several usage possibility with angular bracket or directly integrated into the machine
Maximum operating pressure 8 bar
Working temperature is from 0 °C to +80 °C
No threaded piston rod
Several usage possibility with angular bracket or directly integrated into the machine
Maximum operating pressure 8 bar
Working temperature is from 0 °C to +80 °C
No threaded piston rod
Key standards: Complies with relevant industry standards for pneumatic components
Reliable sealing: Utilises an O-ring for effective air sealing
Port connection: M5 Male for secure and efficient connectivity
Reliable sealing: Utilises an O-ring for effective air sealing
Port connection: M5 Male for secure and efficient connectivity
