MPN

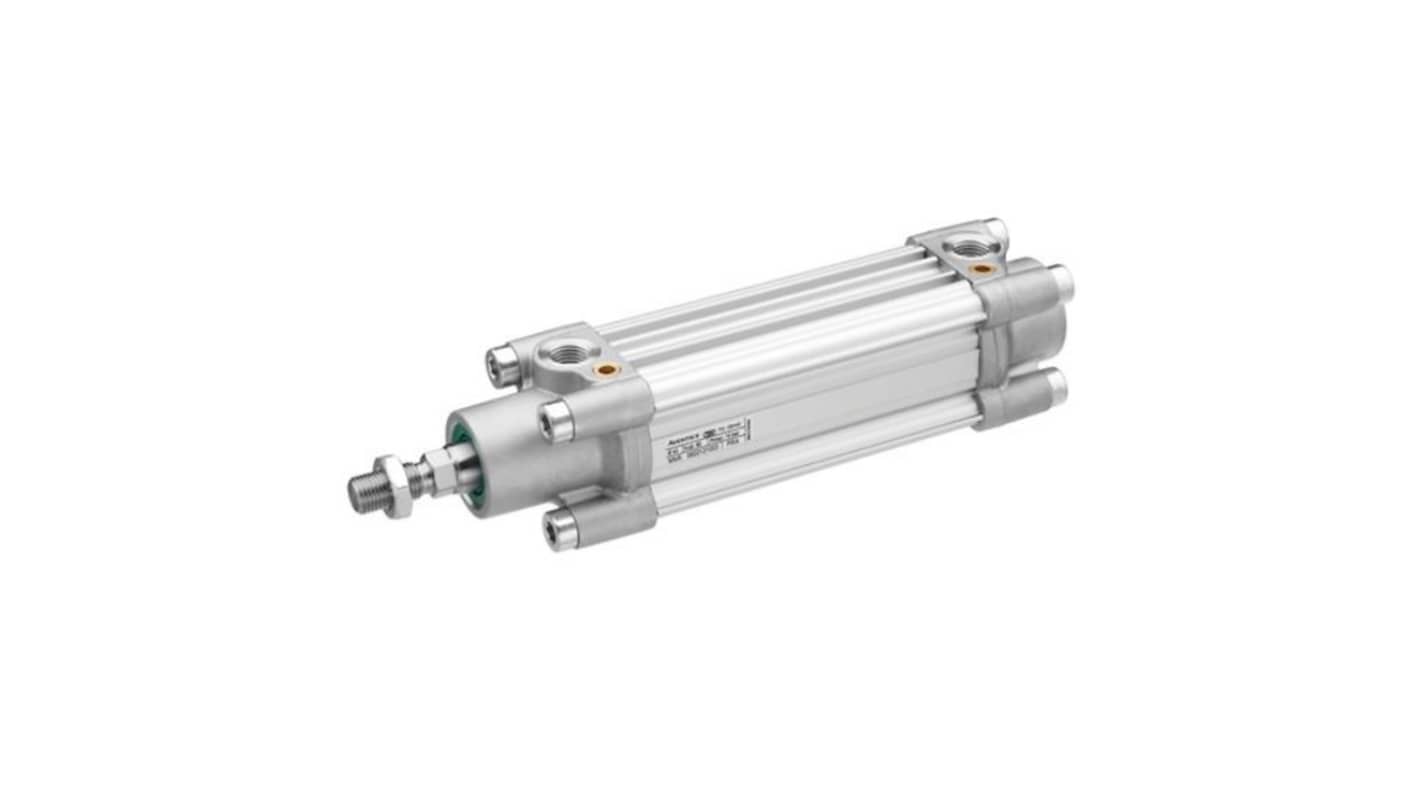

EMERSON – AVENTICS Pneumatic Cylinder - 0822123003, 63mm Bore, 80mm Stroke, PRA Series, Double Acting

Subtotal (1 unit)*

£193.19

(exc. VAT)

£231.83

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£193.19

*price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EMERSON ? AVENTICS
	Manufacturer Series	PRA
	Model Number p	0822123003
	Action	Double
	Bore	63mm
	Stroke	80mm
	Port Connection	G 3/8
	Pneumatic Connection	G 3/8
	Piston Rod Thread Gender	Male
	Cushioning Type	Pneumatic Cushioning
	Dimensions	121 x 24mm
	Diameter	24mm
	Length	121mm
	Maximum Operating Pressure	10 bar
	ISO Standard	15552
	VDMA Standard	ISO 15552
	Maximum Operating Temperature	+80°C
	Minimum Operating Temperature	-20°C

	Select all
	Brand EMERSON ? AVENTICS
	Manufacturer Series PRA
	Model Number p 0822123003
	Action Double
	Bore 63mm
	Stroke 80mm
	Port Connection G 3/8
	Pneumatic Connection G 3/8
	Piston Rod Thread Gender Male
	Cushioning Type Pneumatic Cushioning
	Dimensions 121 x 24mm
	Diameter 24mm
	Length 121mm
	Maximum Operating Pressure 10 bar
	ISO Standard 15552
	VDMA Standard ISO 15552
	Maximum Operating Temperature +80°C
	Minimum Operating Temperature -20°C
