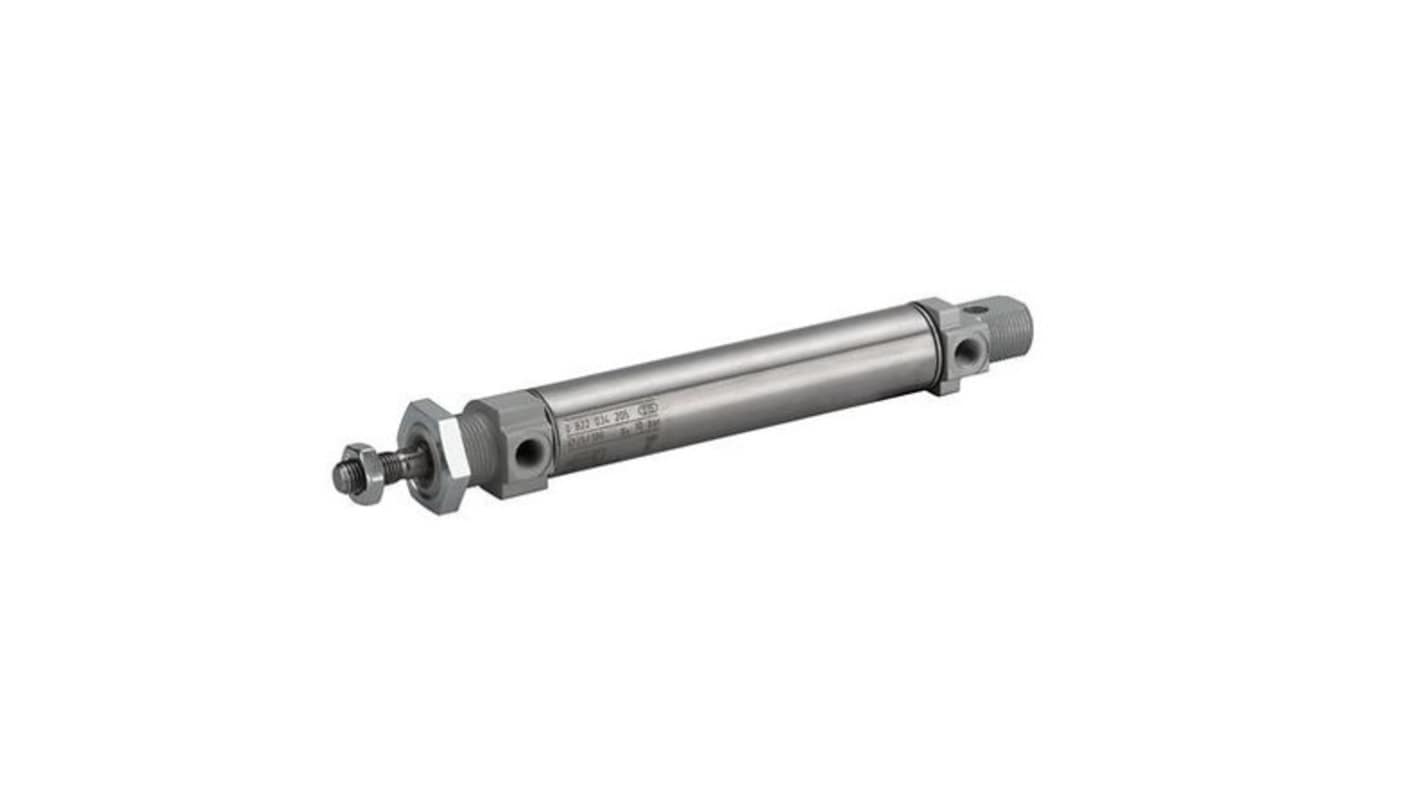

EMERSON – AVENTICS Pneumatic Cylinder - 0822033208, 20mm Bore, 200mm Stroke, MNI Series, Double Acting
- RS Stock No.:
- 278-139
- Mfr. Part No.:
- 0822033208
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£71.21
(exc. VAT)
£85.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £71.21 |
*price indicative
- RS Stock No.:
- 278-139
- Mfr. Part No.:
- 0822033208
- Brand:
- EMERSON ? AVENTICS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Manufacturer Series | MNI | |
| Model Number p | 0822033208 | |
| Bore | 20mm | |
| Action | Double | |
| Stroke | 200mm | |
| Pneumatic Connection | G 1/8 | |
| Port Connection | G 1/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Elastic | |
| Dimensions | 109.5 x 30mm | |
| Length | 109.5mm | |
| Diameter | 30mm | |
| Maximum Operating Pressure | 10 bar | |
| ISO Standard | ISO 6432 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +80°C | |
| VDMA Standard | ISO 6432 | |
Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series MNI | ||
Model Number p 0822033208 | ||
Bore 20mm | ||
Action Double | ||
Stroke 200mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Dimensions 109.5 x 30mm | ||
Length 109.5mm | ||
Diameter 30mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
VDMA Standard ISO 6432 | ||
