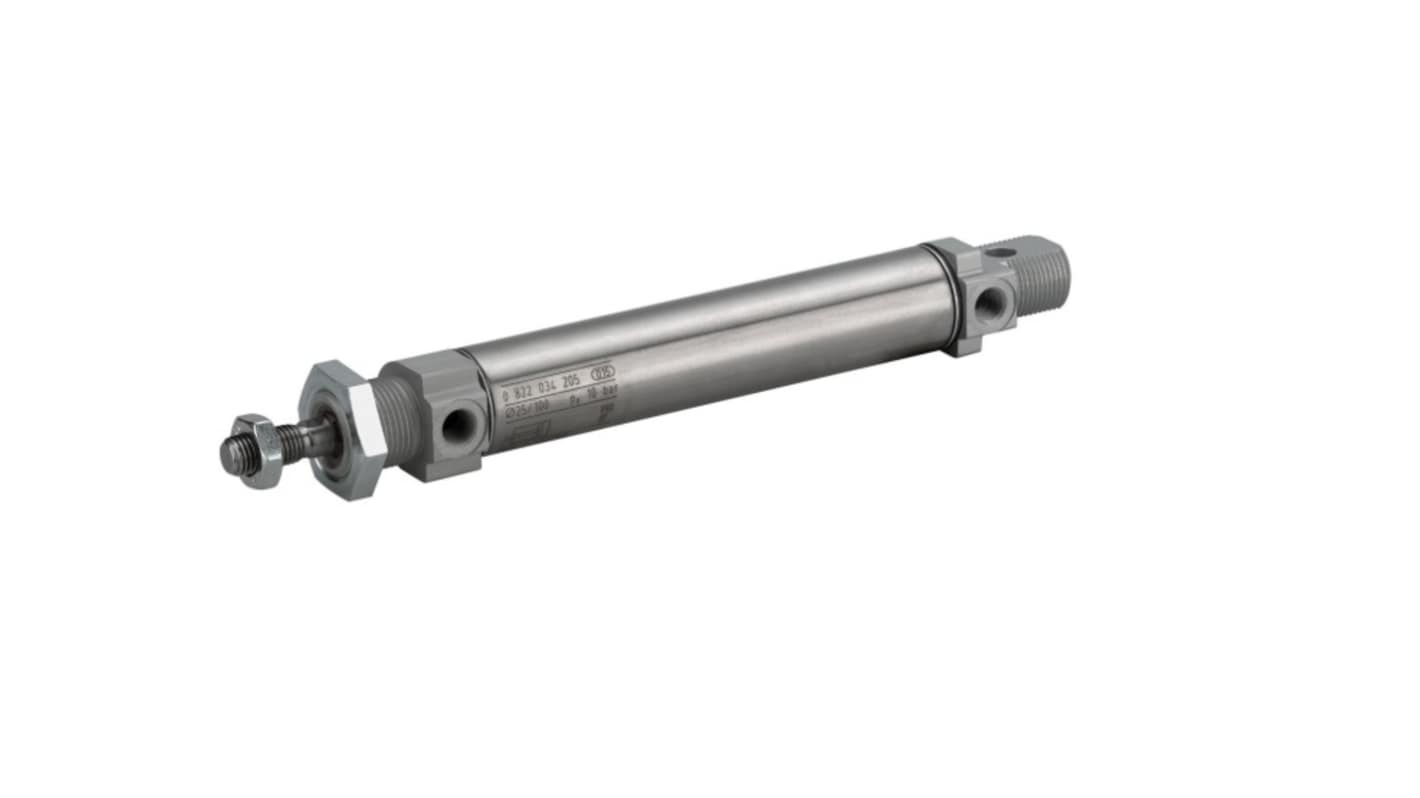

EMERSON – AVENTICS Roundline Cylinder - 0822234008, 25mm Bore, 200mm Stroke, MNI Series, Double Acting
- RS Stock No.:
- 274-856
- Mfr. Part No.:
- 0822234008
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£89.34
(exc. VAT)
£107.21
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £89.34 |
*price indicative
- RS Stock No.:
- 274-856
- Mfr. Part No.:
- 0822234008
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | MNI | |
Model Number p | 0822234008 | |
Action | Double | |
Stroke | 200mm | |
Bore | 25mm | |
Port Connection | G 1/8 | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Cushioning | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series MNI | ||
Model Number p 0822234008 | ||
Action Double | ||
Stroke 200mm | ||
Bore 25mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- HU
The Aventics mini cylinder from aventics, part of the MNI Series, is designed for general machine construction, offering a robust solution with a long service life. Engineered to meet ISO 6432 standards, it excels in versatility and reliability, making it a perfect choice for varied industrial applications. The double-acting mechanism ensures efficient operation, while the adjustable pneumatic cushioning enhances performance, safeguarding your machinery. With a compact piston diameter of 25 mm and a stroke length of 200 mm, this cylinder adapts swiftly to demanding tasks while maintaining its structural integrity under pressure. Its ATEX certification provides additional assurance for use in potentially explosive environments, catering to industry-specific safety requirements. Coupled with a range of dimensional specifications, this product promises seamless integration into existing systems, proving its worth in both functionality and design.
Robust construction ensures durability in various industrial environments
Double-acting functionality enhances operational efficiency
Pneumatic adjustable cushioning maximises performance and equipment protection
ATEX certification offers peace of mind for use in explosive atmospheres
Comprehensive dimensional options facilitate easy installation and integration
Lightweight design contributes to reduced overall system weight
Double-acting functionality enhances operational efficiency
Pneumatic adjustable cushioning maximises performance and equipment protection
ATEX certification offers peace of mind for use in explosive atmospheres
Comprehensive dimensional options facilitate easy installation and integration
Lightweight design contributes to reduced overall system weight
