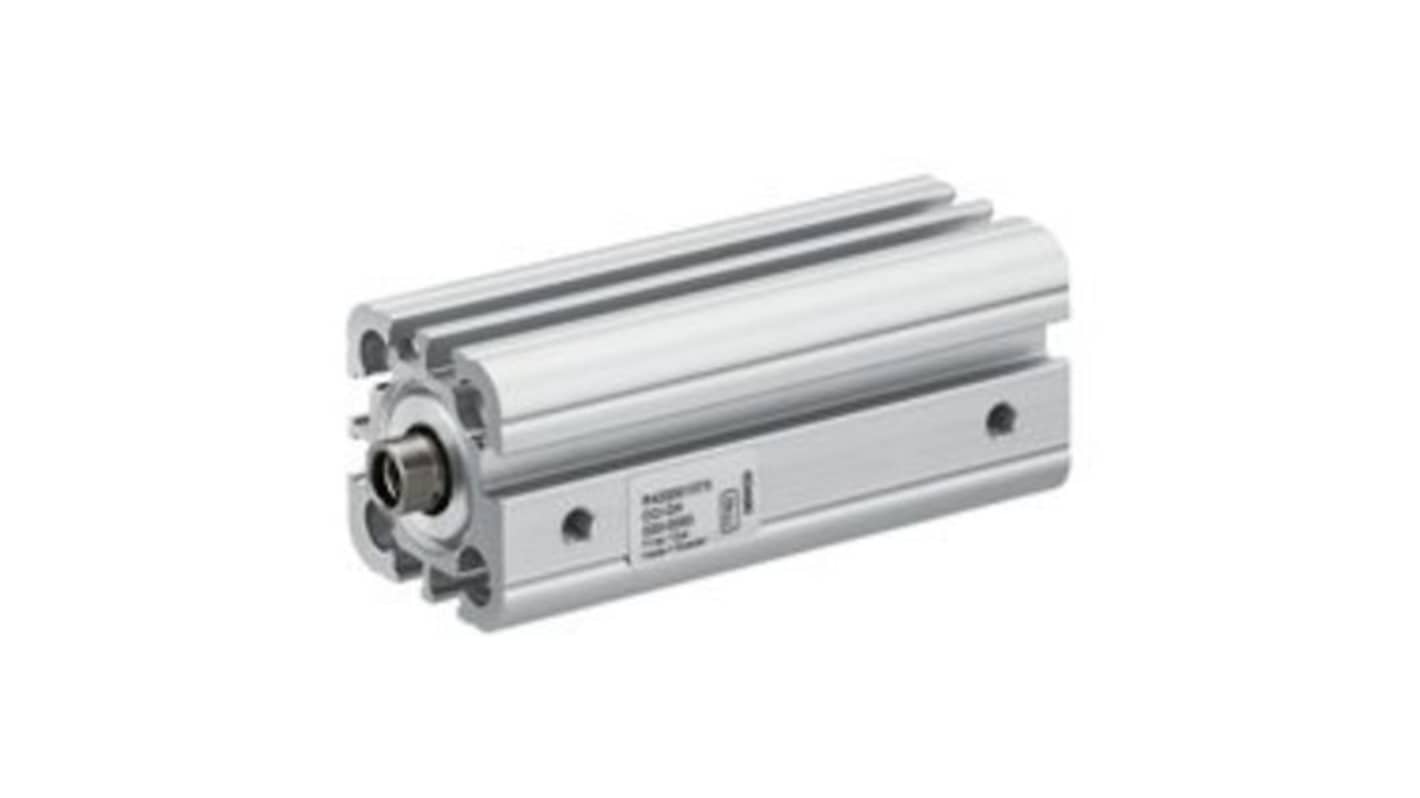

EMERSON – AVENTICS Pneumatic Compact Cylinder - R422001058, 63mm Bore, 30mm Stroke, CCI Series, Double Acting

Subtotal (1 unit)*

£140.71

(exc. VAT)

£168.85

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£140.71

*price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EMERSON ? AVENTICS
	Manufacturer Series	CCI
	Model Number p	R422001058
	Action	Double
	Stroke	30mm
	Bore	63mm
	Port Connection	G 1/8
	Pneumatic Connection	G 1/8
	Piston Rod Thread Gender	Female
	Cushioning Type	Elastic
	Maximum Operating Pressure	10 bar
	ISO Standard	ISO 21287
	Maximum Operating Temperature	+80°C
	Minimum Operating Temperature	-20°C

	Select all
	Brand EMERSON ? AVENTICS
	Manufacturer Series CCI
	Model Number p R422001058
	Action Double
	Stroke 30mm
	Bore 63mm
	Port Connection G 1/8
	Pneumatic Connection G 1/8
	Piston Rod Thread Gender Female
	Cushioning Type Elastic
	Maximum Operating Pressure 10 bar
	ISO Standard ISO 21287
	Maximum Operating Temperature +80°C
	Minimum Operating Temperature -20°C
