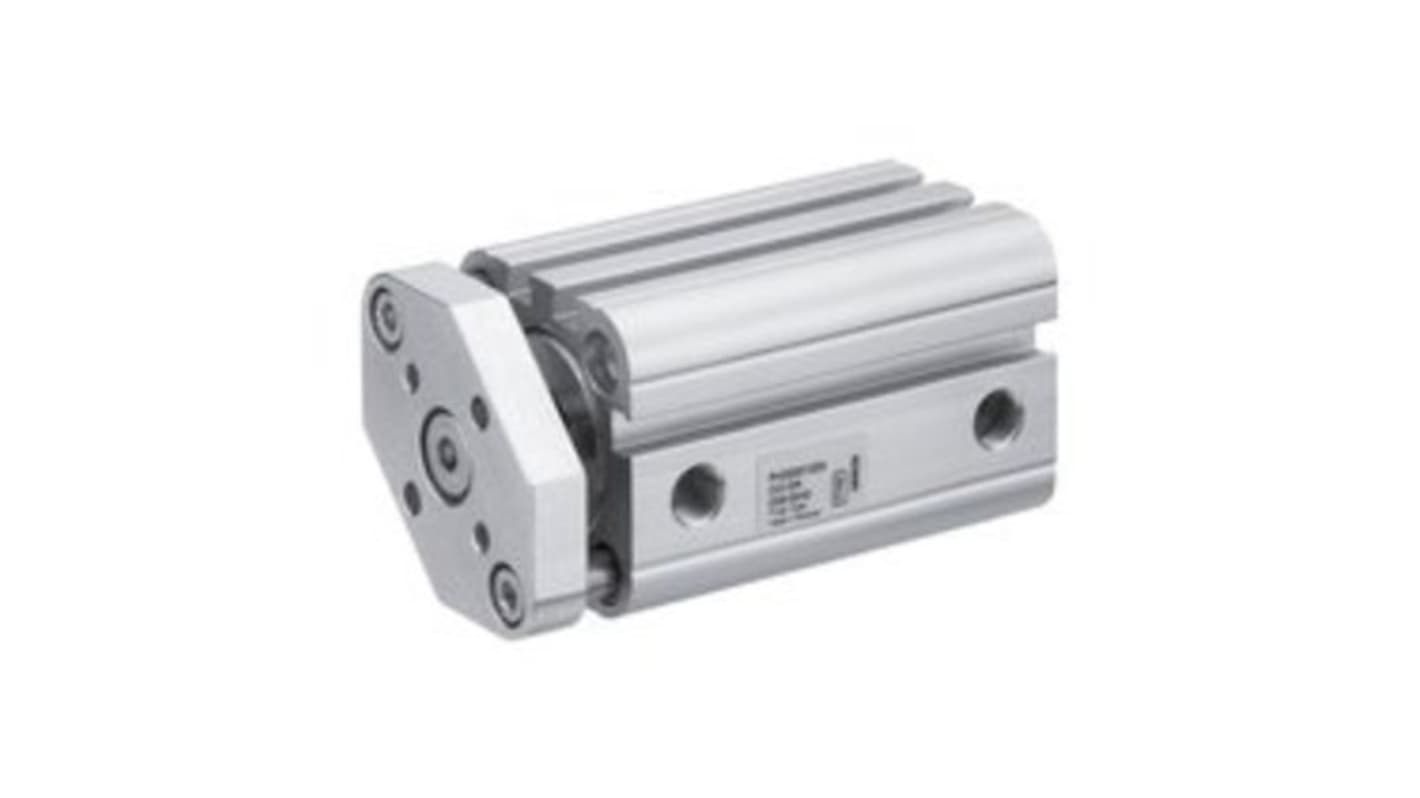

EMERSON – AVENTICS Pneumatic Compact Cylinder - R422001302, 16mm Bore, 25mm Stroke, CCI Series, Double Acting
- RS Stock No.:
- 273-538
- Mfr. Part No.:
- R422001302
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£86.42
(exc. VAT)
£103.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £86.42 |
*price indicative
- RS Stock No.:
- 273-538
- Mfr. Part No.:
- R422001302
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | CCI | |
Model Number p | R422001302 | |
Action | Double | |
Bore | 16mm | |
Stroke | 25mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series CCI | ||
Model Number p R422001302 | ||
Action Double | ||
Bore 16mm | ||
Stroke 25mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- HU
The Aventics compact cylinder, designed in accordance with ISO 21287, epitomises innovation in pneumatic technology. The Series CCI offers a sleek, easy-to-clean design that is perfectly suited for industrial applications requiring precise motion control. With features that support long strokes and rapid cycle times, this cylinder is engineered to handle demanding operational conditions. Its adaptability is further enhanced by the ability to conveniently mount sensors along the entire length of the cylinder, allowing for customised integration into various systems. Built from durable materials like aluminium and stainless steel, the Series CCI ensures reliability and longevity in challenging environments, making it an indispensable component in any pneumatic system.
Innovative design promotes enhanced cleanliness and maintenance ease
Compatible with a wide range of sensor options for versatile applications
Robust construction materials contribute to prolonged service life
Optimised for dynamic performance in high-demand settings
Elastic cushioning technology enables smooth operation and reduced impact
Internal thread piston rod allows for easy installation and setup
ATEX-certified options ensure safety in explosive environments
Dynamic and static lateral force ratings provide reliable performance under load
Compatible with a wide range of sensor options for versatile applications
Robust construction materials contribute to prolonged service life
Optimised for dynamic performance in high-demand settings
Elastic cushioning technology enables smooth operation and reduced impact
Internal thread piston rod allows for easy installation and setup
ATEX-certified options ensure safety in explosive environments
Dynamic and static lateral force ratings provide reliable performance under load
