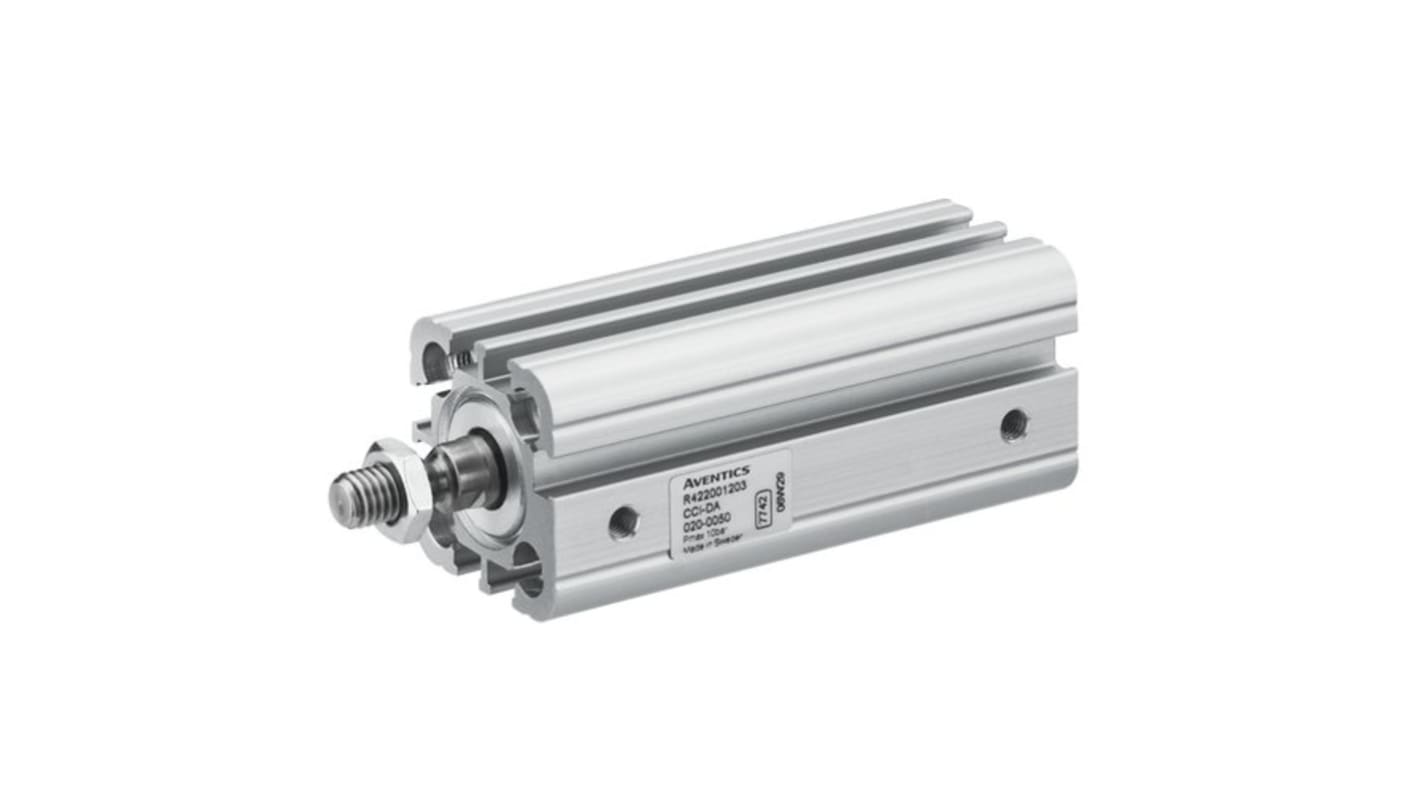

EMERSON ? AVENTICS Pneumatic Compact Cylinder - 25mm Bore, 25mm Stroke, CCI Series, Double Acting
- RS Stock No.:
- 703-5606
- Mfr. Part No.:
- R422001174
- Brand:
- EMERSON ? AVENTICS
Bulk discount available
Subtotal (1 unit)*
£78.18
(exc. VAT)
£93.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £78.18 |
| 5 + | £75.83 |
*price indicative
- RS Stock No.:
- 703-5606
- Mfr. Part No.:
- R422001174
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Manufacturer Series | CCI | |
| Stroke | 25mm | |
| Action | Double | |
| Bore | 25mm | |
| Port Connection | M5 | |
| Cushioning Type | Rubber | |
| Dimensions | 69.5 x 40.3 x 40.3mm | |
| Width | 40.3mm | |
| Height | 40.3mm | |
| Length | 69.5mm | |
| Maximum Operating Pressure | 10 bar | |
| Weight | 214g | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series CCI | ||
Stroke 25mm | ||
Action Double | ||
Bore 25mm | ||
Port Connection M5 | ||
Cushioning Type Rubber | ||
Dimensions 69.5 x 40.3 x 40.3mm | ||
Width 40.3mm | ||
Height 40.3mm | ||
Length 69.5mm | ||
Maximum Operating Pressure 10 bar | ||
Weight 214g | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU
Series CCI External Piston Rod Thread
CCI Compact ISO Cylinder
