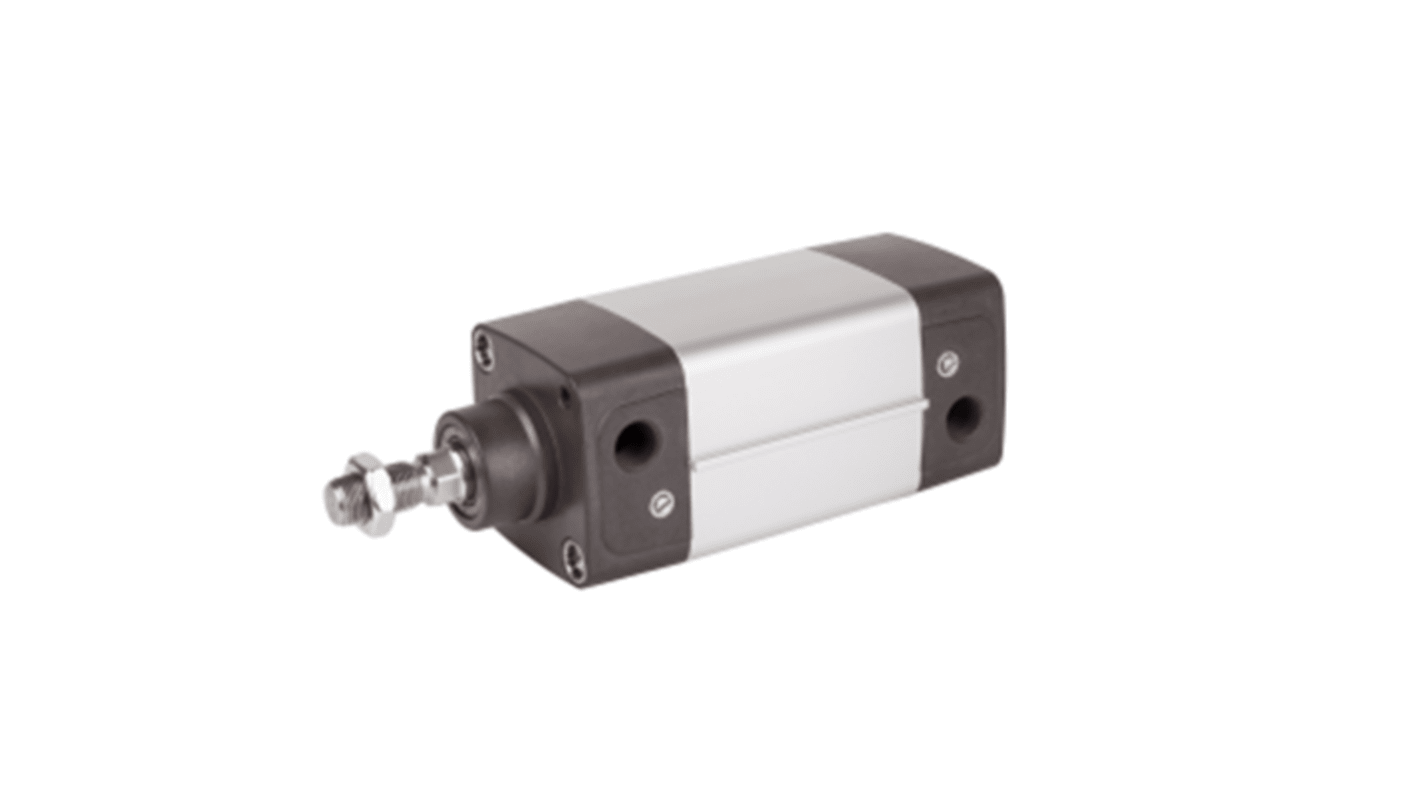

EMERSON – AVENTICS Pneumatic Compact Cylinder - R480668858, 63mm Bore, 30mm Stroke, CCL-IC Series, Double Acting

Subtotal (1 unit)*

£201.33

(exc. VAT)

£241.60

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£201.33

*price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EMERSON ? AVENTICS
	Manufacturer Series	CCL-IC
	Model Number p	R480668858
	Action	Double
	Bore	63mm
	Stroke	30mm
	Port Connection	G 1/8
	Pneumatic Connection	G 1/8
	Piston Rod Thread Gender	Female
	Cushioning Type	Elastic
	Maximum Operating Pressure	10 bar
	ISO Standard	ISO 21287
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+80°C

	Select all
	Brand EMERSON ? AVENTICS
	Manufacturer Series CCL-IC
	Model Number p R480668858
	Action Double
	Bore 63mm
	Stroke 30mm
	Port Connection G 1/8
	Pneumatic Connection G 1/8
	Piston Rod Thread Gender Female
	Cushioning Type Elastic
	Maximum Operating Pressure 10 bar
	ISO Standard ISO 21287
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +80°C
