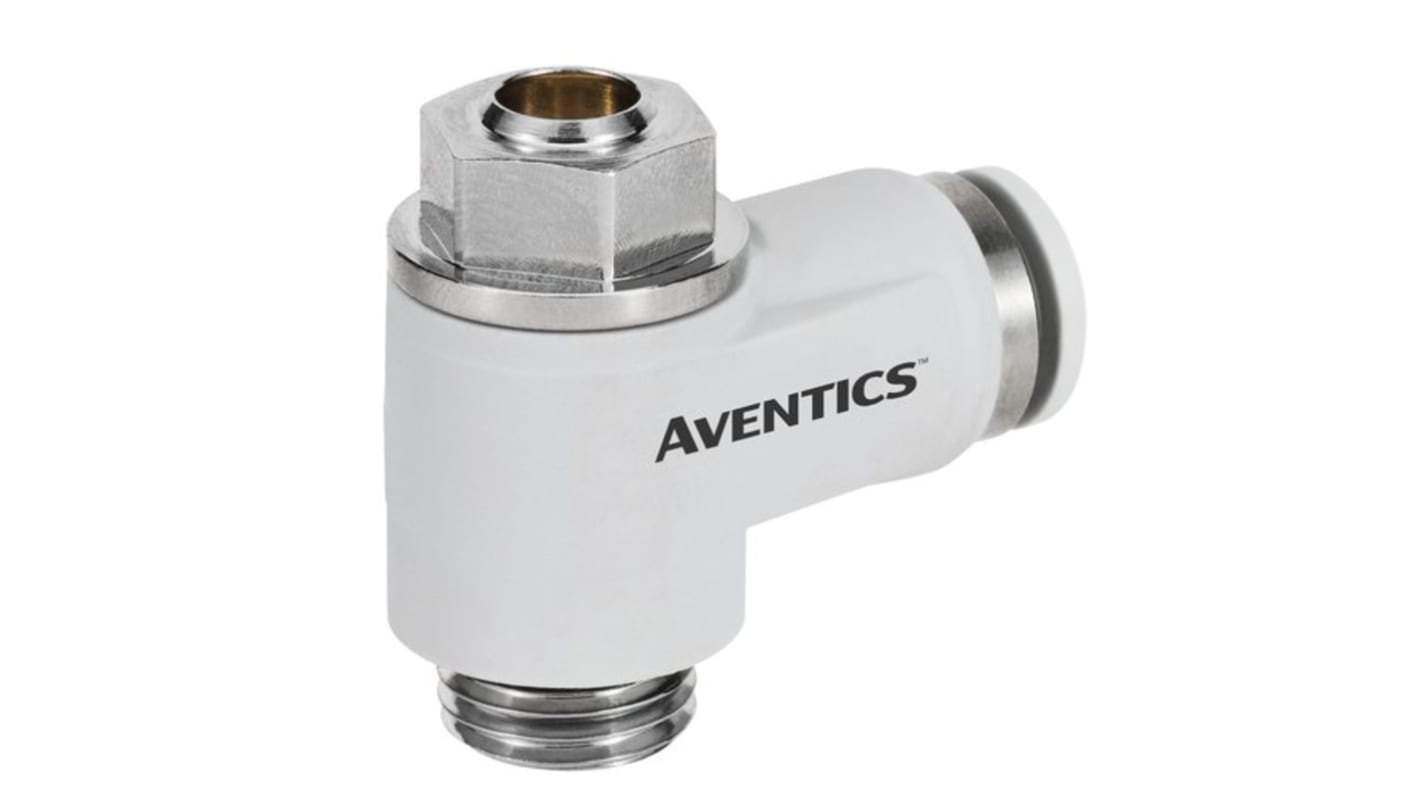

EMERSON – AVENTICS CC04 Non Return Valve, 8mm Tube Inlet, 0.5 to 10bar
- RS Stock No.:
- 187-9027
- Mfr. Part No.:
- R412010570
- Brand:
- EMERSON ? AVENTICS
Bulk discount available
Subtotal (1 unit)*
£21.37
(exc. VAT)
£25.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship from another location
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £21.37 |
| 5 - 9 | £20.72 |
| 10 + | £20.09 |
*price indicative
- RS Stock No.:
- 187-9027
- Mfr. Part No.:
- R412010570
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Tube Inlet Connection | 8mm | |
| Outlet Connection Type | Threaded | |
| Manufacturer Series | CC04 | |
| Cracking Pressure | 0.5bar | |
| Minimum Operating Pressure | 0.5bar | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Operating Temperature | +60°C | |
| Body Material | Polyamide | |
| Minimum Operating Temperature | -10°C | |
| Operating Pressure Range | 0.5 to 10bar | |
| Threaded Inlet Thread Standard | G | |
Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Tube Inlet Connection 8mm | ||
Outlet Connection Type Threaded | ||
Manufacturer Series CC04 | ||
Cracking Pressure 0.5bar | ||
Minimum Operating Pressure 0.5bar | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +60°C | ||
Body Material Polyamide | ||
Minimum Operating Temperature -10°C | ||
Operating Pressure Range 0.5 to 10bar | ||
Threaded Inlet Thread Standard G | ||
- COO (Country of Origin):
- IT
Qn 2-1 = 0.478 Cv
Direction of throttle 2 - 1
Exhaust air throttling
Push-in fitting / External thread
Direction of throttle 2 - 1
Exhaust air throttling
Push-in fitting / External thread
