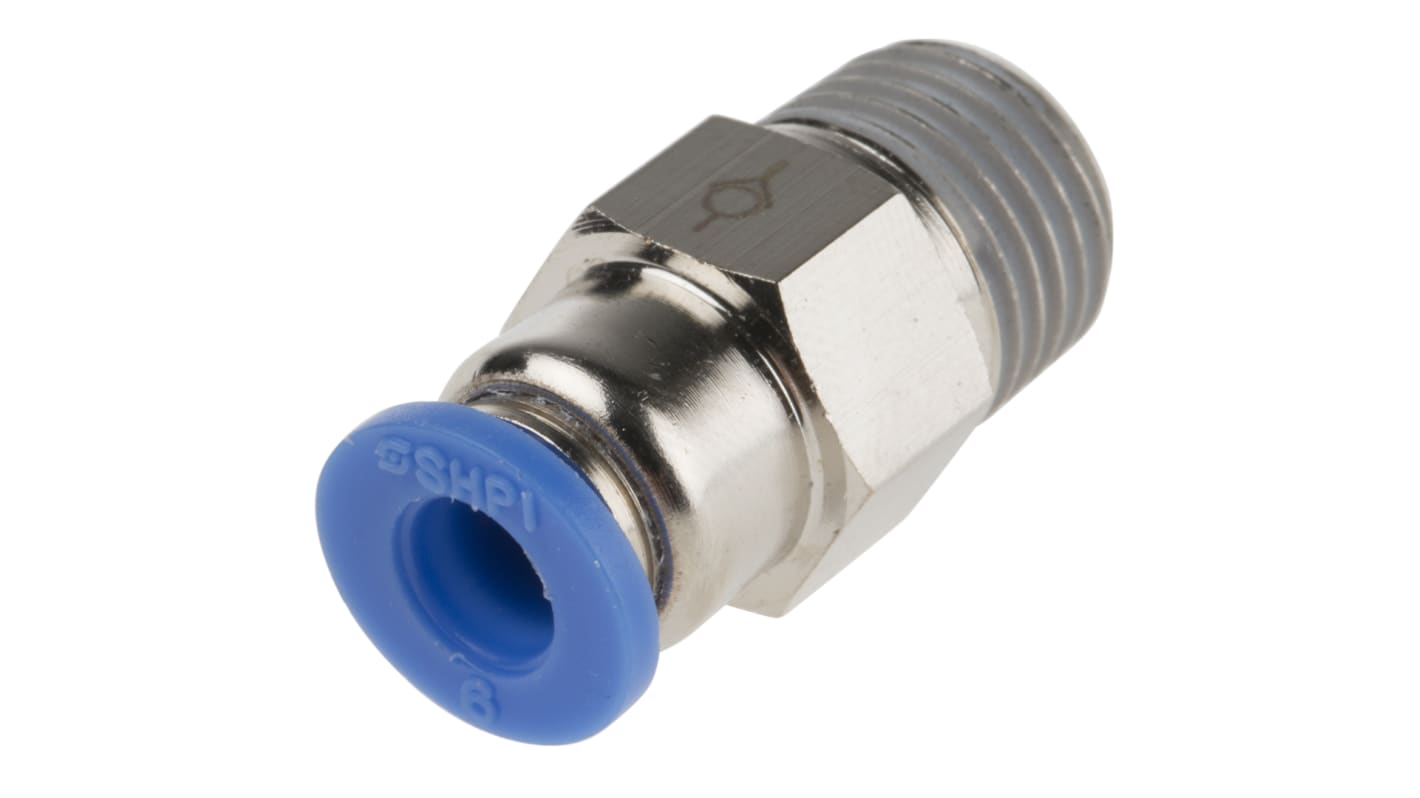

RS PRO Non Return Valve, 6mm Tube Outlet, 0 to 9.9 kgf/cm², 0 to 990kPa
- RS Stock No.:
- 144-2695
- Brand:
- RS PRO
57 In stock - FREE next working day delivery available
30 available from Europe for delivery within 1 working day(s).
Added
Price 1 Bag of 1
£6.82
(exc. VAT)
£8.18
(inc. VAT)
| Bag(s) | Per Bag |
| 1 + | £6.82 |
- RS Stock No.:
- 144-2695
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS Pro Check Valves
Features and Benefits
• Suitable for low pressure applications
• Allows compressed air from one side to flow and blocks the inverse flow to protect and maintain the vacuum line
• Easily applied to low pressure piping
• Applicable fluid type, air (no other type of gas or liquid)
• Working pressure range 0 to 150 psi
• Working temperature range 0 to 60 °C
• Allows compressed air from one side to flow and blocks the inverse flow to protect and maintain the vacuum line
• Easily applied to low pressure piping
• Applicable fluid type, air (no other type of gas or liquid)
• Working pressure range 0 to 150 psi
• Working temperature range 0 to 60 °C
Specifications
Attribute | Value |
|---|---|
| Inlet Connection Type | Threaded |
| Tube Outlet Connection | 6mm |
| Threaded Inlet Gender | Male |
| Minimum Operating Pressure | 0 kgf/cm², 0kPa |
| Maximum Operating Pressure | 9.9 kgf/cm², 990 kPa |
| Maximum Operating Temperature | +60°C |
| Threaded Inlet Thread Size | 1/4in |
| Minimum Operating Temperature | 0°C |
| Operating Pressure Range | 0 to 9.9 kgf/cm², 0 to 990kPa |
| Threaded Inlet Thread Standard | BSPT |
