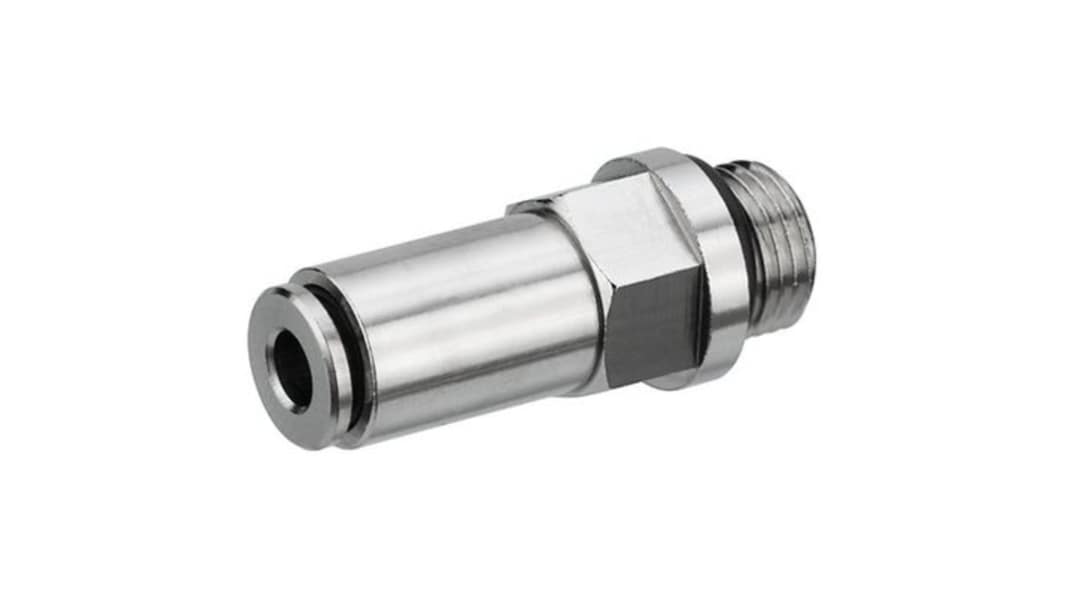

EMERSON – AVENTICS NR01 Non Return Valve, 10 bar Inlet Female Threaded 1/4 in G, Outlet Male Threaded G 1/4 in G
- RS Stock No.:
- 303-590
- Mfr. Part No.:
- 1823373108
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£23.07
(exc. VAT)
£27.68
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.07 |
*price indicative
- RS Stock No.:
- 303-590
- Mfr. Part No.:
- 1823373108
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Product Type | Non Return Valve | |
| Inlet Connection Type | Threaded | |
| Outlet Connection Type | Threaded | |
| Inlet Connection Size | 1/4 in G | |
| Outlet Connection Size | 1/4 in G | |
| Series | NR01 | |
| Inlet Port Gender | Female | |
| Minimum Operating Pressure | 0.2bar | |
| Minimum Operating Temperature | -10°C | |
| Material | Nickel Plated Brass, Acrylonitrile Butadiene Rubber | |
| Outlet Port Gender | Male | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Maximum Operating Pressure | 10 bar | |
| Outlet Thread Standard | G | |
| Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Product Type Non Return Valve | ||
Inlet Connection Type Threaded | ||
Outlet Connection Type Threaded | ||
Inlet Connection Size 1/4 in G | ||
Outlet Connection Size 1/4 in G | ||
Series NR01 | ||
Inlet Port Gender Female | ||
Minimum Operating Pressure 0.2bar | ||
Minimum Operating Temperature -10°C | ||
Material Nickel Plated Brass, Acrylonitrile Butadiene Rubber | ||
Outlet Port Gender Male | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Maximum Operating Pressure 10 bar | ||
Outlet Thread Standard G | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Aventics Non-Return valve are designed for safety relevant processes. The array of connection helps them to be screwed in separately and are also suitable for direct installation in piping.
Poppet valve
Port diameter are 8 mm and G 1 by 4
Nominal flow is 950 l per min
