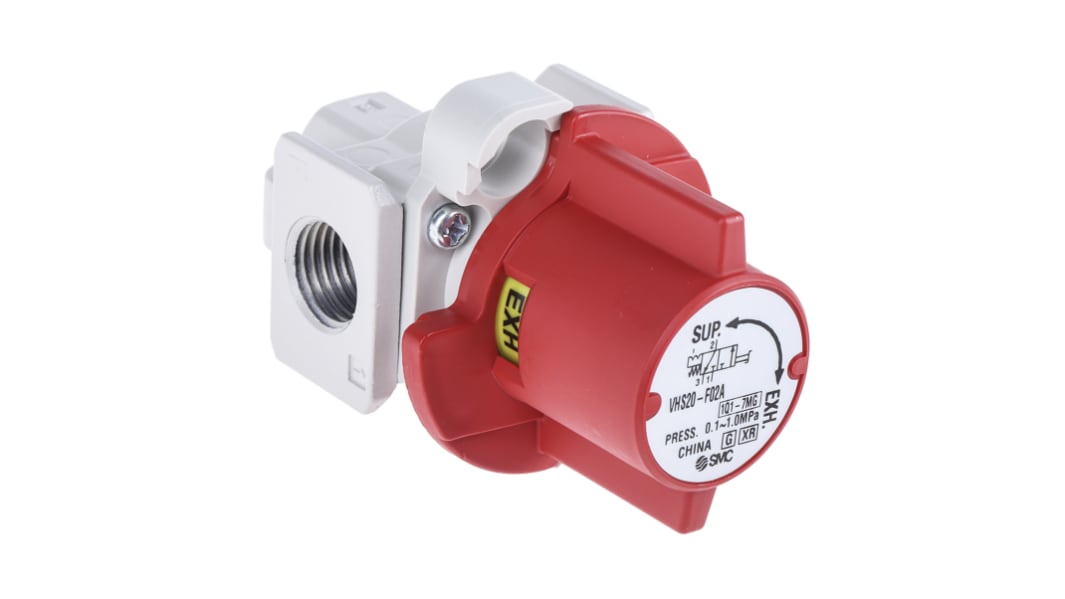

SMC Locking Shut-Off Valve Pneumatic Relay Pneumatic Manual Control Valve VHS20 Series, G 1/4, 1/4in, III B

View this category
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
SMC Rotary Knob Pressure Relief Pressure Release Valve VHS20-D Series, G 1/4, 2.5mm, III B
RS Stock No.
255-2887

Each

£27.20

(exc. VAT)

£32.64

(inc. VAT)

RS Stock No.:
890-3275
Distrelec Article No.:
304-02-517
Mfr. Part No.:
VHS20-F02A
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Control Mechanism

Locking Shut-Off Valve

Connection Port Thread

G 1/4

Function

Pneumatic Relay

Thread Size

1/4in

Thread Standard

G

Manufacturer Series

VHS20

Control Button/Switch Colour

Red

Maximum Operating Pressure

1 MPa

Body Material

Aluminium Die Cast

Minimum Operating Temperature

-5°C

Maximum Operating Temperature

+60°C

Number of Ports

3

Number of Positions

2

Model Number p

III B

RoHS Status: Exempt

COO (Country of Origin):
FR

SMC VHS20 Series Pneumatic Manual Control Valve, 1 MPa Maximum Operating Pressure, Aluminium - VHS20-F02A


This pneumatic manual control valve is designed for effective control in automated systems. Featuring a sturdy aluminium die-cast structure, this valve operates efficiently across a wide temperature range, from -5 °C to +60 °C. With a maximum operating pressure of 1 MPa, it is suitable for various pneumatic applications, offering reliable performance in demanding environments.

Features & Benefits


• Locking shut-off mechanism enhances operational safety
• Versatile 3-port configuration allows flexible connections
• G 1/4 connection fits standard pneumatic systems
• Pneumatic relay functionality maximises control effectiveness
• High-pressure capability ensures reliability in critical applications
• Built from durable aluminium die-cast for enhanced longevity

Applications


• Utilised in automation systems for fluid control
• Implemented in HVAC systems for precise pneumatic control
• Suitable for various industrial requiring pneumatic relays
• Used in maintenance and repair of pneumatic machinery

What is the range of temperatures this valve can operate in?


The valve can function efficiently within a temperature range of -5 °C to +60 °C, making it suitable for diverse operating conditions.

How many positions does this valve have, and what does that imply for its operation?


It features two positions, allowing for straightforward on/off control, which simplifies the operation in pneumatic systems.

What benefits does the locking shut-off feature provide?


The locking shut-off feature prevents accidental activation, ensuring safety during maintenance and operation in industrial settings.

How is the valve's durability ensured in demanding applications?


Constructed from aluminium die-cast, the valve offers robustness and resistance to wear, making it ideal for high-demand environments.
