Festo Manual 4/3 Way, Pressurised Pneumatic Manual Control Valve VHER Series, G 1/4, 8mm, 3515683
- RS Stock No.:
- 289-0605
- Mfr. Part No.:
- VHER-P-H-B43U-B-G14
- Brand:
- Festo
Subtotal (1 unit)*
£101.25
(exc. VAT)
£121.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £101.25 |
*price indicative
- RS Stock No.:
- 289-0605
- Mfr. Part No.:
- VHER-P-H-B43U-B-G14
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Control Mechanism | Manual | |
Connection Port Thread | G 1/4 | |
Function | 4/3 Way, Pressurised | |
Thread Size | 8mm | |
Thread Standard | G | |
Manufacturer Series | VHER | |
Maximum Operating Pressure | 8bar | |
Minimum Operating Temperature | -5°C | |
Maximum Operating Temperature | +50°C | |
Model Number p | 3515683 | |
Select all | ||
---|---|---|
Brand Festo | ||
Control Mechanism Manual | ||
Connection Port Thread G 1/4 | ||
Function 4/3 Way, Pressurised | ||
Thread Size 8mm | ||
Thread Standard G | ||
Manufacturer Series VHER | ||
Maximum Operating Pressure 8bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +50°C | ||
Model Number p 3515683 | ||
- COO (Country of Origin):
- BR

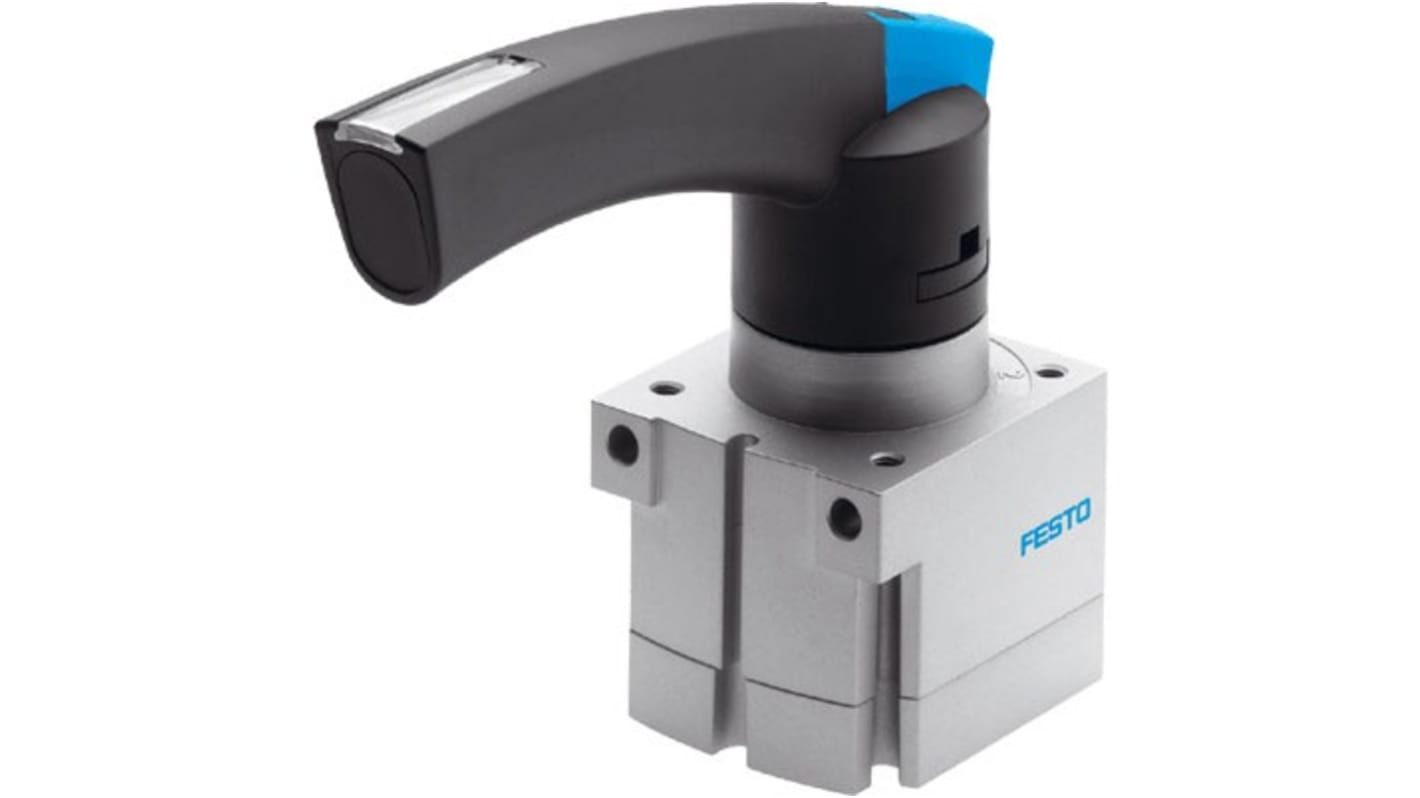

The Festo Hand lever valve is a versatile pneumatic valve designed for pressurized 4/3-way valve function. With a construction width of 56mm and a standard nominal flow rate of 1500 l/min, this valve is suitable for a wide range of industrial applications.
Manual actuation for precise control
Rotary gate valve design for efficient flow regulation
Hard sealing principle for durability
Direct piloting for quick response
Suitable for vacuum operation at connection 3 and dual-pressure operation
Explosion protection for safe use in Zone 2 and Zone 22
Corrosion resistance class CRC 2 for moderate corrosion stress
Lubricated operation possible for enhanced performance
Compliant with RoHS standards for environmental friendliness
Rotary gate valve design for efficient flow regulation
Hard sealing principle for durability
Direct piloting for quick response
Suitable for vacuum operation at connection 3 and dual-pressure operation
Explosion protection for safe use in Zone 2 and Zone 22
Corrosion resistance class CRC 2 for moderate corrosion stress
Lubricated operation possible for enhanced performance
Compliant with RoHS standards for environmental friendliness
