Norgren 5/3 Mechanical Valve X334 Series, G 1/8, 1/8, III B
- RS Stock No.:
- 218-0356
- Mfr. Part No.:
- X3343802
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£161.24
(exc. VAT)
£193.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £161.24 |
| 5 - 9 | £158.02 |
| 10 + | £154.79 |
*price indicative
- RS Stock No.:
- 218-0356
- Mfr. Part No.:
- X3343802
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Connection Port Thread | G 1/8 | |
| Function | 5/3 | |
| Thread Size | 1/8 | |
| Thread Standard | G | |
| Manufacturer Series | X334 | |
| Maximum Operating Pressure | 8bar | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | +50°C | |
| Model Number p | III B | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Connection Port Thread G 1/8 | ||
Function 5/3 | ||
Thread Size 1/8 | ||
Thread Standard G | ||
Manufacturer Series X334 | ||
Maximum Operating Pressure 8bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +50°C | ||
Model Number p III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

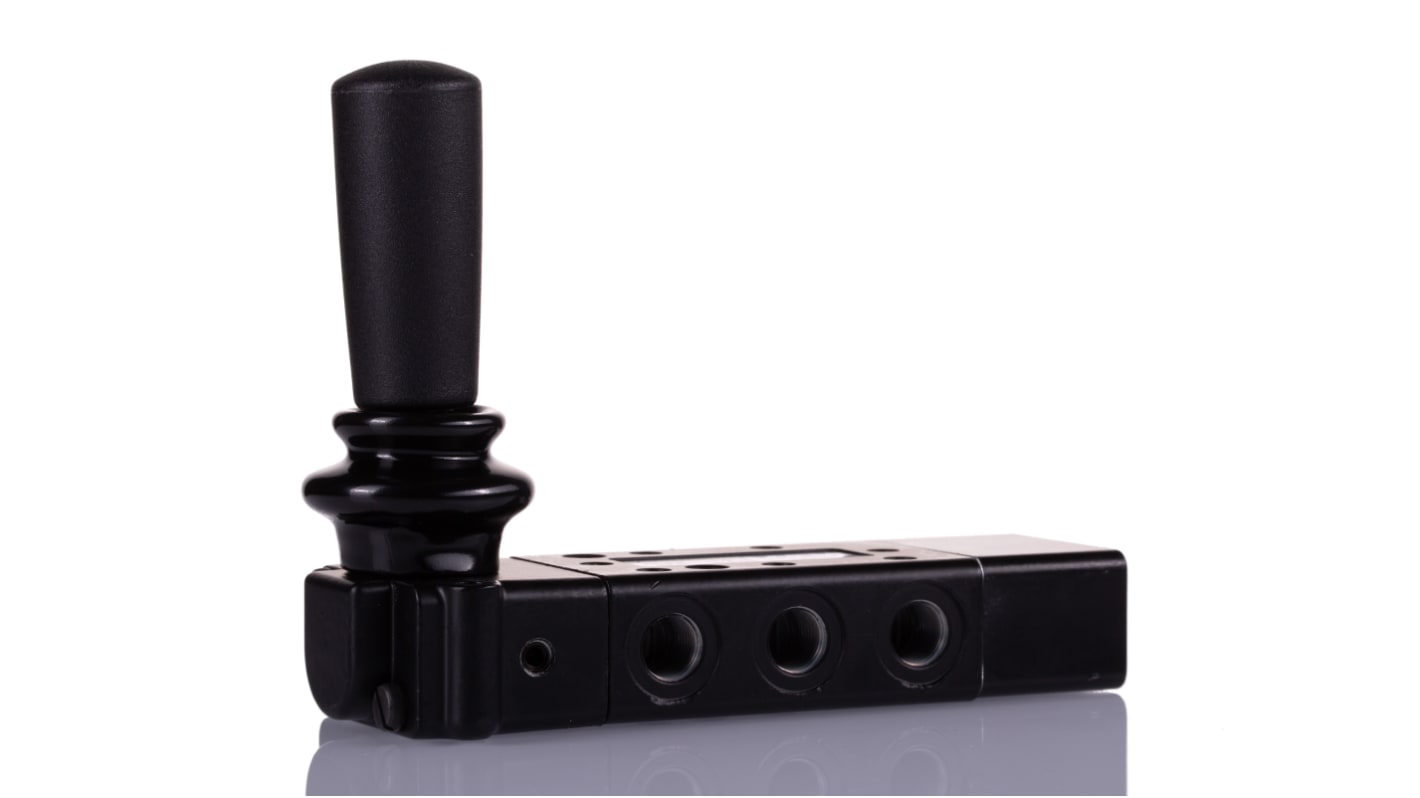

IMI Norgren Mechanical Valve, Lever and Spring Actuated, 335L/min Flow Rate - X334 Series - X3343802
Use this IMI Norgren mechanical valve to channel air to cylinders in your pneumatic systems. It has a durable zinc body that can withstand corrosion and impact, making it suitable for use in harsh environments. With a lever actuator and 5/3-way construction, the unit is useful for multi-directional flow. Thanks to a narrow 21mm width, you can install it in setups with limited space. Nitrile rubber seals block out contaminants and prevent air leakages, so you can be sure of optimal performance.
Features & Benefits
• Wide operating temperature range of 0°C to +70°C for use in challenging conditions
• Panel mounting is simple and doesn't need complex tools
• Can be operated using both lubricated and non-lubricated air for versatility
• Panel mounting is simple and doesn't need complex tools
• Can be operated using both lubricated and non-lubricated air for versatility
Applications
• Agricultural equipment
• Automotive industry
• Automotive industry
What's the operating pressure range of this valve?
This valve functions in a pressure range of 0 to 10 bar, making it suitable for use in both light-duty and heavy-duty applications.
Can I use damp compressed air for this valve?
No, the air supply must be dry to prevent the formation of ice at temperatures below +2°C, which may cause blockages.
