Norgren Flow Controller Pneumatic Manual Control Valve Pneufit C Series, Push In 8 mm, III B
- RS Stock No.:
- 212-9168
- Mfr. Part No.:
- C00GF0800
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£15.94
(exc. VAT)
£19.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 118 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.94 |
| 5 - 9 | £15.30 |
| 10 + | £14.67 |
*price indicative
- RS Stock No.:
- 212-9168
- Mfr. Part No.:
- C00GF0800
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Function | Flow Controller | |
| Thread Size | Push In 8 mm | |
| Thread Standard | Push In | |
| Manufacturer Series | Pneufit C | |
| Control Button/Switch Colour | Red | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | PBT | |
| Maximum Flow Rate | 800L/min | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +60°C | |
| Number of Ports | 3 | |
| Number of Positions | 2 | |
| Model Number p | III B | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Function Flow Controller | ||
Thread Size Push In 8 mm | ||
Thread Standard Push In | ||
Manufacturer Series Pneufit C | ||
Control Button/Switch Colour Red | ||
Maximum Operating Pressure 10 bar | ||
Body Material PBT | ||
Maximum Flow Rate 800L/min | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +60°C | ||
Number of Ports 3 | ||
Number of Positions 2 | ||
Model Number p III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- KR

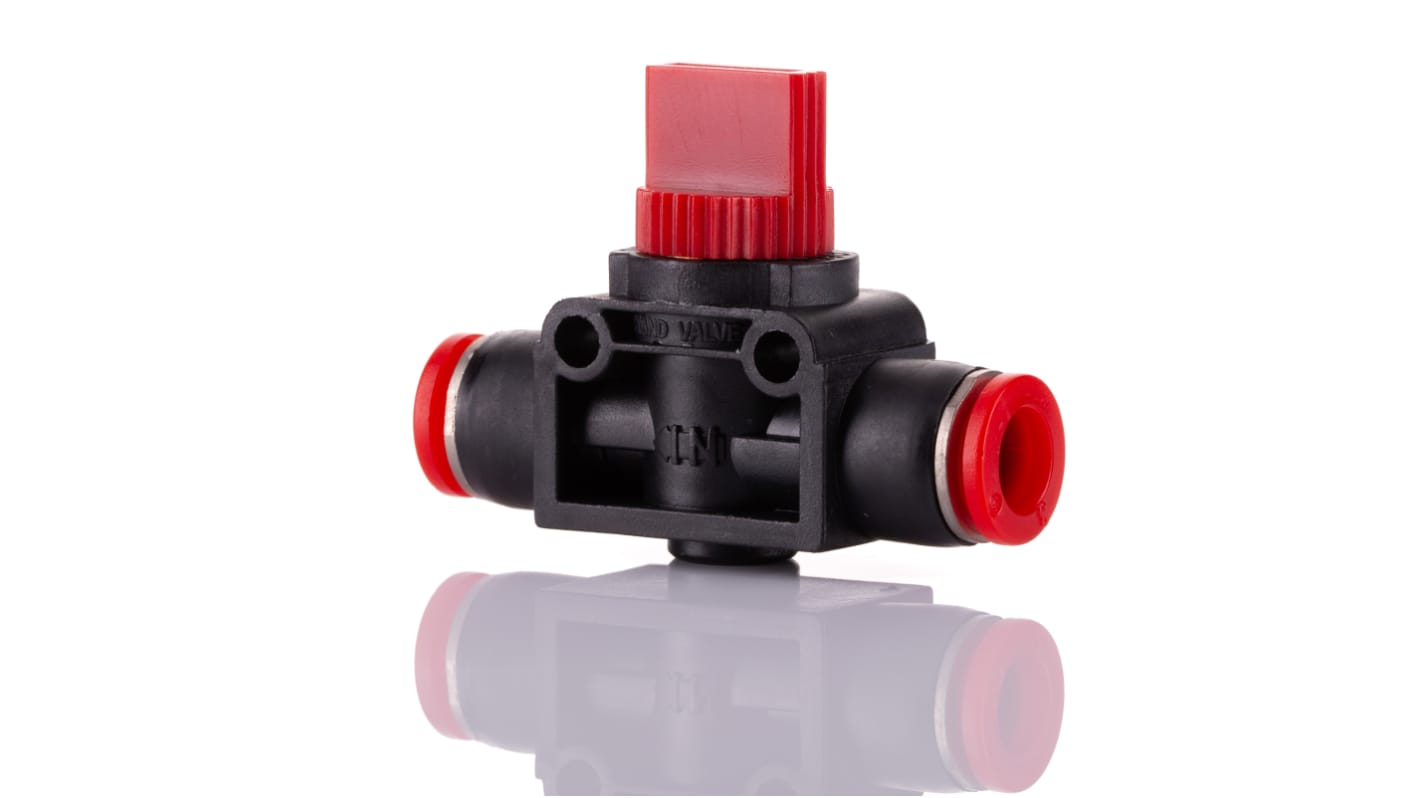

IMI Norgren Pneumatic Manual Control Valve, 2 Ports, 10 Bar Maximum Pressure - Pneufit C Series - C00GF0800
Opt for this manual control valve from IMI Norgren to efficiently control the flow of air in your pneumatic system. Simply turn its handle to adjust the flow rate or to cut off the supply to a pneumatic device. Push-in fittings on either end of the valve mean you can quickly attach hoses without using any tools. Its integrated grab ring ensures tubes are held securely, even in pressures of up to 10 bar. Thanks to a release ring, you can easily remove an air pipe with minimal risk of damage.
Features & Benefits
• PBT body resists corrosion and contamination for an extended service life in harsh environments
• Nitrile rubber O-ring for optimal sealing to reduce the risk of pressure loss
• Operating temperature range of 0°C to +60°C for safe industrial use
• Red release ring is easy to identify
• Nitrile rubber O-ring for optimal sealing to reduce the risk of pressure loss
• Operating temperature range of 0°C to +60°C for safe industrial use
• Red release ring is easy to identify
Applications
• Shipyards and quarries
• Lifting and hoisting equipment
• Construction industry
• Robotics systems
• Lifting and hoisting equipment
• Construction industry
• Robotics systems
What type of tubing is compatible with this control valve?
You can safely use both polyamide and softer polyurethane tubing with this control valve.
