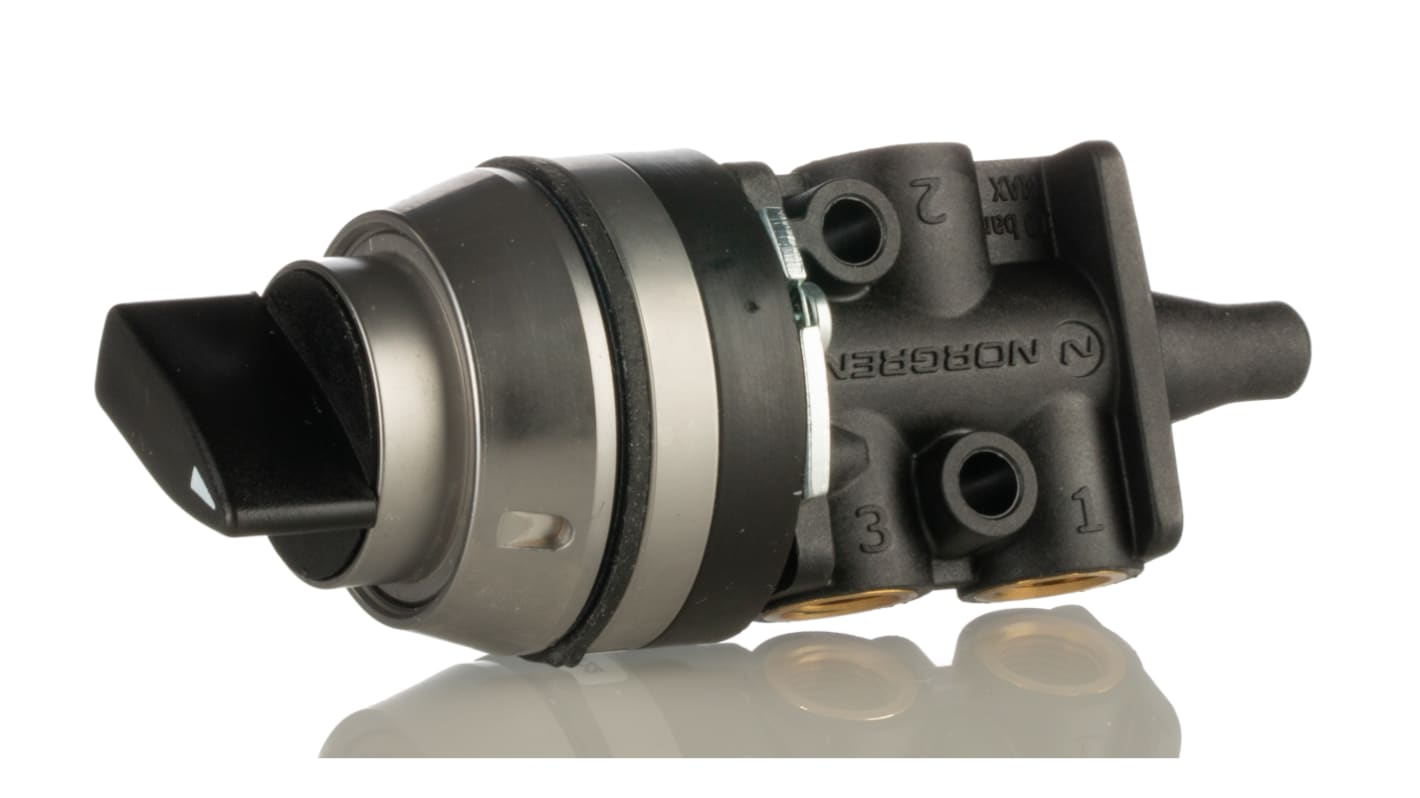

Norgren Rotary Knob 3/2 Pneumatic Manual Control Valve 03 Series, G 1/8, 1/8in, III B
- RS Stock No.:
- 210-2928
- Mfr. Part No.:
- 03041902
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£299.78
(exc. VAT)
£359.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £299.78 |
5 - 9 | £290.48 |
10 + | £281.19 |
*price indicative
- RS Stock No.:
- 210-2928
- Mfr. Part No.:
- 03041902
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Control Mechanism | Rotary Knob | |
Connection Port Thread | G 1/8 | |
Function | 3/2 | |
Thread Size | 1/8in | |
Thread Standard | G | |
Manufacturer Series | 03 | |
Control Button/Switch Colour | Black | |
Maximum Operating Pressure | 10 bar | |
Body Material | Die Cast Aluminium Alloy | |
Maximum Flow Rate | 335L/min | |
Minimum Operating Temperature | 0°C | |
Maximum Operating Temperature | +70°C | |
Number of Positions | 2 | |
Number of Ports | 3 | |
Model Number p | III B | |
Select all | ||
---|---|---|
Brand Norgren | ||
Control Mechanism Rotary Knob | ||
Connection Port Thread G 1/8 | ||
Function 3/2 | ||
Thread Size 1/8in | ||
Thread Standard G | ||
Manufacturer Series 03 | ||
Control Button/Switch Colour Black | ||
Maximum Operating Pressure 10 bar | ||
Body Material Die Cast Aluminium Alloy | ||
Maximum Flow Rate 335L/min | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +70°C | ||
Number of Positions 2 | ||
Number of Ports 3 | ||
Model Number p III B | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren Pneumatic Manual Control Valve, 3/2 Function, 335L/min Flow Rate - 03 Series - 03041902
This manual control valve from IMI Norgren regulates the movement of compressed air in your pneumatic equipment. It has a 3/2 function which means it controls three different ports by moving in two directions. For versatility, it also enables a dual air supply in the system. A maximum flow rate of 335L/min makes it suitable for use in high-flow applications. The unit features a rotary knob that lets you easily adjust its movement to suit your application. You can mount this control valve in large cylinders with bores up to 50mm.
Features & Benefits
• Broad operating pressure range between -0.9 and 10 bar for versatile use
• Durable polymer body is corrosion-resistant to withstand demanding conditions
• Comes with pre-drilled through-holes in its body for quick assembly
• Wide operating temperature range between 0°C and +70°C to withstand harsh settings
• Durable polymer body is corrosion-resistant to withstand demanding conditions
• Comes with pre-drilled through-holes in its body for quick assembly
• Wide operating temperature range between 0°C and +70°C to withstand harsh settings
Applications
• Aviation industry
• Packaging industry
• Industrial cylinders
• Packaging industry
• Industrial cylinders
How does this pneumatic control valve work?
This control valve works by opening or closing pneumatic ports to direct the movement of compressed air in your equipment.
