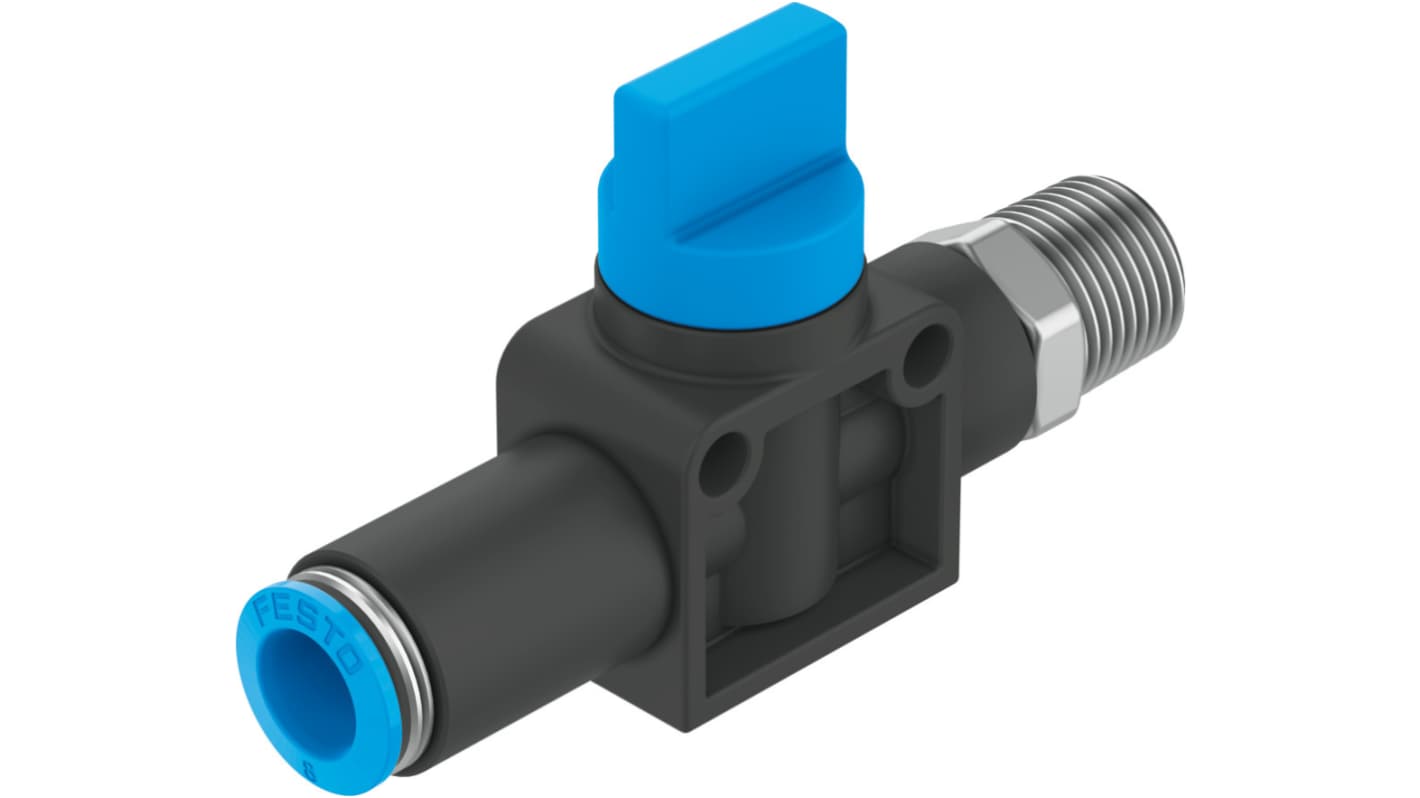

Festo Manual Pneumatic Manual Control Valve HE-3-1/4-QS-8 Series, 153480

View this category

Subtotal (1 unit)*

£21.39

(exc. VAT)

£25.67

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£21.39

*price indicative

RS Stock No.:
203-8521
Mfr. Part No.:
HE-3-1/4-QS-8
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pneumatic Manual Control Valve

Control Mechanism

Manual

Series

HE-3-1/4-QS-8

Maximum Operating Pressure

8 bar

Body Material

Nickel Plated Brass, Polybutylene Terephthalate

Maximum Flow Rate

423.9L/min

Minimum Operating Temperature

-5°C

Valve Function

3/2 Bistable

Maximum Operating Temperature

50°C

Length

64.2mm

Standards/Approvals

RoHS, ISO8573-1:2010

Width

21.7mm

Height

41mm

Number of Ports

3

Thread Size

1/4, 8

Model Number

153480

COO (Country of Origin):
JP

Festo HE-3-1/4-QS-8 Series Pneumatic Manual Control Valve, 3/2 Bistable Valve Function, 1/4 Inch Thread size - HE-3-1/4-QS-8, Numeric Part Number: 153480


This pneumatic manual control valve is designed for automation and control in various applications. With its robust PBT body and a maximum operating pressure of 8 bar, it provides reliable performance across a temperature range of 0°C to +60°C. This valve features three ports and is engineered to facilitate effective flow management in pneumatic systems.

Features & Benefits


• Features a 3/2 bistable design for versatile control

• Manual actuation allows for immediate response

• High-pressure capabilities up to 8 bar enhance reliability

• PBT body is both durable and lightweight

• Corrosion resistance aids in longevity in demanding environments

• Optional lubricated operation ensures smooth functioning

Applications


• Used in automated assembly systems for precise control

• Ideal for pneumatic circuit requiring manual intervention

• Suitable for machinery where high-pressure control is necessary

• Employed in process automation to regulate compressed air flow

• Effective in lightweight construction where space is limited

What are the operating conditions for this valve?


The valve operates effectively between 0 °C and +60 °C with a pressure range of -0.095 MPa to 1 MPa, ensuring compatibility with various pneumatic systems.

How does the design influence the valve's performance in harsh conditions?


Its PBT-reinforced housing offers moderate corrosion resistance, making it suitable for environments that may compromise lesser materials.

Can this valve be mounted in various positions?


Yes, it allows for optional mounting positions, providing flexibility in installation based on specific application requirements.

What materials are used in the construction of this valve?


The valve features a PBT body, nickel-plated brass for the screwed plug, and NBR seals, contributing to its overall durability and efficiency.

Is lubricated operation necessary for optimal performance?


While lubricated operation is possible, it is always required when used, ensuring smooth and efficient valve function.
