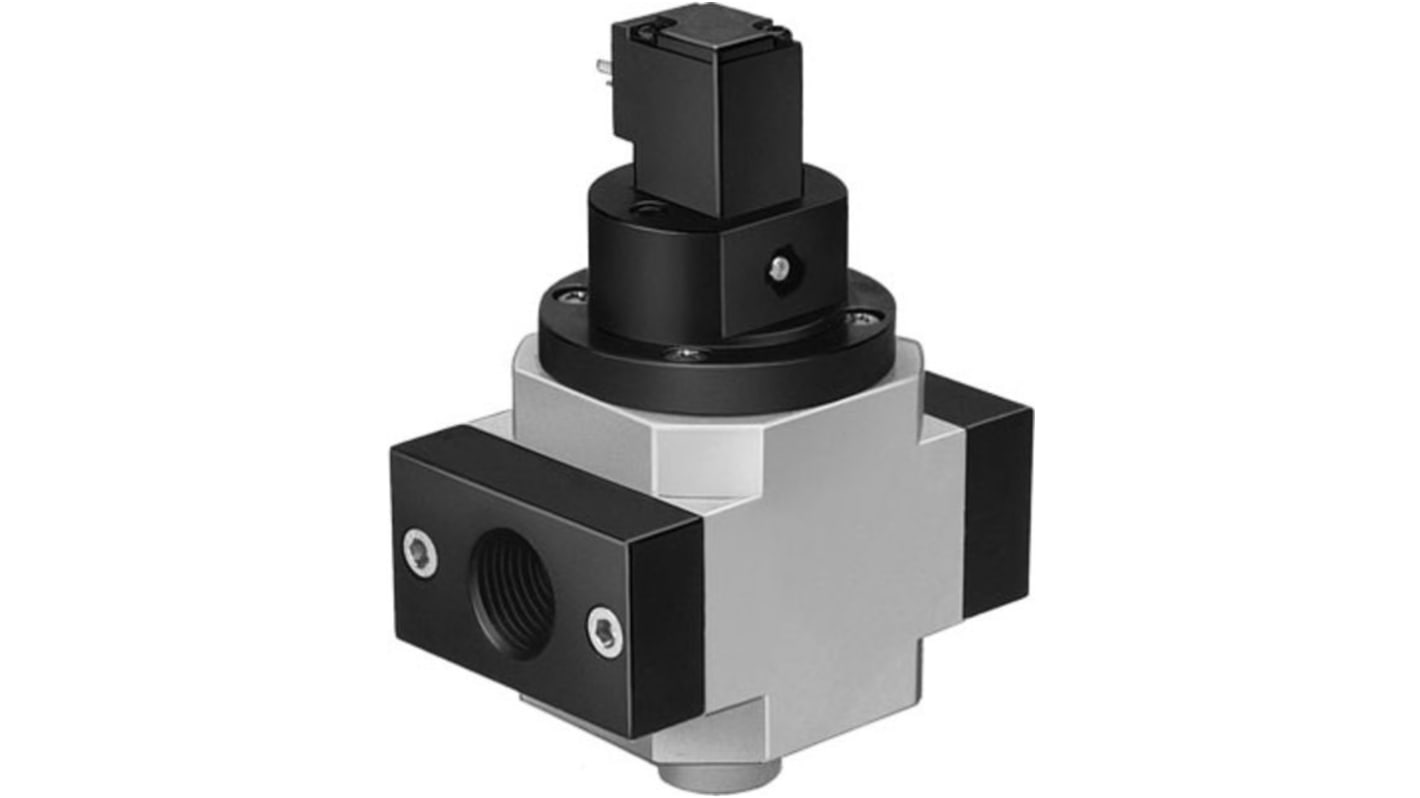

Festo 3/2 Closed, Monostable Pneumatic Manual Control Valve HEE-1-D-MAXI-24 Series, 1, 172953
- RS Stock No.:
- 203-8509
- Mfr. Part No.:
- HEE-1-D-MAXI-24
- Brand:
- Festo
Subtotal (1 unit)*
£197.57
(exc. VAT)
£237.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £197.57 |
*price indicative
- RS Stock No.:
- 203-8509
- Mfr. Part No.:
- HEE-1-D-MAXI-24
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Function | 3/2 Closed, Monostable | |
| Thread Size | 1 | |
| Thread Standard | G | |
| Manufacturer Series | HEE-1-D-MAXI-24 | |
| Maximum Operating Pressure | 8bar | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | +50°C | |
| Model Number p | 172953 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Function 3/2 Closed, Monostable | ||
Thread Size 1 | ||
Thread Standard G | ||
Manufacturer Series HEE-1-D-MAXI-24 | ||
Maximum Operating Pressure 8bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +50°C | ||
Model Number p 172953 | ||
- COO (Country of Origin):
- HU
The festo non-return valve HB-1/8-QS-4 Flow rate from the QS plug connector to the male thread. It has operating pressure –1 to 10 bar. The operating medium compressed air in accordance with ISO 85731:2010. The peration with lubricated medium possible (i
Valve function Non-return function
Pneumatic connection, port 1 QS-4
Pneumatic connection, port 2 R1/8
Mounting type Threaded
Standard nominal flow rate 142 l/min
Pneumatic connection, port 1 QS-4
Pneumatic connection, port 2 R1/8
Mounting type Threaded
Standard nominal flow rate 142 l/min
