Festo 2/2 Bistable Pneumatic Manual Control Valve 1/2 Series, 6, 153484
- RS Stock No.:
- 202-2553
- Mfr. Part No.:
- QH-QS-6
- Brand:
- Festo
Subtotal (1 unit)*
£15.37
(exc. VAT)
£18.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £15.37 |
*price indicative
- RS Stock No.:
- 202-2553
- Mfr. Part No.:
- QH-QS-6
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 2/2 Bistable | |
Thread Size | 6 | |
Manufacturer Series | 1/2 | |
Maximum Operating Pressure | 8bar | |
Minimum Operating Temperature | -5°C | |
Maximum Operating Temperature | +50°C | |
Model Number p | 153484 | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 2/2 Bistable | ||
Thread Size 6 | ||
Manufacturer Series 1/2 | ||
Maximum Operating Pressure 8bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +50°C | ||
Model Number p 153484 | ||
- COO (Country of Origin):
- JP

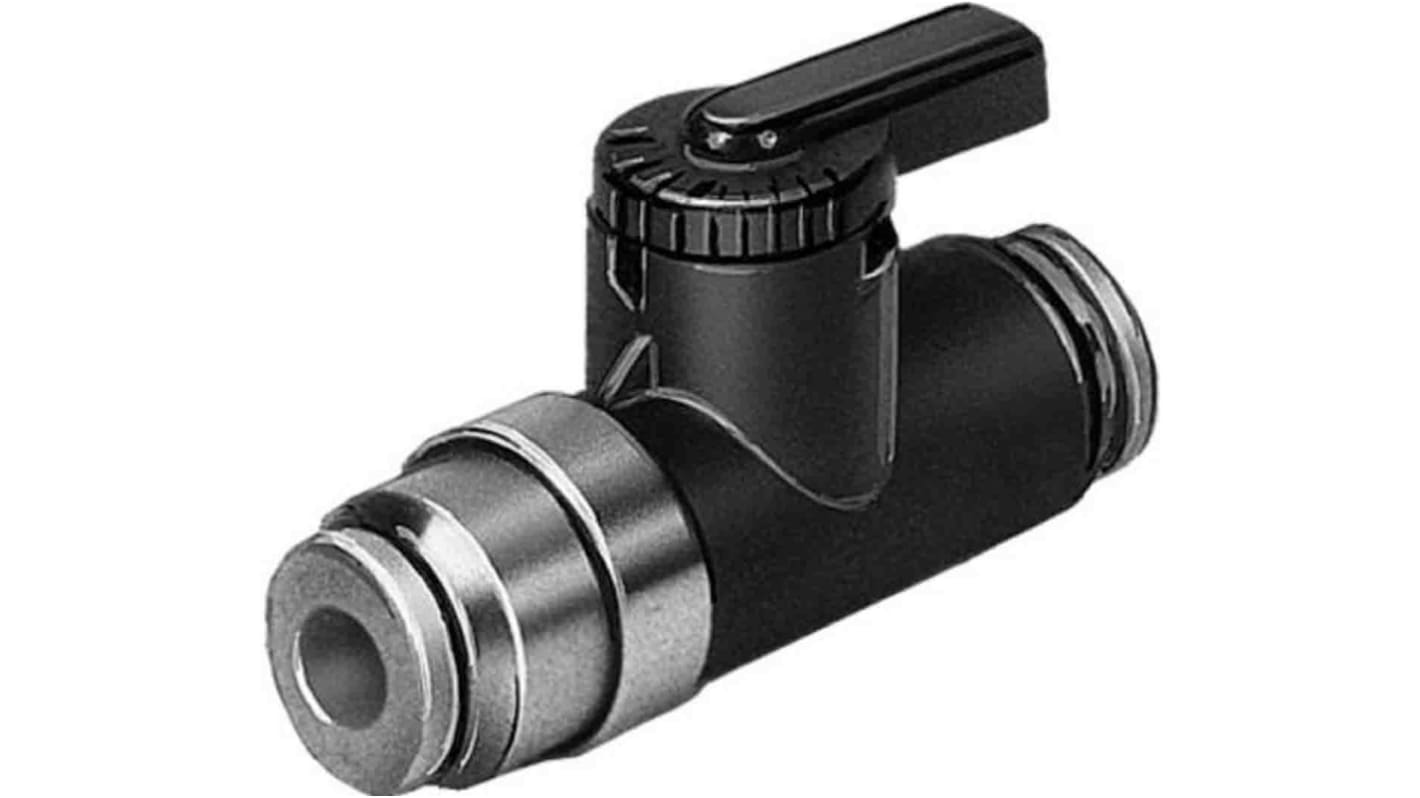

Festo Pneumatic Manual Control Valve, Manual Actuation, 10 Bar Maximum Operating Pressure - QH-QS-6
Use this Festo pneumatic manual control valve to stop or start your air-pressure system reliably. It supports a 533L/min flow rate that suits low-powered vacuum systems. The ball valve design allows for smooth opening with minimal resistance. Despite its small 4mm nominal size, it reliably handles between 1 to 10 bar operating pressure. For easy operations, when you need to stop airflow, simply turn the handle 90° clockwise.
Features & Benefits
• Low 12.5 g weight won't put excess strain on your system
• Wide ambient temperature range between 0°C and +60°C for use in demanding settings
• Dimensions of 41.5 (L) x 6mm (D) for use in small pneumatic setups
• Wide ambient temperature range between 0°C and +60°C for use in demanding settings
• Dimensions of 41.5 (L) x 6mm (D) for use in small pneumatic setups
Applications
• Agricultural equipment
• Assembly lines
• Automation systems
• Manufacturing facilities
• Assembly lines
• Automation systems
• Manufacturing facilities
What accessories go with this valve?
You can use this product with a push-in connector (121-6244) and a PUN-H series air hose (122-8470) to add manual control to your system.
What's a bistable 2/2 valve?
A 2/2 bistable valve like this one has two ports and two stable positions, in this case, open and closed. It's used in simple setups where you only need to turn air pressure on or off.
