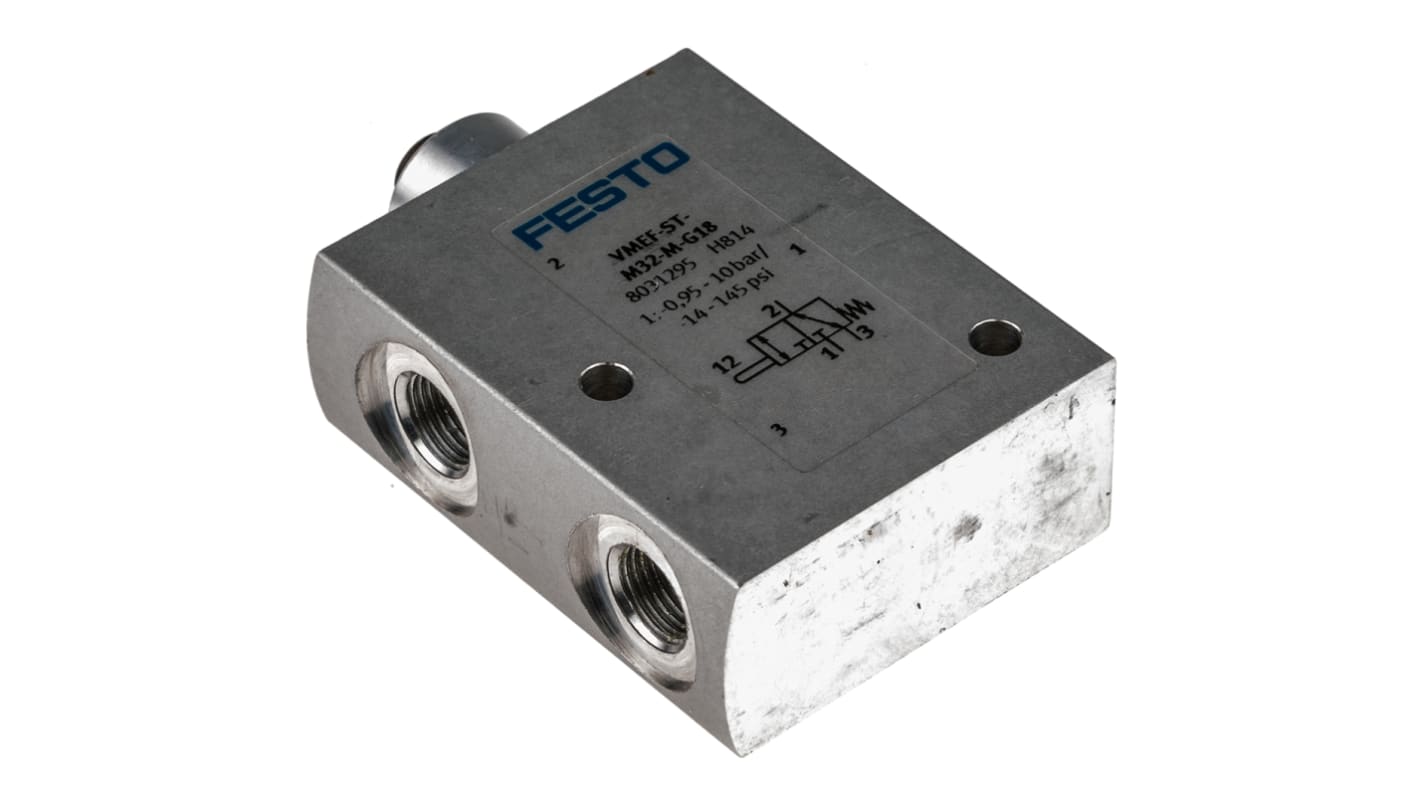

Festo Plunger 3/2 Pneumatic Manual Control Valve VMEF Series, G 1/8, 1/8in, 8031295
- RS Stock No.:
- 181-6407
- Mfr. Part No.:
- VMEF-ST-M32-M-G18
- Brand:
- Festo
Save 3% when you buy 5 units
Subtotal (1 unit)*
£49.58
(exc. VAT)
£59.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £49.58 |
5 + | £47.60 |
*price indicative
- RS Stock No.:
- 181-6407
- Mfr. Part No.:
- VMEF-ST-M32-M-G18
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Control Mechanism | Plunger | |
Connection Port Thread | G 1/8 | |
Function | 3/2 | |
Thread Size | 1/8in | |
Thread Standard | BSPP | |
Manufacturer Series | VMEF | |
Control Button/Switch Colour | Grey | |
Maximum Operating Pressure | 10 bar | |
Body Material | Aluminium Alloy | |
Maximum Flow Rate | 750L/min | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +60°C | |
Number of Ports | 3 | |
Number of Positions | 2 | |
Model Number p | 8031295 | |
Select all | ||
---|---|---|
Brand Festo | ||
Control Mechanism Plunger | ||
Connection Port Thread G 1/8 | ||
Function 3/2 | ||
Thread Size 1/8in | ||
Thread Standard BSPP | ||
Manufacturer Series VMEF | ||
Control Button/Switch Colour Grey | ||
Maximum Operating Pressure 10 bar | ||
Body Material Aluminium Alloy | ||
Maximum Flow Rate 750L/min | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Number of Ports 3 | ||
Number of Positions 2 | ||
Model Number p 8031295 | ||
- COO (Country of Origin):
- BR
Festo Pneumatic Manual Control Valve, 10 Bar Maximum Operating Pressure, 20mm Width - VMEF-ST-M32-M-G18
Get a firm hold on airflow through your system with this pneumatic manual control valve from Festo. It has a 3/2 plunger function, so you get a faster response time than a spool control mechanism. With a 46N actuating force, the valve can open or close with minimal delay, boosting efficiency. Thanks to a wide operating temperature range between -10°C and +60°C, you can trust it to withstand the demands of extreme environments. Through-hole mounting ensures a secure hold, enabling you to use this device in settings that experience frequent vibration.
Features & Benefits
• Anodised wrought aluminium alloy housing for resistance to corrosion and impact
• Reversible flow direction means it can supply or exhaust air
• Standard G1/8 port thread connection offers wide compatibility
• Reversible flow direction means it can supply or exhaust air
• Standard G1/8 port thread connection offers wide compatibility
Applications
• Material handling
• Food and beverage processing
• Automotive assembly plants
• Food and beverage processing
• Automotive assembly plants
How much does this control valve weigh?
It weighs just 116g, making it a lightweight option that's easy to handle.
What does a mechanical spring reset do?
The mechanical spring reset ensures that the valve returns to its default position when the control signal is removed. This provides a fail-safe mechanism that helps prevent unintended operation.
