Festo Push Button Pneumatic Relay Pneumatic Manual Control Valve, Metric M22 x 1.5, M22, 9297
- RS Stock No.:
- 121-5598
- Mfr. Part No.:
- PR-22-RT
- Brand:
- Festo
Save 8% when you buy 10 units
Subtotal (1 unit)*
£22.83
(exc. VAT)
£27.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £22.83 |
5 - 9 | £21.94 |
10 + | £21.00 |
*price indicative
- RS Stock No.:
- 121-5598
- Mfr. Part No.:
- PR-22-RT
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Control Mechanism | Push Button | |
Connection Port Thread | Metric M22 x 1.5 | |
Function | Pneumatic Relay | |
Thread Size | M22 | |
Thread Standard | Metric | |
Control Button/Switch Colour | Red | |
Maximum Operating Pressure | 8bar | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +60°C | |
Model Number p | 9297 | |
Select all | ||
---|---|---|
Brand Festo | ||
Control Mechanism Push Button | ||
Connection Port Thread Metric M22 x 1.5 | ||
Function Pneumatic Relay | ||
Thread Size M22 | ||
Thread Standard Metric | ||
Control Button/Switch Colour Red | ||
Maximum Operating Pressure 8bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Model Number p 9297 | ||
- COO (Country of Origin):
- TW

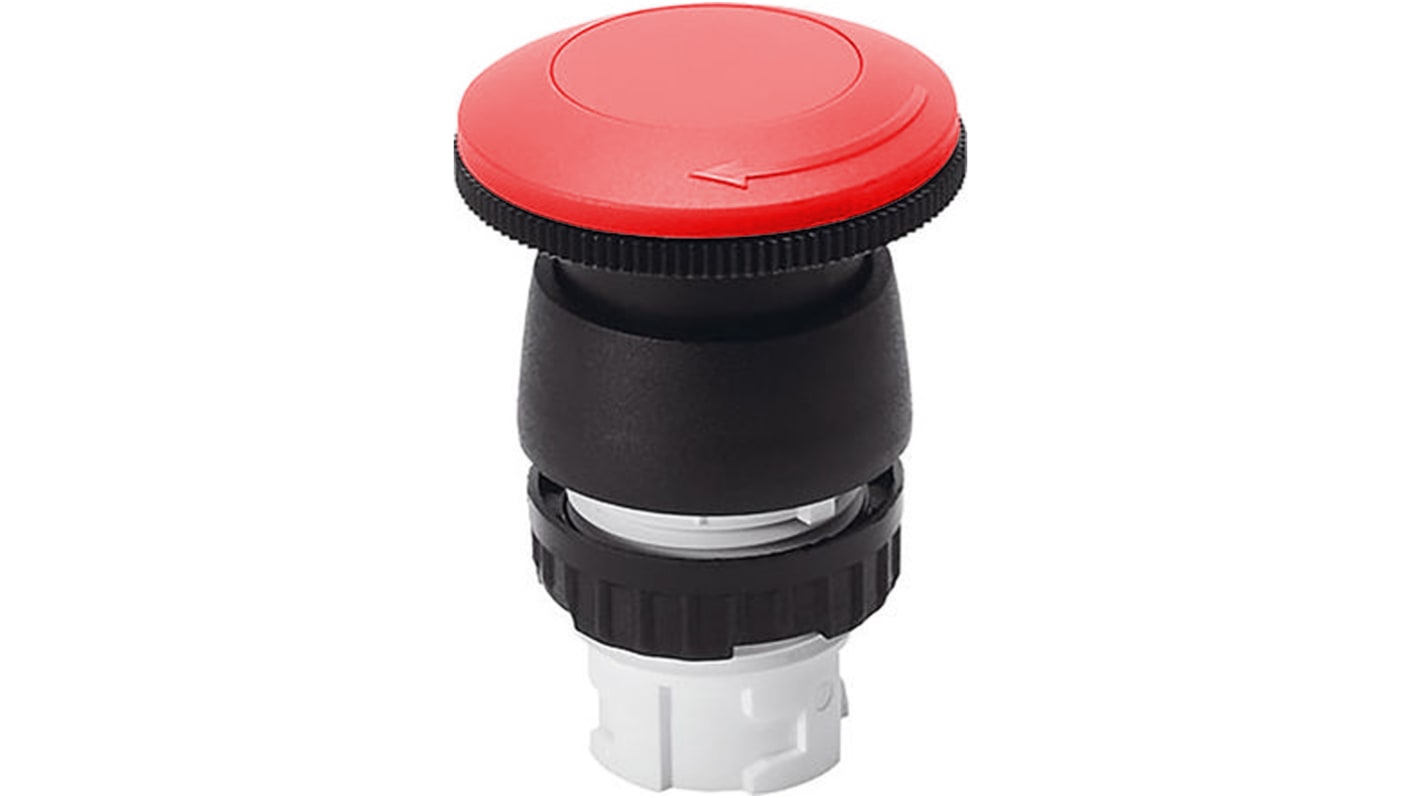

Festo Push-Button Pneumatic Manual Control Valve - PR-22-RT
Use this push-button actuator from Festo to control manually activated valves. It has a mushroom push-button design that's used as an emergency stop, making it simple to halt your pneumatic processes in the event of a safety hazard. The component is made of a plastic material that provides insulation and protects against electrical short circuits. A spring mechanism ensures the button returns smoothly to its original position after being pressed. Use this actuator with any of Festo's SV, SVS and SVOS series of manually actuated valves.
• Red colour makes it easy to see and clearly identifiable
• Compact design ideal for use in tight spaces
• Small actuating force of 25 N, so it's easy to press down quickly
• Compact design ideal for use in tight spaces
• Small actuating force of 25 N, so it's easy to press down quickly
Application Information
• Oil and gas industries
• Pharmaceutical applications
• Industrial automation processes
• Water treatment plants
• Pharmaceutical applications
• Industrial automation processes
• Water treatment plants
Is this actuator suitable for use in industrial environments?
This push-button actuator has an IP (ingress protection) rating of 40, meaning it's protected against tools and small wires greater than 1 mm in size. The plastic material is resistant to impact and corrosion, so it can withstand demanding environmental conditions.
