- RS Stock No.:
- 220-3536
- Mfr. Part No.:
- C00D30604
- Brand:
- Norgren
Available to back order for despatch 21/05/2024
Added
Price 1 Bag of 5
£21.34
(exc. VAT)
£25.61
(inc. VAT)
| Bag(s) | Per Bag | Per unit* |
| 1 - 4 | £21.34 | £4.268 |
| 5 - 9 | £20.91 | £4.182 |
| 10 + | £20.49 | £4.098 |
| *price indicative | ||
- RS Stock No.:
- 220-3536
- Mfr. Part No.:
- C00D30604
- Brand:
- Norgren
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- KR

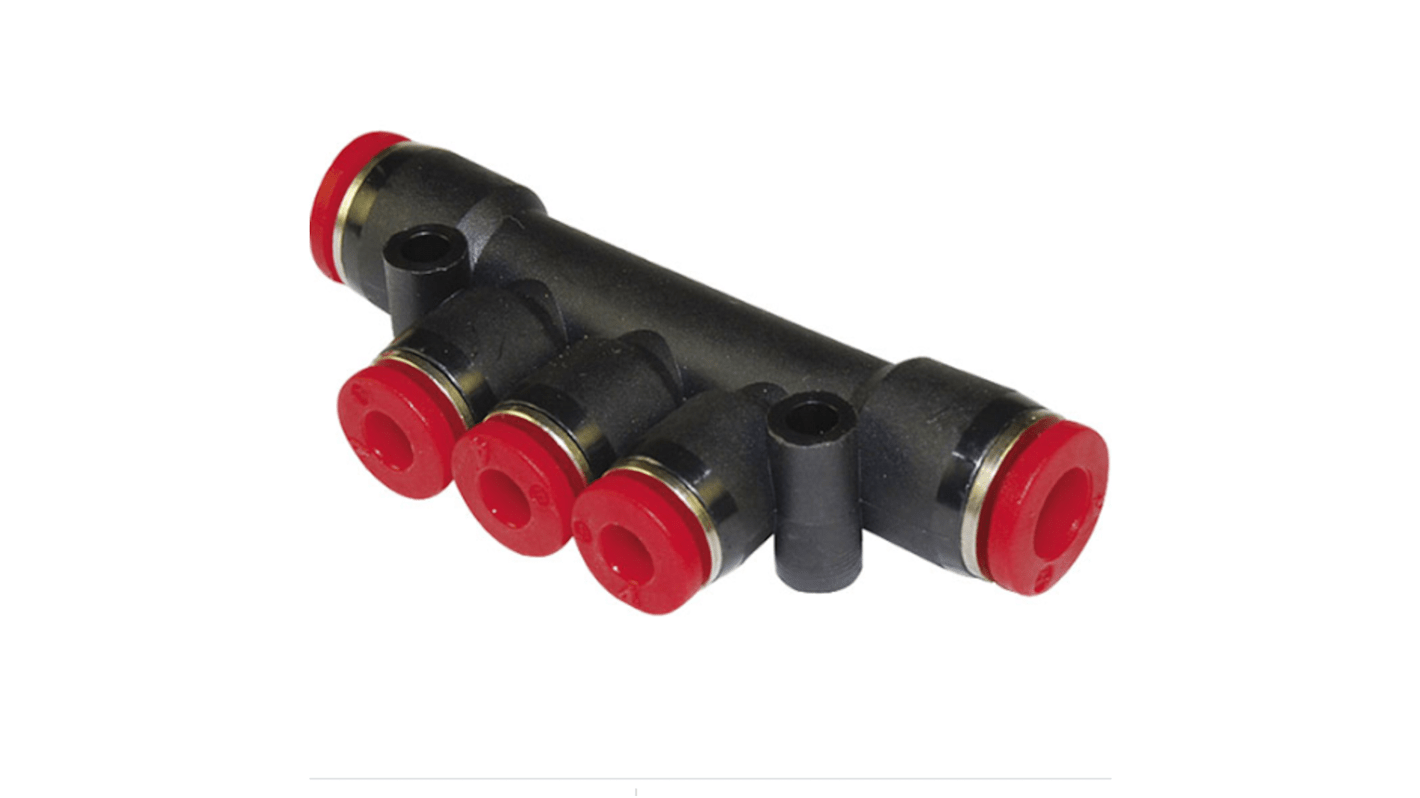

Product Details
The IMI Norgren pneufit C push in fitting uses compressed air to operate different mechanism and has releasable stainless steel grab-ring to grip PA or PUR tube. Assembly time can be reduced to the minimum by using the parallel threaded version, or choose
Ambient/Media temperature -20°C to +60 °C
Operating pressure of 10 bar max.
Vacuum is 750mm of Hg
Operating pressure of 10 bar max.
Vacuum is 750mm of Hg
Specifications
Attribute | Value |
|---|---|
| Number of Outlet Ports | 3 |
| Outlet Port | Push In 6 mm |
| Number of Inlet Ports | 2 |
| Inlet Port | Push In 4 mm |
| Manufacturer Series | Pneufit C |
| Material | PBT |
| Maximum Operating Pressure | 10bar |
| Maximum Operating Temperature | 60°C |
| Outlet Port - Connection Type | Push In |
| Inlet Port - Tube Size | 4mm |
| Minimum Operating Temperature | 0°C |
| Outlet Port - Tube Size | 6mm |
| Inlet Port - Connection Type | Push In |
| Connection Style | Tube-to-Tube |
