Festo FR 9 Outlet Manifold M3 Female G 1/8

View this category

Subtotal (1 unit)*

£28.72

(exc. VAT)

£34.46

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship from another location
  • Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£28.72

*price indicative

RS Stock No.:
202-3561
Mfr. Part No.:
FR-9-M3-B
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Number of Outlet Ports

9

Outlet Port

G 1/8 Female

Number of Inlet Ports

1

Inlet Port

M3 Female

Manufacturer Series

FR

Material

Aluminium

Maximum Operating Pressure

16 bar

Outlet Port - Thread Size

1/8in

Maximum Operating Temperature

80°C

Outlet Port - Gender

Female

Outlet Port - Thread Standard

Metric

Inlet Port - Thread Size

1/8in

Inlet Port - Thread Standard

G

Inlet Port - Gender

Female

Minimum Operating Temperature

-10°C

Standards Met

RoHS Compliant

Connection Style

Threaded

Outlet Port - Connection Type

Threaded

Inlet Port - Connection Type

Threaded

COO (Country of Origin):
IN

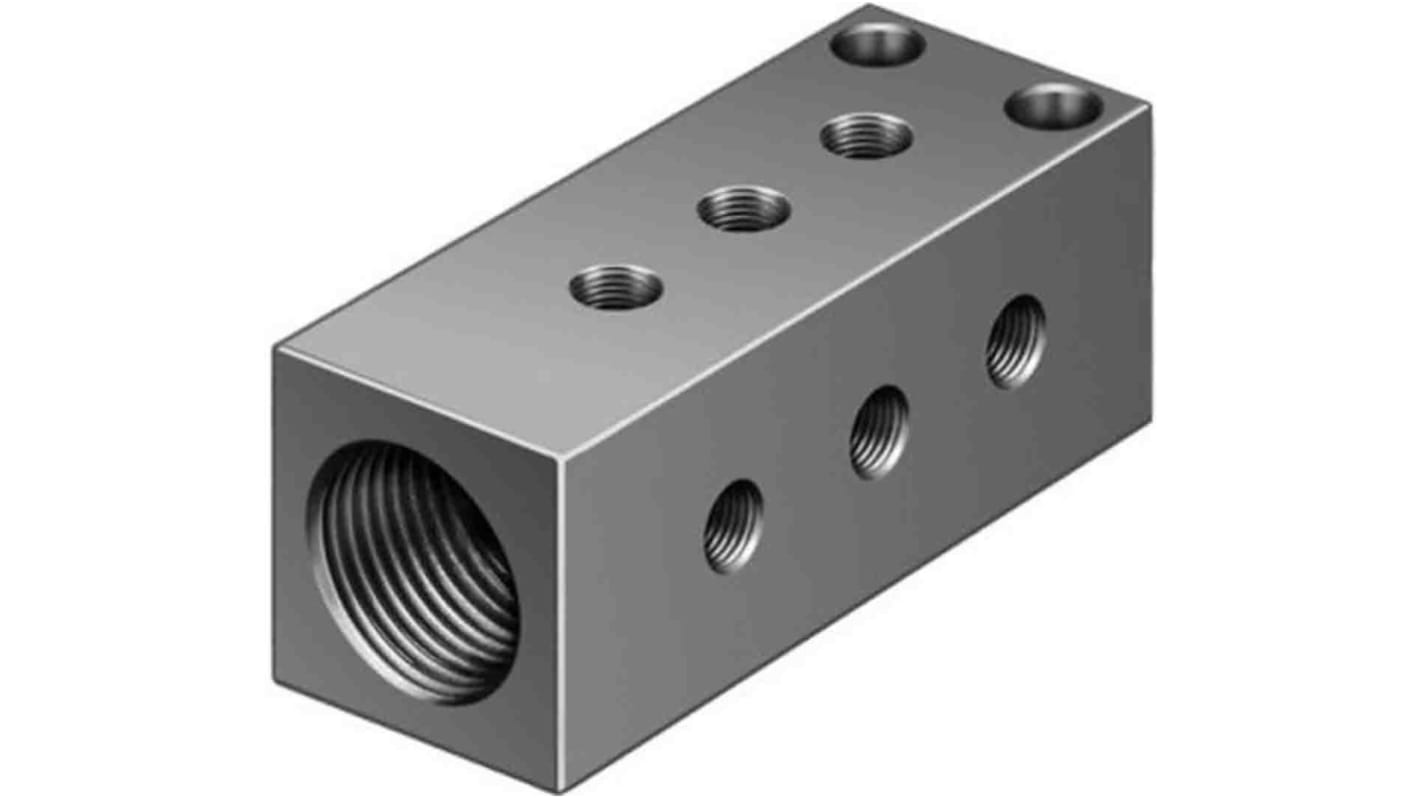

Festo Distributor Block, 0 to 16 Bar Operating Pressure Range, 9 Outputs - FR-9-M3-B


To keep your pneumatic system purring, use this distributor block from Festo to channel compressed air around it. The unit has one inlet port and nine outlet channels, so you can energise multiple components like transducers and air preparation parts at the same time, reducing the tubing needs of your setup. Thanks to its anodised aluminium body, you can bank on the block's ability to withstand corrosion and impact for long-term use in harsh environments. Thanks to threaded G1/8 and M3 ports, you won't need to hunt around for specialised tools to link components to it.

Features & Benefits


• Wide operating temperature range between -10°C and +80°C for use in challenging conditions
• Light weight of 15g makes it easy to handle during installation
• Broad operating pressure range of 0 to 16 bar for versatile use in low-pressure and high-pressure applications

Applications


• Metalworking
• Medical equipment
• Process and packaging plants

Can I use a lubricant for this distributor block?


Yes, lubricated operation is possible on this unit. It's important to note that, if you use lubricant once, you must continue to use it all the time to ensure optimal performance.
