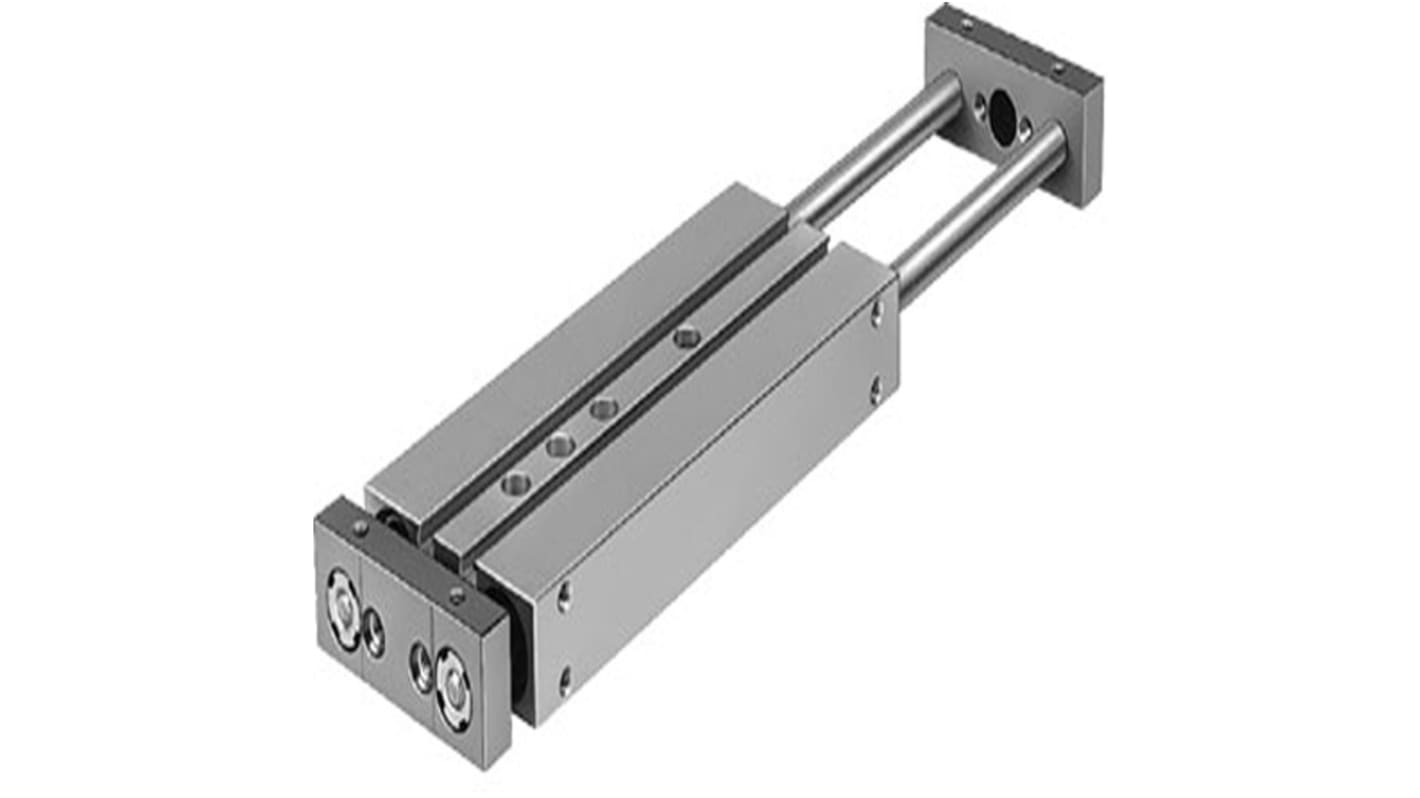

Festo Pneumatic Guided Cylinder - 159963 25 mm Bore, DPZJ Series, 80 mm Double Acting Acting
- RS Stock No.:
- 275-4548
- Mfr. Part No.:
- DPZJ-25-80-P-A-S2
- Brand:
- Festo
Subtotal (1 unit)*
£798.64
(exc. VAT)
£958.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £798.64 |
*price indicative
- RS Stock No.:
- 275-4548
- Mfr. Part No.:
- DPZJ-25-80-P-A-S2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 25 mm | |
| Series | DPZJ | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Wrought Aluminium Alloy | |
| Guide Type | Ball Bearing | |
| Minimum Operating Temperature | -20°C | |
| Maximum Piston Speed | 1m/s | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 8573-1:2010 | |
| Stroke Length | 80mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 25 mm | ||
Series DPZJ | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Elastic | ||
Body Material Wrought Aluminium Alloy | ||
Guide Type Ball Bearing | ||
Minimum Operating Temperature -20°C | ||
Maximum Piston Speed 1m/s | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 8573-1:2010 | ||
Stroke Length 80mm | ||
- COO (Country of Origin):
- DE
The Festo twin cylinder that has high force with excellent protection against rotation, twice the force in half the space. Widely spaced piston rods for high load capacity, it has standard bolt with lock nut enables adjustment of the standard strokes within a range of 10 mm.
Precision stroke adjustment
Different drive combinations
