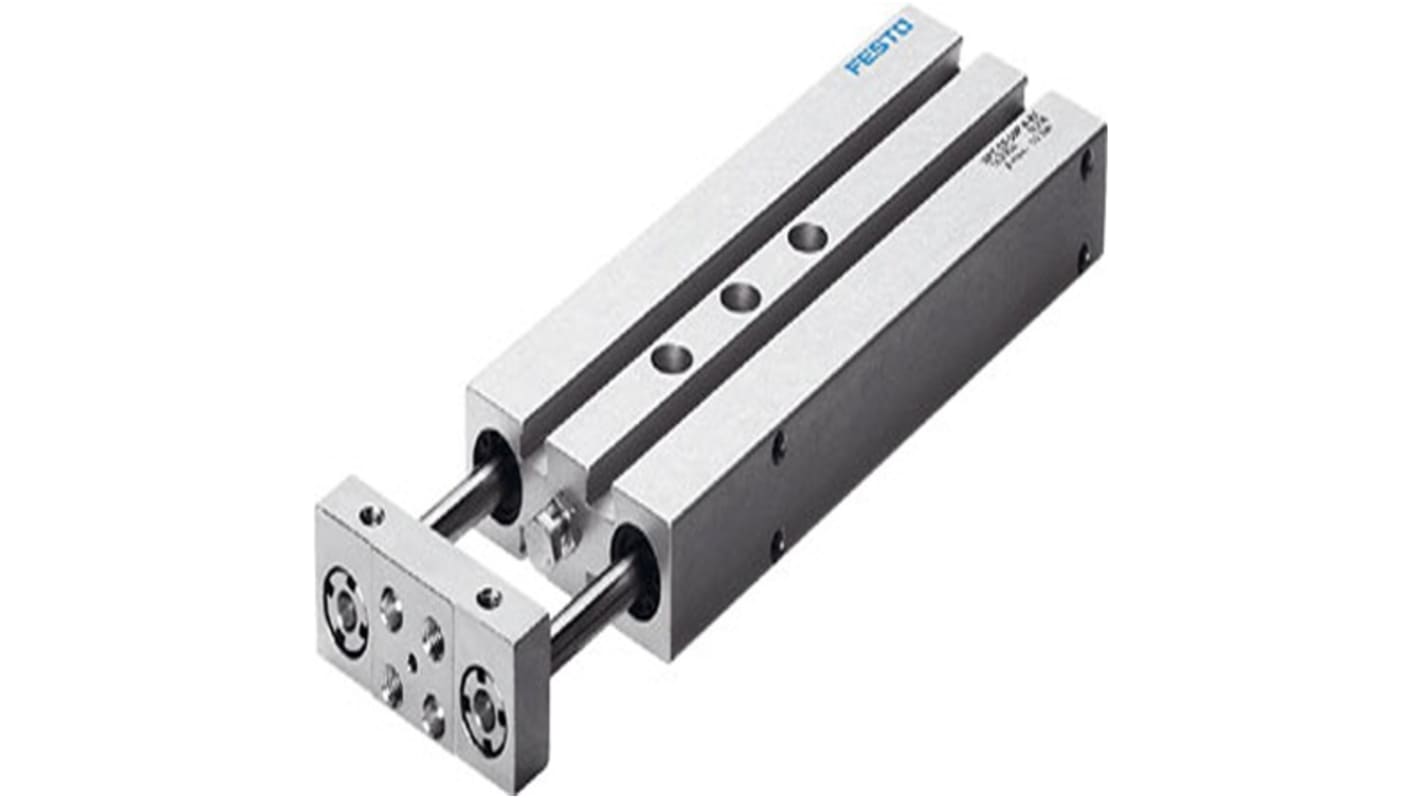

Festo Pneumatic Guided Cylinder - 162030, 16mm Bore, 80mm Stroke, DPZ Series, Double Acting
- RS Stock No.:
- 275-4430
- Mfr. Part No.:
- DPZ-16-80-P-A-KF
- Brand:
- Festo
Subtotal (1 unit)*
£722.25
(exc. VAT)
£866.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £722.25 |
*price indicative
- RS Stock No.:
- 275-4430
- Mfr. Part No.:
- DPZ-16-80-P-A-KF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Stroke | 80mm | |
Bore | 16mm | |
Manufacturer Series | DPZ | |
Action | Double | |
Bearing Type | Ball Bearing | |
Model Number p | 162030 | |
Select all | ||
---|---|---|
Brand Festo | ||
Stroke 80mm | ||
Bore 16mm | ||
Manufacturer Series DPZ | ||
Action Double | ||
Bearing Type Ball Bearing | ||
Model Number p 162030 | ||
- COO (Country of Origin):
- DE
The Festo twin cylinder that has high force with excellent protection against rotation, twice the force in half the space. Widely spaced piston rods for high load capacity, it has standard bolt with lock nut enables adjustment of the standard strokes within a range of 10 mm.
Precision stroke adjustment
Different drive combinations
Different drive combinations
