Festo Pneumatic Guided Cylinder - 8085191, 25mm Bore, 30mm Stroke, DGST Series, Double Acting
- RS Stock No.:
- 203-9519
- Mfr. Part No.:
- DGST-25-30-Y12A
- Brand:
- Festo
Available to back order for despatch 01/08/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£659.76
(exc. VAT)
£791.71
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £659.76 |
- RS Stock No.:
- 203-9519
- Mfr. Part No.:
- DGST-25-30-Y12A
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

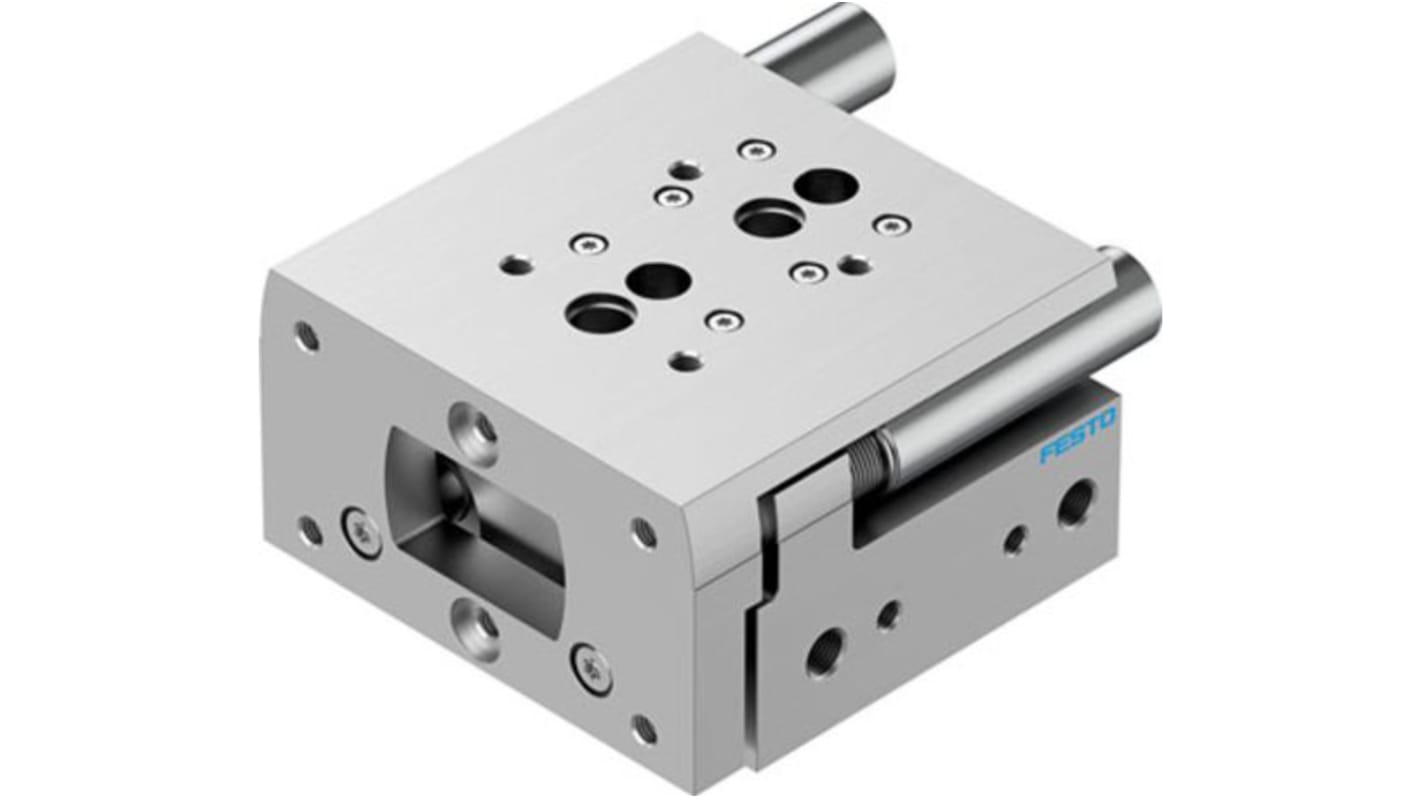

The Festo mini slide DGST-25-30-Y12A has slide and yoke plate as a single component. It has high feed forces and symmetrical mounting interfaces.
Stroke=30 mm
Adjustable end position range/front length=31 mm
Adjustable end position range/rear length=31 mm
Piston diameter=25 mm
Operating mode of drive unit=Yoke
Adjustable end position range/front length=31 mm
Adjustable end position range/rear length=31 mm
Piston diameter=25 mm
Operating mode of drive unit=Yoke
Specifications
Attribute | Value |
|---|---|
| Stroke | 30mm |
| Bore | 25mm |
| Manufacturer Series | DGST |
| Action | Double |
| Maximum Operating Pressure | 8 bar |
| Model Number p | 8085191 |
