Festo Pneumatic Guided Cylinder - 543939, 10mm Bore, 40mm Stroke, DGSL Series, Double Acting
- RS Stock No.:
- 203-9475
- Mfr. Part No.:
- DGSL-8-40-Y3A
- Brand:
- Festo
1 In stock for delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£717.84
(exc. VAT)
£861.41
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £717.84 |
- RS Stock No.:
- 203-9475
- Mfr. Part No.:
- DGSL-8-40-Y3A
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

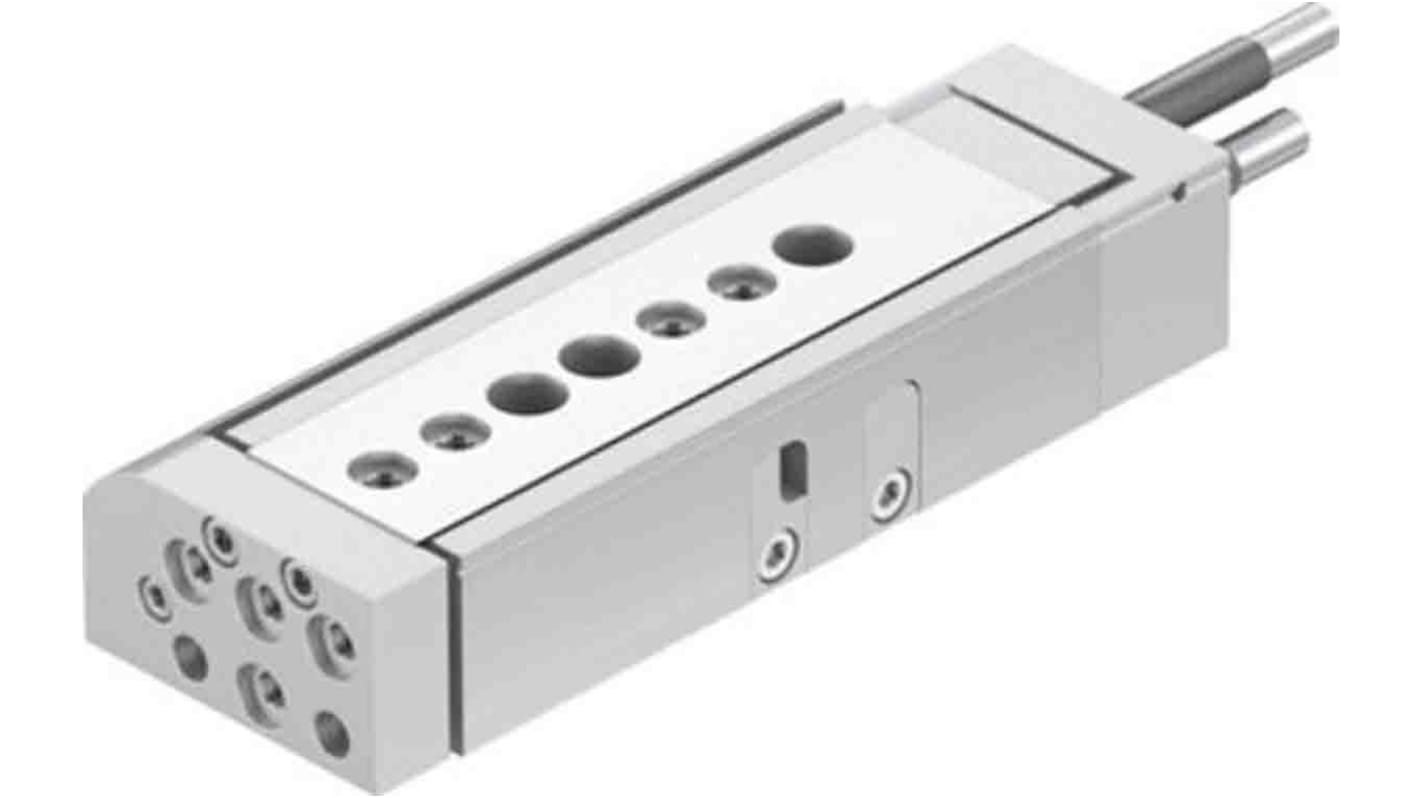

The Festo DGSL series mini slide double-acting actuator has a hydraulic shock absorbers on both sides for position sensing, This also features highly accurate, durable ball-cage guide and very high repetition accuracy. The actuator adjustable end position range/front length 31 mm and rear length 14 mm.
Piston diameter = 10 mm
Operating mode of drive unit = yoke
Operating mode of drive unit = yoke
Specifications
Attribute | Value |
|---|---|
| Stroke | 40mm |
| Bore | 10mm |
| Manufacturer Series | DGSL |
| Action | Double |
| Maximum Operating Pressure | 8 bar |
| Model Number p | 543939 |
