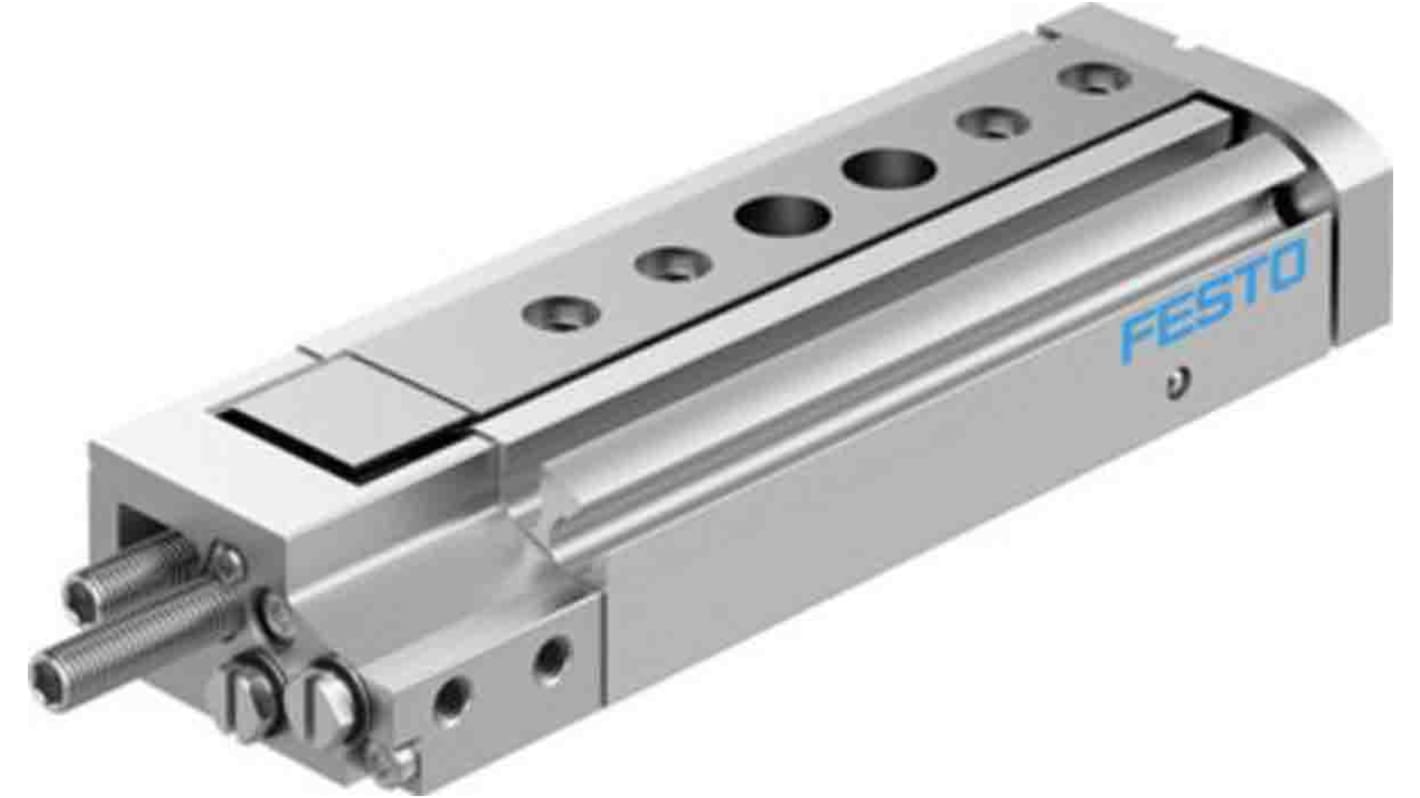

Festo Pneumatic Guided Cylinder - 543915, 6mm Bore, 30mm Stroke, DGSL Series, Double Acting
- RS Stock No.:
- 203-9458
- Mfr. Part No.:
- DGSL-4-30-P1A
- Brand:
- Festo
Subtotal (1 unit)*
£612.11
(exc. VAT)
£734.53
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £612.11 |
*price indicative
- RS Stock No.:
- 203-9458
- Mfr. Part No.:
- DGSL-4-30-P1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Stroke | 30mm | |
Bore | 6mm | |
Manufacturer Series | DGSL | |
Action | Double | |
Maximum Operating Pressure | 8 bar | |
Model Number p | 543915 | |
Select all | ||
---|---|---|
Brand Festo | ||
Stroke 30mm | ||
Bore 6mm | ||
Manufacturer Series DGSL | ||
Action Double | ||
Maximum Operating Pressure 8 bar | ||
Model Number p 543915 | ||
- COO (Country of Origin):
- DE
The Festo DGSL series mini slide double-acting actuator has a flexible damping on both sides without metallic end position via position sensing. The actuator adjustable end position range/front length 25.5 mm and rear length 13.5 mm. This also features a highly accurate durable ball-cage guide structure.
Piston diameter = 6 mm
Operating mode of drive unit = yoke
Operating mode of drive unit = yoke
