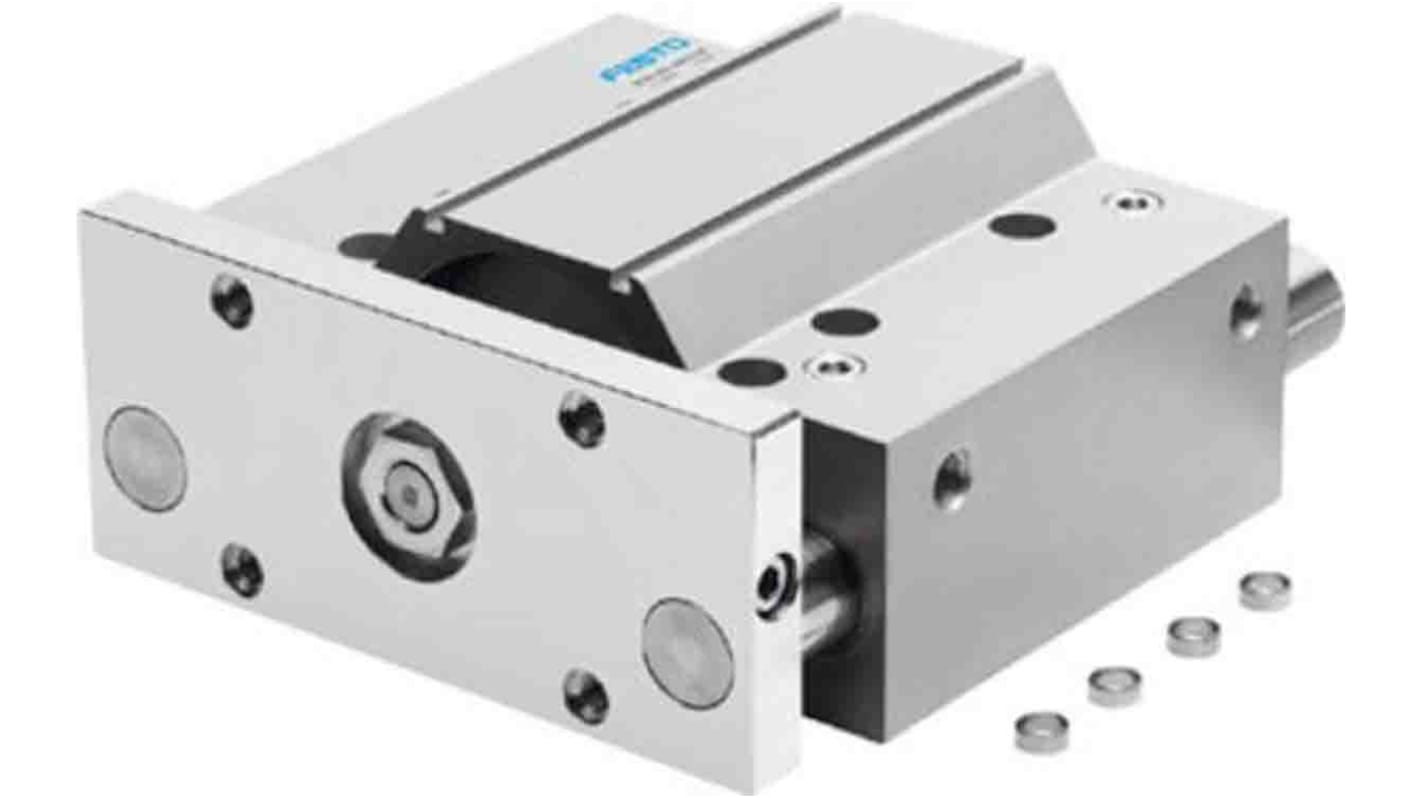

Festo Pneumatic Guided Cylinder - 170886, 80mm Bore, 50mm Stroke, DFM Series, Double Acting
- RS Stock No.:
- 203-0568
- Mfr. Part No.:
- DFM-80-50-P-A-GF
- Brand:
- Festo
Available to back order for despatch 28/05/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£634.28
(exc. VAT)
£761.14
(inc. VAT)
| Units | Per unit |
| 1 + | £634.28 |
- RS Stock No.:
- 203-0568
- Mfr. Part No.:
- DFM-80-50-P-A-GF
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Festo's DFM series of guided actuator have flexible cushioning plate to reduce noise during operation and increase service life. Integrated slots on the actuator body allow for incorporating proximity sensor to measure the linear motion of the piston. Its piston diameter is 80mm with stroke length which is 50mm and assembled in any position.
Ambient temperature -20 to 80 °C
Centre of gravity distance from working load to yoke plate 125 mm
Centre of gravity distance from working load to yoke plate 125 mm
Specifications
Attribute | Value |
|---|---|
| Stroke | 50mm |
| Bore | 80mm |
| Manufacturer Series | DFM |
| Action | Double |
| Model Number p | 170886 |
