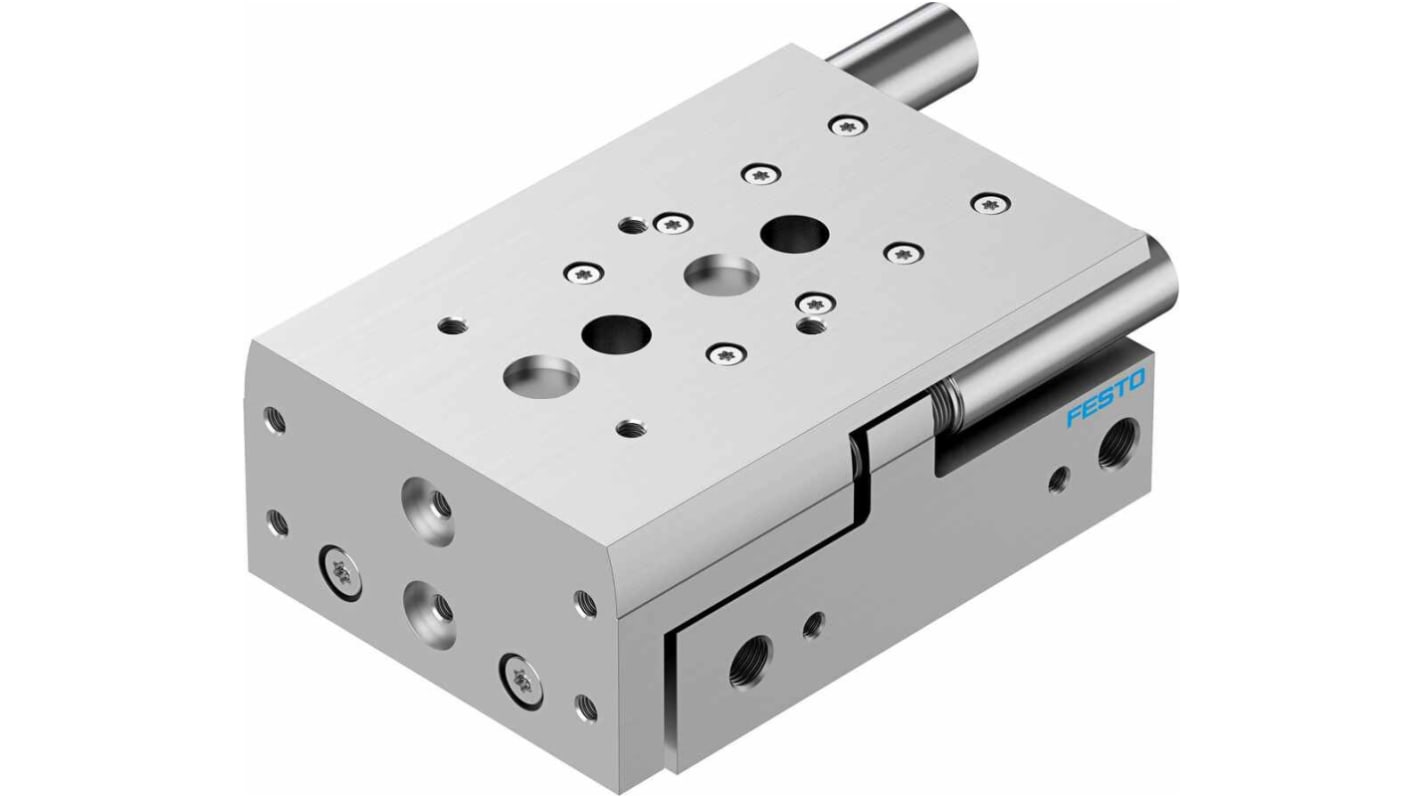

Festo Pneumatic Guided Cylinder - 8085143, 20mm Bore, 50mm Stroke, DGST Series, Double Acting
- RS Stock No.:
- 202-2140
- Mfr. Part No.:
- DGST-20-50-PA
- Brand:
- Festo
Subtotal (1 unit)*
£597.87
(exc. VAT)
£717.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £597.87 |
*price indicative
- RS Stock No.:
- 202-2140
- Mfr. Part No.:
- DGST-20-50-PA
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Stroke | 50mm | |
Bore | 20mm | |
Manufacturer Series | DGST | |
Action | Double | |
Bearing Type | Ball Bearing | |
Pneumatic Connection | G 1/8 | |
Maximum Operating Pressure | 8 bar | |
Cushioning Type | Elastic | |
Model Number p | 8085143 | |
Weight | 1.3kg | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Stroke 50mm | ||
Bore 20mm | ||
Manufacturer Series DGST | ||
Action Double | ||
Bearing Type Ball Bearing | ||
Pneumatic Connection G 1/8 | ||
Maximum Operating Pressure 8 bar | ||
Cushioning Type Elastic | ||
Model Number p 8085143 | ||
Weight 1.3kg | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- DE
Festo Double-Acting Pneumatic Guided Cylinder, 20 mm Bore, 50 mm Stroke - DGST Series - DGST-20-50-PA
This actuator from Festo uses a slide mechanism to create linear movement with ease. With its compact size and symmetrical mounting interfaces for supply ports and sensor slots, it's suitable for installation in tight spaces. As the unit's slide and yoke are a single component, it offers precise movements with minimal torsional stresses. A resilient roller bearing guide ensures accuracy, while flexible cushioning rings on both ends reduce impact forces. A backlash-free piston rod design minimises mechanical stresses, so you can be confident of a long service life.
• Features two sensor slots for proximity detection
• Can be operated without any additional cushioning components
• Through-hole mounting for versatility
• Can be operated without any additional cushioning components
• Through-hole mounting for versatility
Application Information
• Electronics and light assembly
• Machine building
• Handling technology
• Machine building
• Handling technology
How can I use mini slides in factory automation?
Mini slides are a popular choice for pick-and-place functions, piggyback handling and precision positioning or press-fitting applications in factory automation setups.
Do I need to consider tolerances for proximity sensors when installing this mini slide?
As this mini slide features slots for proximity sensors, they can be integrated right into the component. This means you're unlikely to have any projecting parts after fitting your sensors.
