RS PRO Pneumatic Guided Cylinder - 16mm Bore, 40mm Stroke, Double Acting
- RS Stock No.:
- 291-869
- Brand:
- RS PRO
Subtotal (1 unit)*
£214.72
(exc. VAT)
£257.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £214.72 |
*price indicative
- RS Stock No.:
- 291-869
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Stroke | 40mm | |
Bore | 16mm | |
Action | Double | |
Bearing Type | Slide Bearing | |
Cushioning Type | Rubber | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Stroke 40mm | ||
Bore 16mm | ||
Action Double | ||
Bearing Type Slide Bearing | ||
Cushioning Type Rubber | ||
- COO (Country of Origin):
- PL

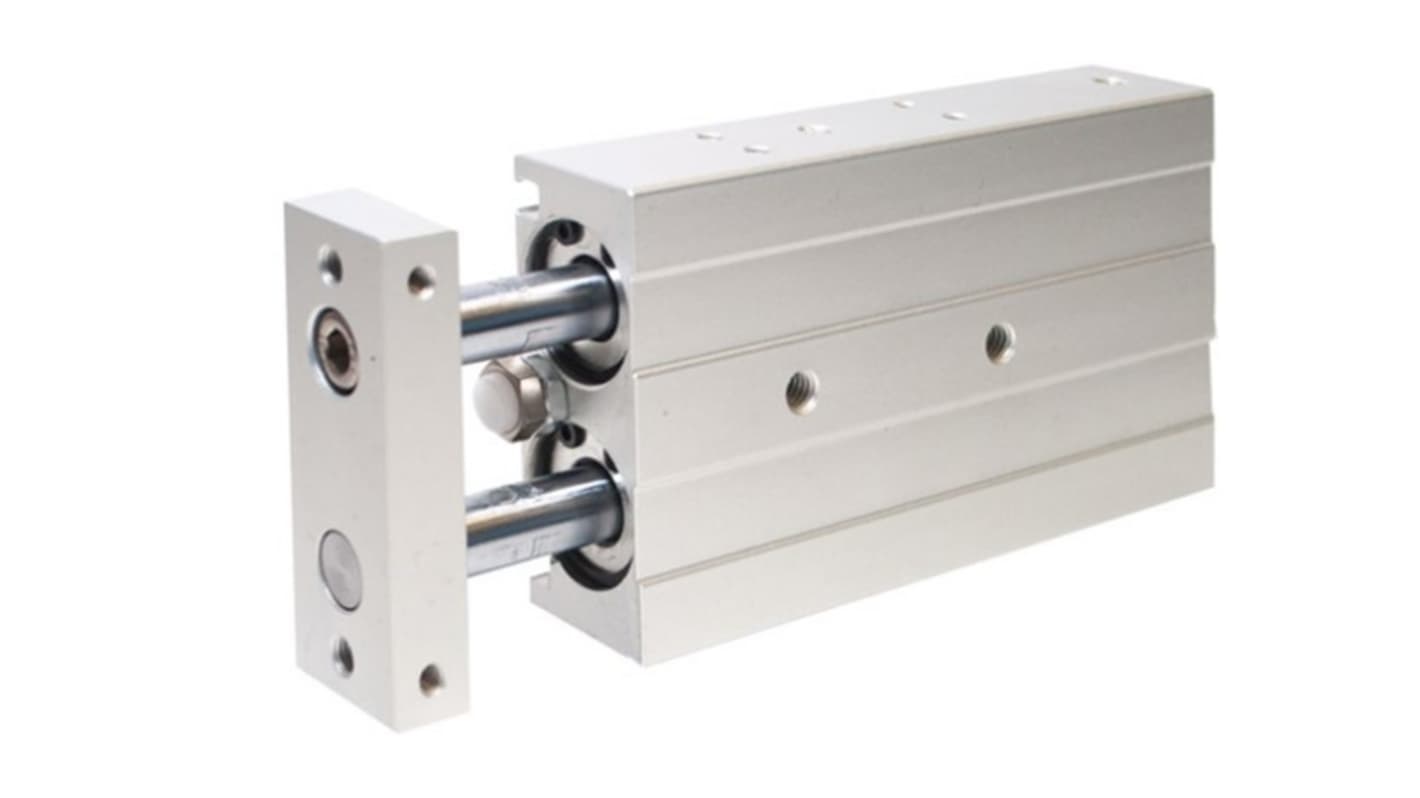

RS PRO Double Action Pneumatic Guided Cylinder, 40mm Stroke, 119 x 58 x 20mm
This RS PRO Double Rod Cylinder is designed for precise linear motion applications. With a 40mm stroke, it offers high non-rotating precision and low deflection, making it ideal for tasks requiring accurate guidance. The cylinder's design allows for versatile mounting options, enhancing its adaptability in various industrial settings.
Features and Benefits
Twin-rod cylinder: Provides stability and precision in linear motion applications
Can be mounted from four directions: Offers flexibility in installation
Magnetic switch slots around the cylinder body: Facilitates easy integration of sensors
Can be mounted the workpiece from three directions: Enhances versatility in application
Bumper in front of the barrel: Adjusts stroke and reduces impact
Can be mounted from four directions: Offers flexibility in installation
Magnetic switch slots around the cylinder body: Facilitates easy integration of sensors
Can be mounted the workpiece from three directions: Enhances versatility in application
Bumper in front of the barrel: Adjusts stroke and reduces impact
Applications
Automation systems
Manufacturing equipment
Precision machinery
Manufacturing equipment
Precision machinery
Additional Information
Pneumatic Connection: M5
Maximum Operating Pressure: 10bar
Cushioning Type: Rubber
Operating Temperature Range: -20°C to 80°C
Dimensions: 119 x 58 x 20mm
Weight: 360g
Bore: 16mm
Action: Double
Bearing Type: Slide Bearing
Maximum Operating Pressure: 10bar
Cushioning Type: Rubber
Operating Temperature Range: -20°C to 80°C
Dimensions: 119 x 58 x 20mm
Weight: 360g
Bore: 16mm
Action: Double
Bearing Type: Slide Bearing
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
