RS PRO Pneumatic Guided Cylinder - 16 mm Bore, SGM Series, 25 mm Double Acting Acting
- RS Stock No.:
- 180-335
- Brand:
- RS PRO
Subtotal (1 unit)*
£183.67
(exc. VAT)
£220.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £183.67 |
*price indicative
- RS Stock No.:
- 180-335
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | SGM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Aluminium | |
| Cushioning Type | Rubber | |
| Piston Rod Thread Size | M5 x 0.8 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Piston Speed | 500mm/s | |
| Rod Type | Double | |
| Maximum Operating Temperature | 70°C | |
| Weight | 463g | |
| Height | 25mm | |
| Standards/Approvals | RoHS | |
| Width | 62mm | |
| Stroke Length | 25mm | |
| Length | 71mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series SGM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 10 bar | ||
Body Material Aluminium | ||
Cushioning Type Rubber | ||
Piston Rod Thread Size M5 x 0.8 | ||
Minimum Operating Temperature -20°C | ||
Maximum Piston Speed 500mm/s | ||
Rod Type Double | ||
Maximum Operating Temperature 70°C | ||
Weight 463g | ||
Height 25mm | ||
Standards/Approvals RoHS | ||
Width 62mm | ||
Stroke Length 25mm | ||
Length 71mm | ||
- COO (Country of Origin):
- CN

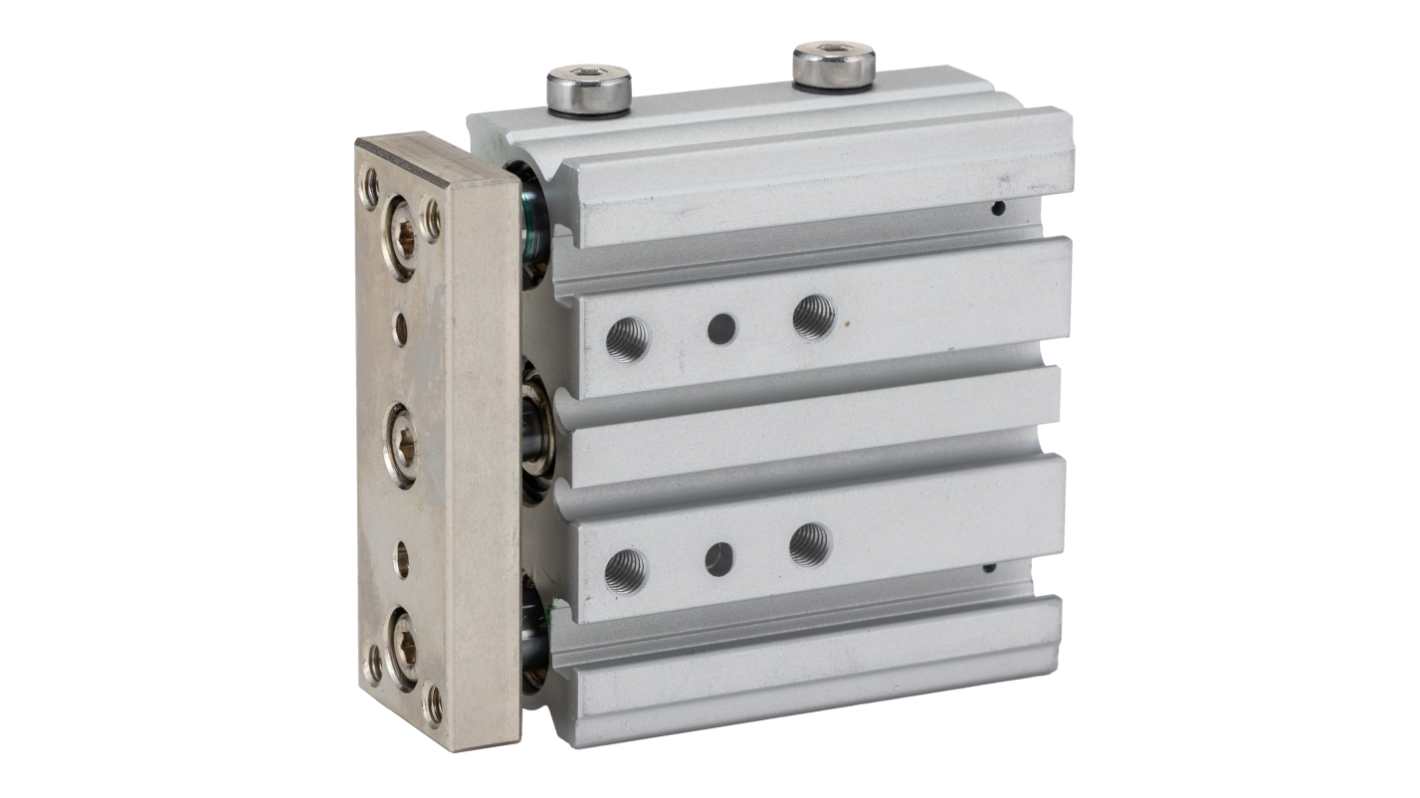

RS PRO Pneumatic Guided Cylinder, 25 mm Stroke, Compact
The RS PRO Pneumatic Guided Cylinder is designed for precision and durability in industrial applications. It features a heavy-duty triple rod with a slide bearing, providing robust resistance to side loads. This guided cylinder is ideal for applications requiring precise movement and easy installation with multiple mounting options.
Features and Benefits
Heavy-duty triple rod: Offers strong resistance to side loads, ensuring durability and reliability.
Slide bearing: Facilitates smooth and precise movement, enhancing performance.
Compact size: Allows for easy integration into space-constrained environments.
Multiple mounting points: Provides flexibility in installation, accommodating various setup requirements.
High precision: Ensures accurate and consistent operation in demanding applications.
Magnetic: Enables position sensing for enhanced control.
Rubber cushioned: Reduces impact and noise, prolonging the lifespan of the cylinder.
Applications
Automation systems
Manufacturing equipment
Material handling
Robotics
Additional Information
Complies with industry standards for pneumatic components
Suitable for use in environments with temperatures ranging from -20 °C to 80 °C
Compatible with M5 pneumatic connections
Designed to operate at a maximum pressure of 10 bar
