RS PRO Pneumatic Guided Cylinder - 25 mm Bore, SGM Series, 75 mm Double Acting Acting
- RS Stock No.:
- 180-299
- Brand:
- RS PRO
Subtotal (1 unit)*
£226.95
(exc. VAT)
£272.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £226.95 |
*price indicative
- RS Stock No.:
- 180-299
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 25mm | |
| Series | SGM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Aluminium | |
| Cushioning Type | Rubber | |
| Maximum Piston Speed | 500mm/s | |
| Piston Rod Thread Size | 1/8 in G | |
| Minimum Operating Temperature | -20°C | |
| Rod Type | Double | |
| Maximum Operating Temperature | 70°C | |
| Height | 38mm | |
| Width | 91mm | |
| Weight | 1753g | |
| Standards/Approvals | RoHS | |
| Stroke Length | 75mm | |
| Length | 129mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 25mm | ||
Series SGM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 10 bar | ||
Body Material Aluminium | ||
Cushioning Type Rubber | ||
Maximum Piston Speed 500mm/s | ||
Piston Rod Thread Size 1/8 in G | ||
Minimum Operating Temperature -20°C | ||
Rod Type Double | ||
Maximum Operating Temperature 70°C | ||
Height 38mm | ||
Width 91mm | ||
Weight 1753g | ||
Standards/Approvals RoHS | ||
Stroke Length 75mm | ||
Length 129mm | ||

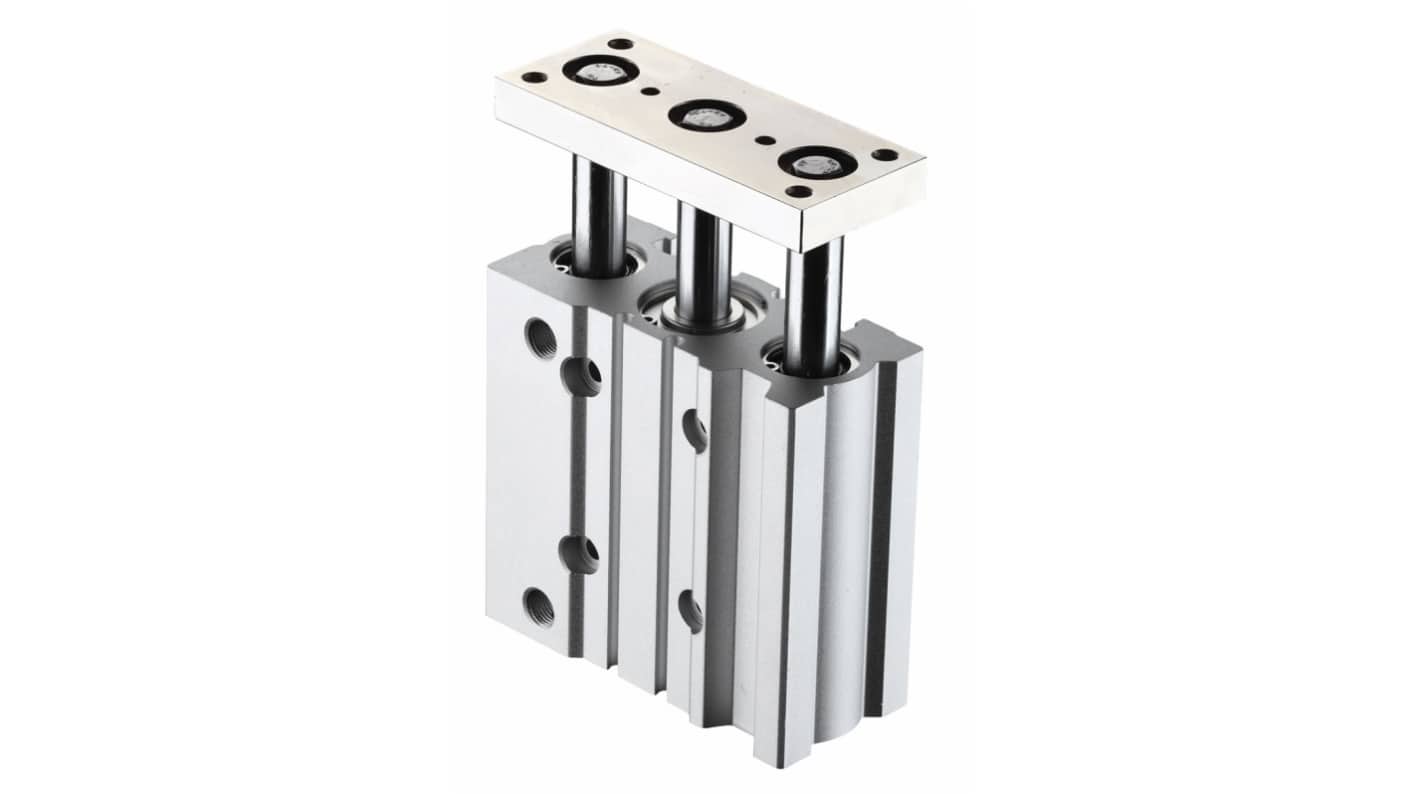

RS PRO Pneumatic Guided Cylinder, 75 mm Stroke, Compact
The RS PRO Pneumatic Guided Cylinder is a robust and versatile solution designed for applications requiring precise linear motion. With a heavy-duty triple rod and slide bearing, this guided cylinder offers excellent resistance to side loads, making it ideal for demanding industrial environments. Its compact design and multiple mounting options ensure easy installation and integration into various systems.
Features and Benefits
Heavy-duty triple rod: Provides strong resistance to side loads, enhancing durability and performance
Slide bearing: Ensures smooth and precise movement, improving operational efficiency
Compact design: Saves space and allows for easy integration into existing setups
Multiple mounting points: Offers flexibility in installation, accommodating various configurations
High precision: Delivers accurate and reliable performance in critical applications
Magnetic: Facilitates easy position sensing for enhanced control
Rubber cushioned: Reduces impact and noise, extending the lifespan of the cylinder
Applications
Automotive manufacturing
Packaging machinery
Material handling systems
Robotics
Additional Information
Conforms to high industry standards for quality and reliability
Compatible with G 1/8 pneumatic connections
Operates efficiently within a temperature range of -20 °C to 80 °C
