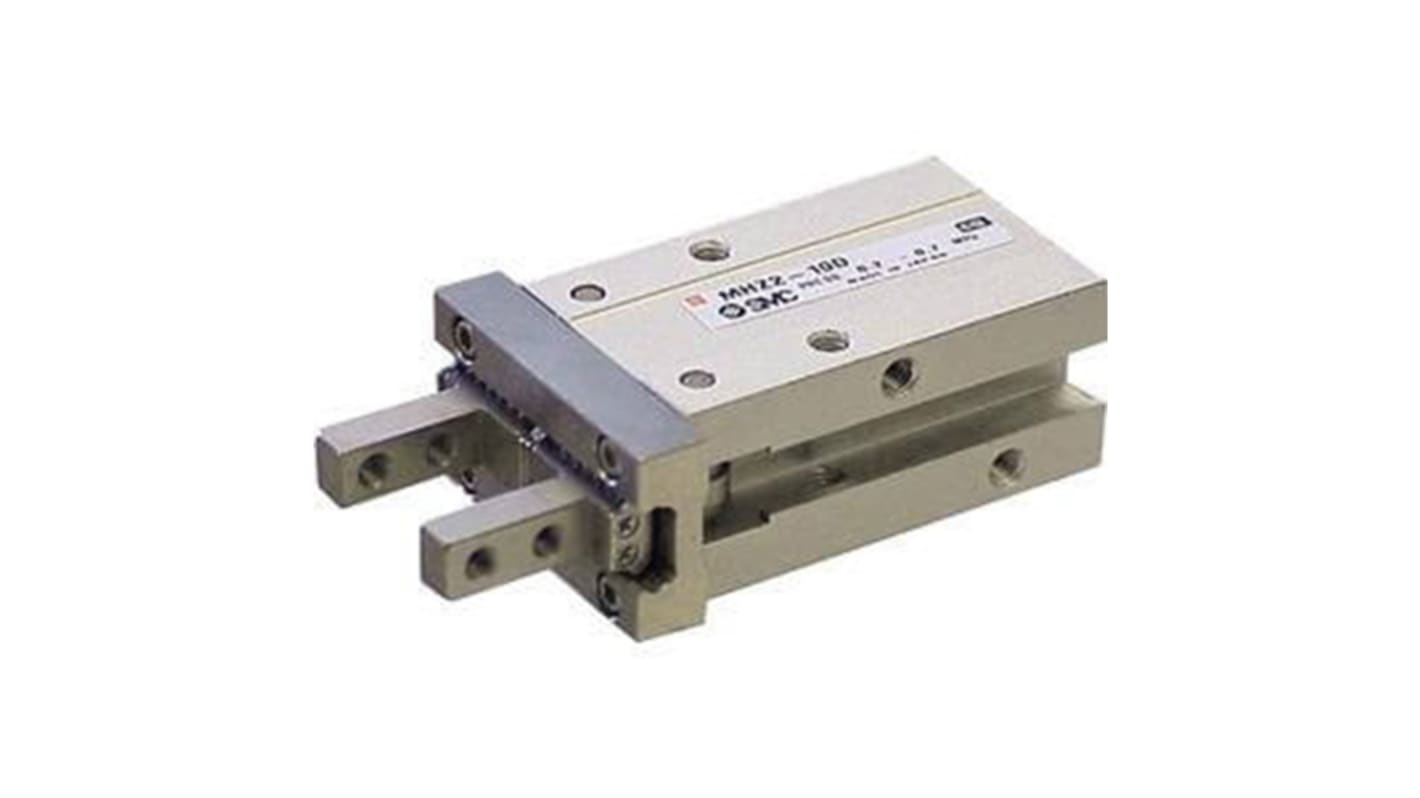

SMC 2 Finger Single Acting Action Pneumatic Gripper, MHZ2-6C, Angle Gripping Type
- RS Stock No.:
- 237-3567
- Mfr. Part No.:
- MHZ2-6C
- Brand:
- SMC
Subtotal (1 unit)*
£309.99
(exc. VAT)
£371.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £309.99 |
*price indicative
- RS Stock No.:
- 237-3567
- Mfr. Part No.:
- MHZ2-6C
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Number of Fingers | 2 | |
| Product Type | Pneumatic Gripper | |
| Bore Size | 6 mm | |
| Gripping Type | Angle | |
| Action Type | Single Acting | |
| Series | MHZ2 | |
| Maximum Operating Pressure | 7 bar | |
| Port Size | M3 | |
| Weight | 27g | |
| Open Width | 4mm | |
| Closed Width | 4mm | |
| Minimum Operating Temperature | -10°C | |
| Gripping Force - Internal | 3.7N | |
| Maximum Operating Temperature | 60°C | |
| Width | 20 mm | |
| Standards/Approvals | RoHS | |
| Height | 10mm | |
| Length | 53mm | |
| Maximum Operating Frequency | 120cpm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Number of Fingers 2 | ||
Product Type Pneumatic Gripper | ||
Bore Size 6 mm | ||
Gripping Type Angle | ||
Action Type Single Acting | ||
Series MHZ2 | ||
Maximum Operating Pressure 7 bar | ||
Port Size M3 | ||
Weight 27g | ||
Open Width 4mm | ||
Closed Width 4mm | ||
Minimum Operating Temperature -10°C | ||
Gripping Force - Internal 3.7N | ||
Maximum Operating Temperature 60°C | ||
Width 20 mm | ||
Standards/Approvals RoHS | ||
Height 10mm | ||
Length 53mm | ||
Maximum Operating Frequency 120cpm | ||
- COO (Country of Origin):
- JP
The SMC MHZ2 series gripper has an integrated linear guide for high rigidity, positioned with two dowel pins to prevent guide slippage. It has mounting versatility on three sides, in five configurations. It is available in single acting (N.O., N.C.).
Auto switch capable
Option for NSF-H1, food grade lubricant
High repeatability ±0.01 mm
