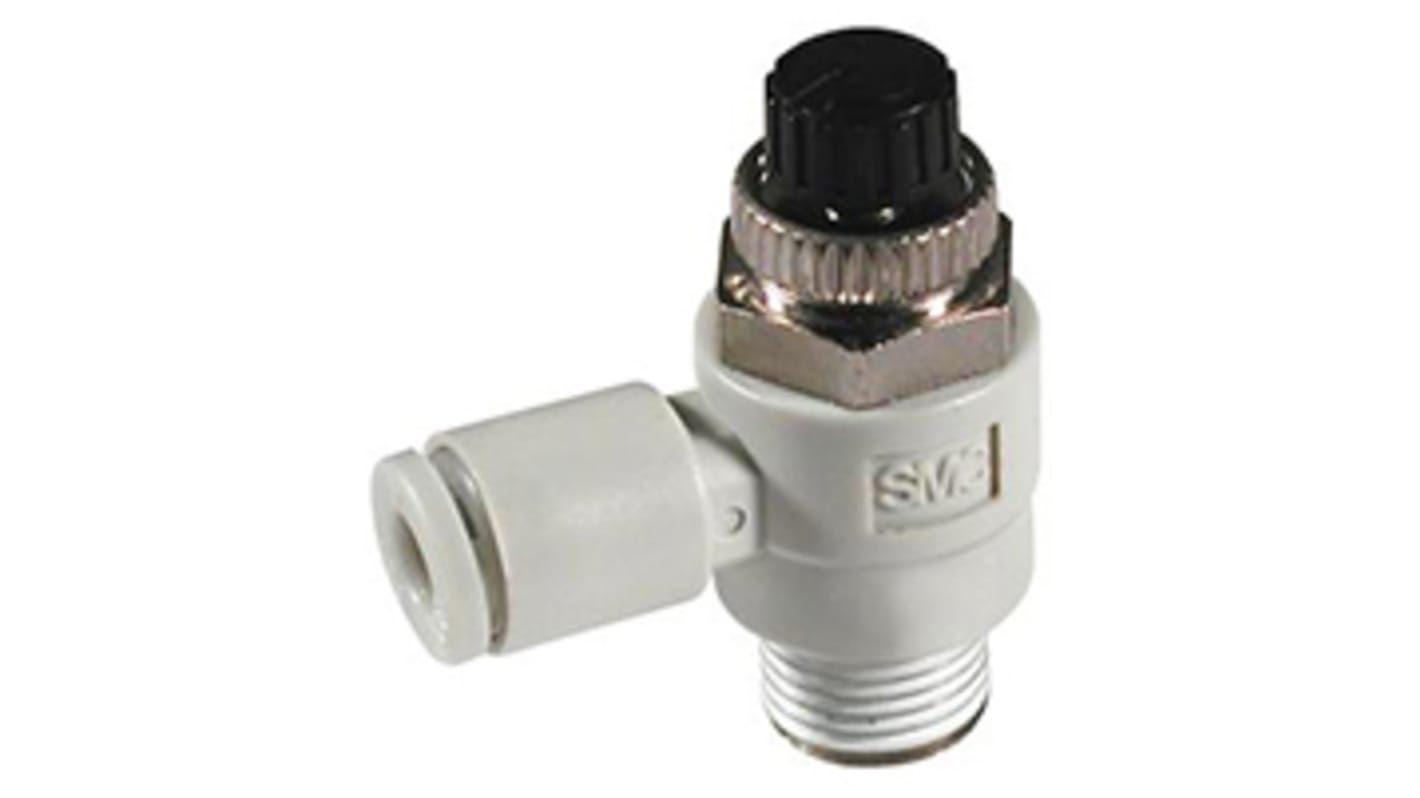

SMC AS Series Threaded Speed Controller, M5 x 0.8 Inlet Port x 4mm Tube Outlet Port
- RS Stock No.:
- 825-8660
- Mfr. Part No.:
- AS1301FM-M5-04
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£10.19
(exc. VAT)
£12.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £10.19 |
| 5 - 9 | £9.76 |
| 10 + | £9.50 |
*price indicative
- RS Stock No.:
- 825-8660
- Mfr. Part No.:
- AS1301FM-M5-04
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Type | Speed Controller | |
| Inlet Port Type | Threaded | |
| Threaded Inlet Port | M5 x 0.8 | |
| Tube Outlet Port | 4mm | |
| Manufacturer Series | AS | |
| Outlet Port Type | Tube | |
| Minimum Outlet Pressure | 0.1MPa | |
| Maximum Outlet Pressure | 1(Outlet) MPa, 1.5(Proof) MPa | |
| Threaded Inlet Thread Standard | Metric | |
| Threaded Inlet Thread Size | M5 x 0.8 | |
Select all | ||
|---|---|---|
Brand SMC | ||
Type Speed Controller | ||
Inlet Port Type Threaded | ||
Threaded Inlet Port M5 x 0.8 | ||
Tube Outlet Port 4mm | ||
Manufacturer Series AS | ||
Outlet Port Type Tube | ||
Minimum Outlet Pressure 0.1MPa | ||
Maximum Outlet Pressure 1(Outlet) MPa, 1.5(Proof) MPa | ||
Threaded Inlet Thread Standard Metric | ||
Threaded Inlet Thread Size M5 x 0.8 | ||
Non Compliant
- COO (Country of Origin):
- JP
Speed Controller - In-Line Locking Type
Lock speed setting at the touch of a button
Speed control setting easily marked for repeatability
Speed may be accurately controlled even at low velocity
Constant speed easily set
Meter out only free flow return
Metal control knob to withstand heavy usage
Retaining function prevents loss of needle
Speed control setting easily marked for repeatability
Speed may be accurately controlled even at low velocity
Constant speed easily set
Meter out only free flow return
Metal control knob to withstand heavy usage
Retaining function prevents loss of needle
Flow Regulators & Restrictors - SMC
Regulators for controlling the flow of compressed air to pneumatic actuators. SMC’s AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.
