- RS Stock No.:
- 825-8591
- Mfr. Part No.:
- AS1200-U10/32
- Brand:
- SMC
3 In stock - FREE next working day delivery available
Price Each
£13.50
(exc. VAT)
£16.20
(inc. VAT)
Units | Per unit |
1 - 4 | £13.50 |
5 - 9 | £12.96 |
10 + | £12.42 |
- RS Stock No.:
- 825-8591
- Mfr. Part No.:
- AS1200-U10/32
- Brand:
- SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details

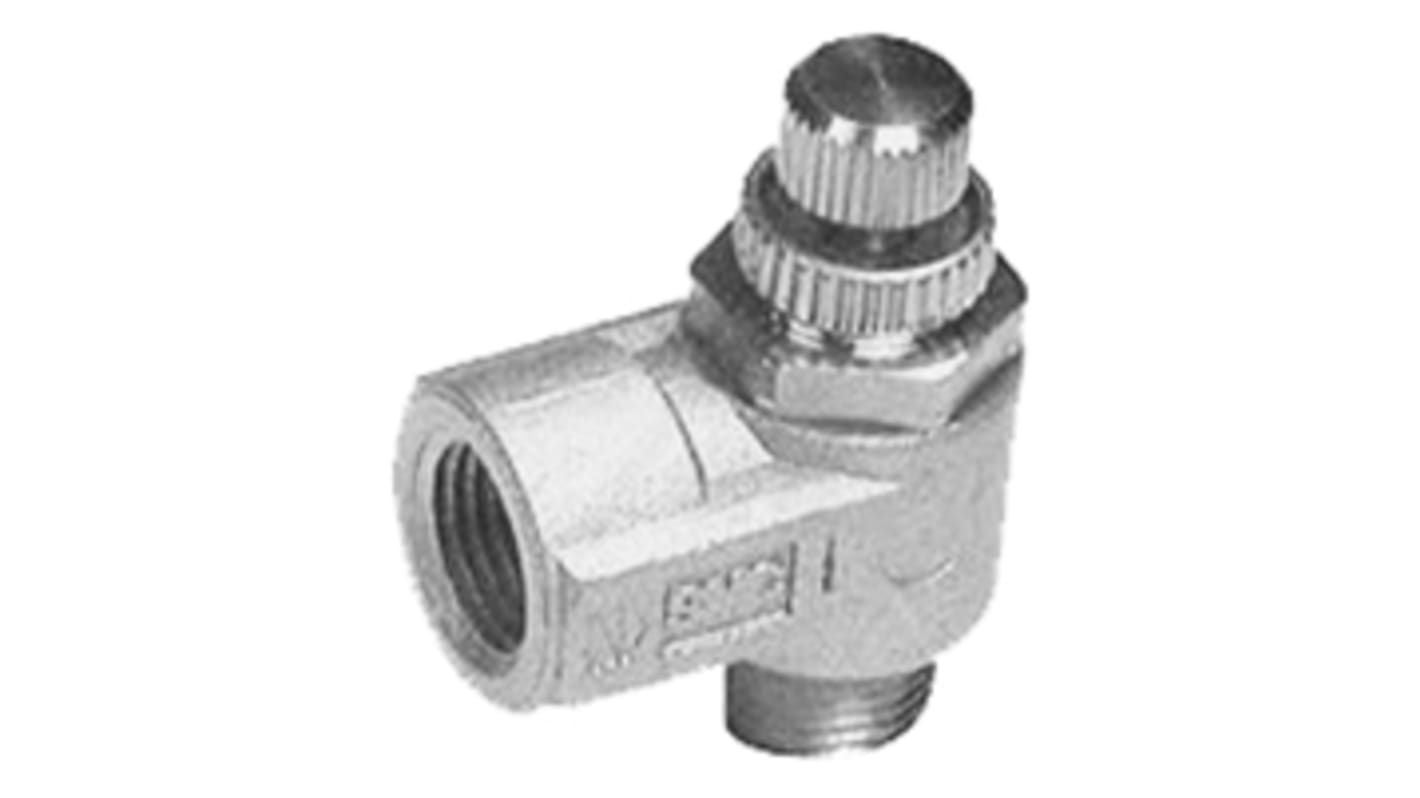

Speed Controller - Metal Body Elbow
Minimises installation time and cost
Speed may be accurately controlled even at low velocity
Constant speed easily achieved
Retaining function prevents accidental loss of needle
Meter out only free flow return
Tapered port threads (not M5)
Elbow style allows body rotation through 360 degrees
Speed may be accurately controlled even at low velocity
Constant speed easily achieved
Retaining function prevents accidental loss of needle
Meter out only free flow return
Tapered port threads (not M5)
Elbow style allows body rotation through 360 degrees
Flow Regulators & Restrictors - SMC
Regulators for controlling the flow of compressed air to pneumatic actuators. SMCs AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.
Specifications
Attribute | Value |
---|---|
Type | Flow Controller |
Inlet Port Type | Threaded |
Threaded Inlet Port | UNF 10-32 |
Manufacturer Series | AS |
Outlet Port Type | Threaded |
Threaded Outlet Port | UNF 10-32 |
Minimum Outlet Pressure | 0.1MPa |
Maximum Outlet Pressure | 1(Outlet) MPa, 1.5(Proof) MPa |
Threaded Outlet Thread Standard | UNF |
Threaded Inlet Thread Standard | UNF |
Threaded Outlet Thread Size | 10-32 UNF |
Threaded Inlet Thread Size | 10-32 UNF |
