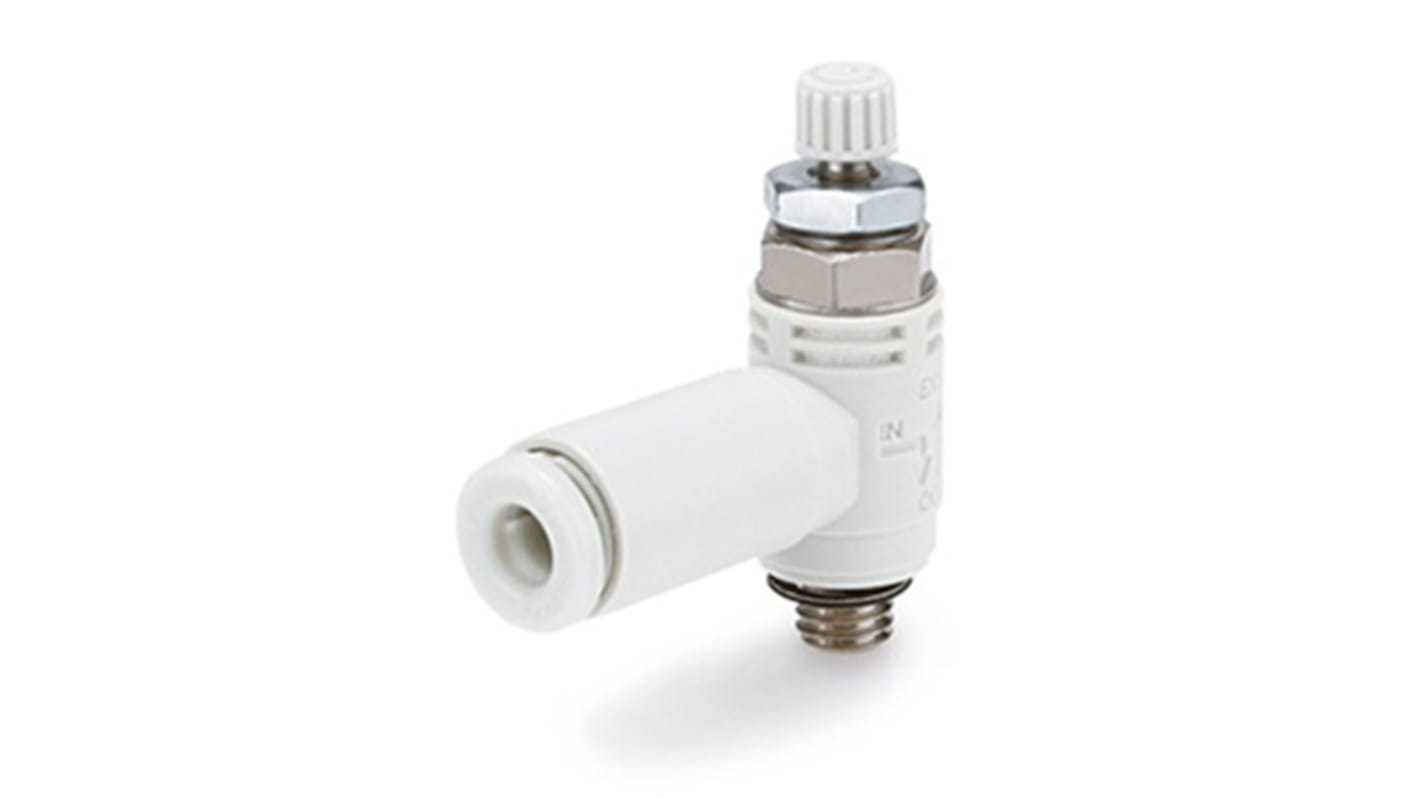

SMC ASV410F Series Speed Exhaust Controller Speed Exhaust Controller, Inlet Male, Threaded R 1/8 in, Outlet Female
- RS Stock No.:
- 234-4249
- Mfr. Part No.:
- ASV410F-02-10S
- Brand:
- SMC
Subtotal (1 unit)*
£24.22
(exc. VAT)
£29.06
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £24.22 |
*price indicative
- RS Stock No.:
- 234-4249
- Mfr. Part No.:
- ASV410F-02-10S
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Inlet Connection Type | Threaded | |
| Outlet Connection Type | Push-in | |
| Product Type | Speed Exhaust Controller | |
| Sub Type | Speed Exhaust Controller | |
| Inlet Connection Size | 1/8 in | |
| Outlet Connection Size | 10 mm | |
| Series | ASV410F | |
| Inlet Thread Standard | R | |
| Maximum Operating Pressure | 1 Mpa | |
| Inlet Port Gender | Male | |
| Material | Brass, POM, Halogenated Nitrile Rubber (HNBR), Stainless Steel, Nitrile Rubber (NBR), Polybutylene Terephthalate | |
| Minimum Operating Temperature | -5°C | |
| Outlet Thread Standard | R | |
| Outlet Port Gender | Female | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Minimum Operating Pressure | 0.1MPa | |
| Hazardous Area Certification | NO | |
| Proof Pressure | 1.5MPa | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Inlet Connection Type Threaded | ||
Outlet Connection Type Push-in | ||
Product Type Speed Exhaust Controller | ||
Sub Type Speed Exhaust Controller | ||
Inlet Connection Size 1/8 in | ||
Outlet Connection Size 10 mm | ||
Series ASV410F | ||
Inlet Thread Standard R | ||
Maximum Operating Pressure 1 Mpa | ||
Inlet Port Gender Male | ||
Material Brass, POM, Halogenated Nitrile Rubber (HNBR), Stainless Steel, Nitrile Rubber (NBR), Polybutylene Terephthalate | ||
Minimum Operating Temperature -5°C | ||
Outlet Thread Standard R | ||
Outlet Port Gender Female | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Minimum Operating Pressure 0.1MPa | ||
Hazardous Area Certification NO | ||
Proof Pressure 1.5MPa | ||
The SMC series ASV, speed exhaust controller provides an effective area that is two times larger than that of a speed controller. A silencer, one-touch fitting and flame resistant resin body is supplied as standard on the ASV. All brass parts are electro less nickel-plated.
Applicable tubing 5/32", 1/4", 5/16", 3/8", 1/2", 4mm, 6mm, 8mm, 10mm, 12mm
Applicable port size M3 x 0.5, M5 x 0.8, 10-32 UNF, R1/8, R1/4, R3/8, R1/2, NPT1/8, NPT1/4, NPT3/8, NPT1/2
With spatter cover (ASV310F/410F/510F).
