SMC Threaded Series Exhaust Flow Regulator, Inlet Male, Threaded Metric M5 x 0.8, Outlet Female Threaded Metric M5 x 0.8
- RS Stock No.:
- 197-5107
- Mfr. Part No.:
- AS1200-M5
- Brand:
- SMC

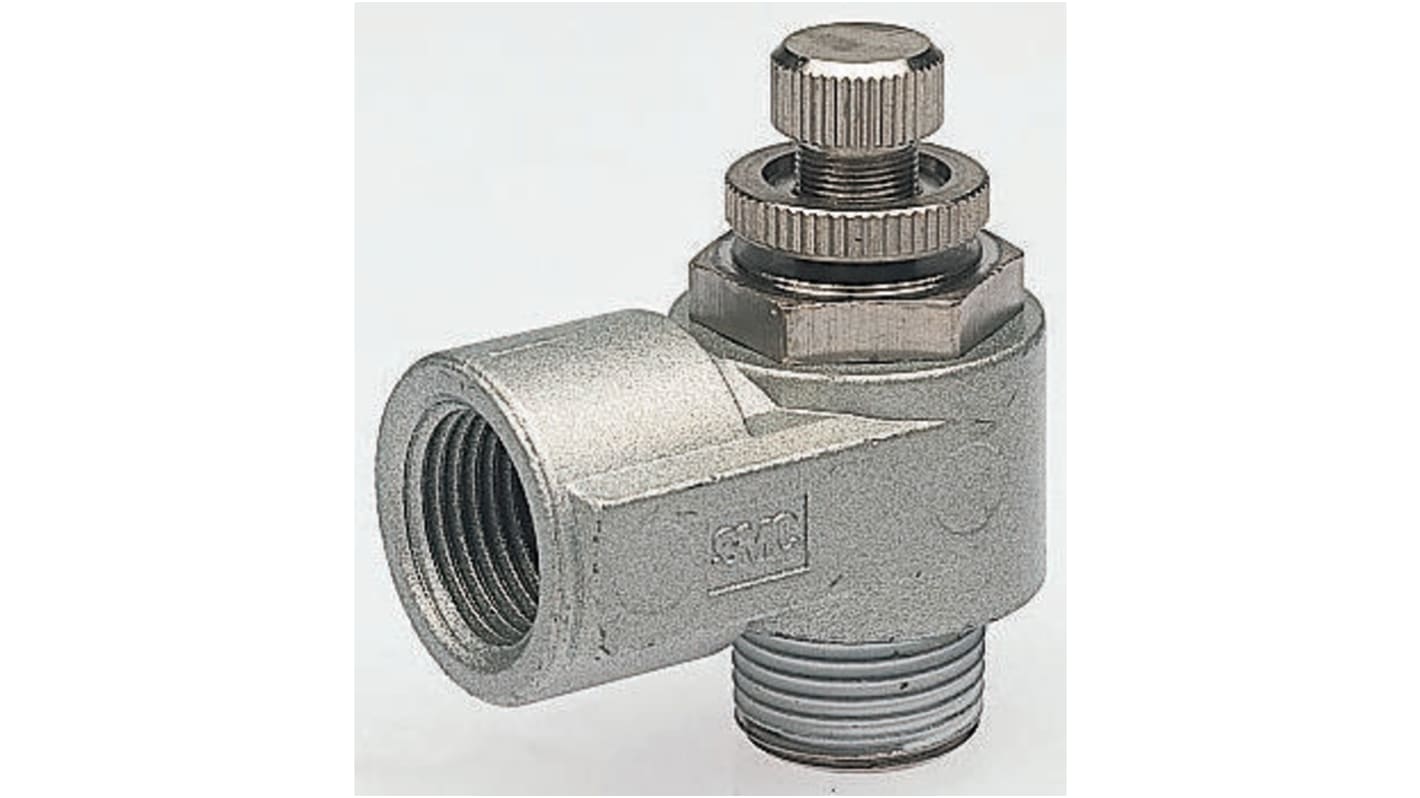

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£13.98
(exc. VAT)
£16.78
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 42 unit(s) shipping from 27 April 2026
- Plus 5 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.98 |
| 5 - 9 | £13.14 |
| 10 + | £12.62 |
*price indicative
- RS Stock No.:
- 197-5107
- Mfr. Part No.:
- AS1200-M5
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Flow Regulator | |
| Outlet Connection Type | Threaded | |
| Inlet Connection Type | Threaded | |
| Sub Type | Exhaust | |
| Inlet Connection Size | M5 x 0.8 | |
| Outlet Connection Size | M5 x 0.8 | |
| Series | Threaded | |
| Inlet Thread Standard | Metric | |
| Maximum Operating Pressure | 1 Mpa | |
| Inlet Port Gender | Male | |
| Outlet Thread Standard | Metric | |
| Minimum Operating Temperature | -5°C | |
| Outlet Port Gender | Female | |
| Material | Stainless Steel, Electroless Nickel Plated, Zinc Alloy | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Minimum Operating Pressure | 0.1MPa | |
| Hazardous Area Certification | NO | |
| Proof Pressure | 1.5MPa | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Flow Regulator | ||
Outlet Connection Type Threaded | ||
Inlet Connection Type Threaded | ||
Sub Type Exhaust | ||
Inlet Connection Size M5 x 0.8 | ||
Outlet Connection Size M5 x 0.8 | ||
Series Threaded | ||
Inlet Thread Standard Metric | ||
Maximum Operating Pressure 1 Mpa | ||
Inlet Port Gender Male | ||
Outlet Thread Standard Metric | ||
Minimum Operating Temperature -5°C | ||
Outlet Port Gender Female | ||
Material Stainless Steel, Electroless Nickel Plated, Zinc Alloy | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Minimum Operating Pressure 0.1MPa | ||
Hazardous Area Certification NO | ||
Proof Pressure 1.5MPa | ||
RoHS Status: Exempt
Speed Controller - Metal Body Elbow
Minimises installation time and cost
Speed may be accurately controlled even at low velocity
Constant speed easily achieved
Retaining function prevents accidental loss of needle
Meter out only free flow return
Tapered port threads (not M5)
Elbow style allows body rotation through 360 degrees
Flow Regulators & Restrictors - SMC
Regulators for controlling the flow of compressed air to pneumatic actuators. SMC’s AS series speed controllers have a larger, push-pull locking dial making precise adjustment and control easy and reducing the setting time by half. Available to suit a range of tubing diameters.
