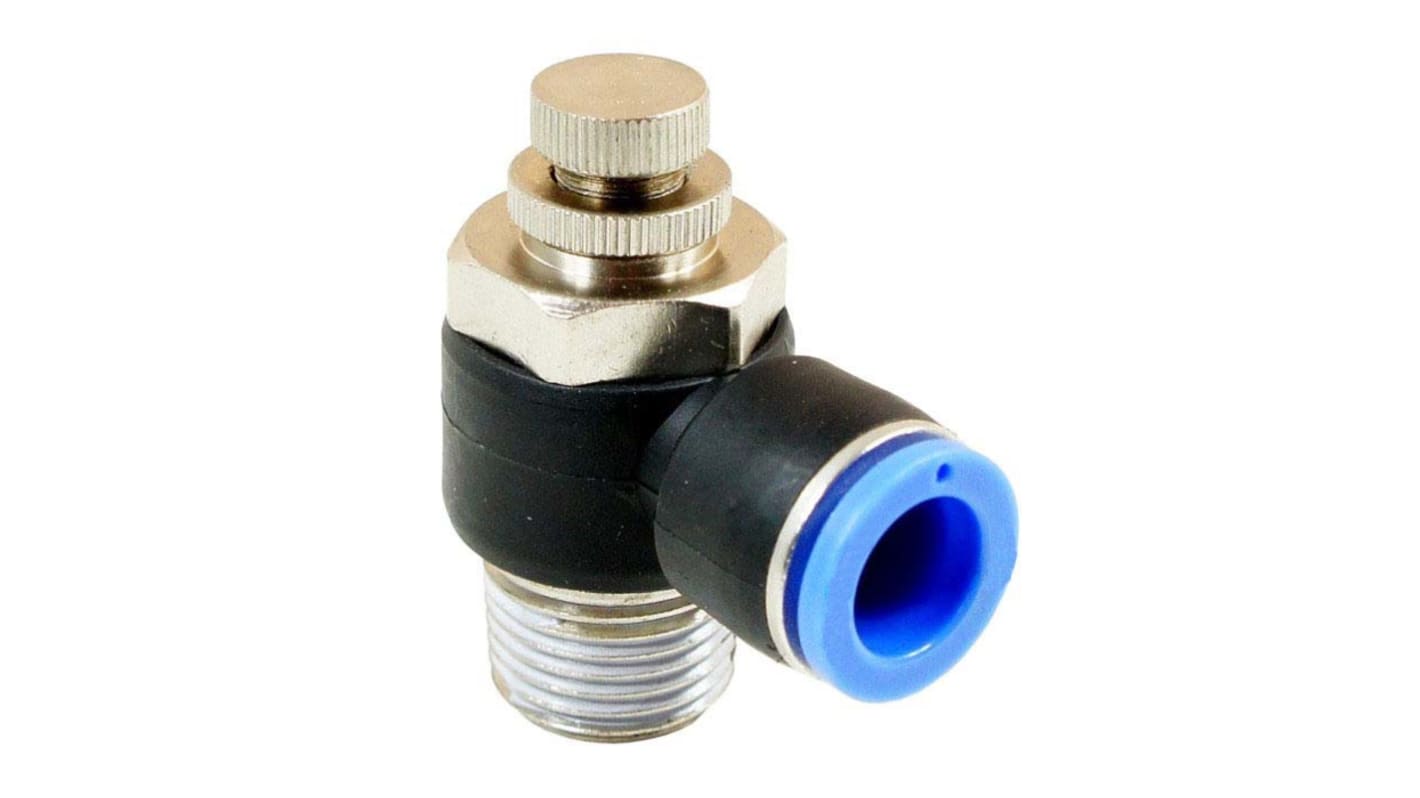

RS PRO Threaded Speed Controller, M5 Inlet Port x 4mm Tube Outlet Port
- RS Stock No.:
- 144-2657
- Brand:
- RS PRO
15 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price 1 Bag of 10
£39.86
(exc. VAT)
£47.83
(inc. VAT)
| Bag(s) | Per Bag | Per unit* |
| 1 + | £39.86 | £3.986 |
| *price indicative | ||
- RS Stock No.:
- 144-2657
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS Pro Flow Regulators
Features and Benefits
• Accurate regulation of an optimal airflow rate for precise motion control
• Compact design provides comparable range of speed to larger ones
• Control out and control in types are available for all models
• All PT and NPT threads are sealant pre-coated
• Applicable fluid type, air (no other type of gas or liquid)
• Working pressure range 0 to 150 psi
• Working temperature range 0 to 60 °C
• Compact design provides comparable range of speed to larger ones
• Control out and control in types are available for all models
• All PT and NPT threads are sealant pre-coated
• Applicable fluid type, air (no other type of gas or liquid)
• Working pressure range 0 to 150 psi
• Working temperature range 0 to 60 °C
Specifications
Attribute | Value |
|---|---|
| Type | Flow Controller |
| Inlet Port Type | Threaded |
| Threaded Inlet Port | M5 |
| Tube Outlet Port | 4mm |
| Minimum Outlet Pressure | 0 kgf/cm², 0 kPa |
| Maximum Outlet Pressure | 9.9 kgf/cm², 990 kPa |
| Threaded Inlet Thread Gender | Male |
| Threaded Inlet Thread Standard | Metric |
| Threaded Inlet Thread Size | M5 |
